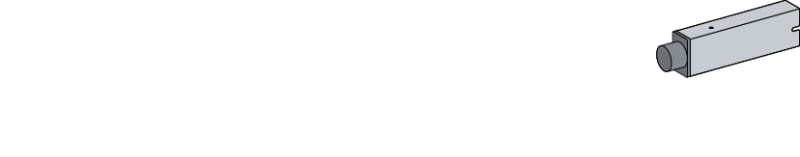

Flexible 40A 0,5M BusWhite

Schneider Electric KBA40DF405TW Flexible 40A 0,5M 3L+N TW.

Manufacturer part number (MPN)

KBA40DF405TW

EAN / GTIN

3606480000324

Sales unit

pcs

Package quantity

10 pcs

Rated current

40 A

Range of product

Canalis

Product name

KBA

Offer type

Control system

Product or component type

Flexible element

Busbar description

Flexible length

Device application

Lighting; Power socket distribution

Direction change type

3 dimensions

[Ie] rated operational current

40 A at 35 °C; 25 A

[Ue] rated operational voltage

230...400 V

Network frequency

50/60 Hz

Number of circuits

1

Busbar trunking polarity

3L + N + PE

Control type

Communicating

Communication port protocol

DALI; KNX

Colour

White (RAL 9003)

mounting mode

By clips

Thermal stress limit

900 kA².s

Maximum radiated magnetic field

2 pT

[Uimp] rated impulse withstand voltage

4 kV

[Ui] rated insulation voltage

690 V

[Icw] rated short-time withstand current

0.94 kA

[Ipk] rated peak withstand current

9.6 kA

THDI

0…15 % 40 A; 15…33 % 32 A; 33…100 % 28 A

Length

0.5 m

Depth

30 mm

Height

46 mm

Product weight

50 g

Standards

IEC 61439-1; IEC 61439-6

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK06 conforming to IEC 62262

Ambient air temperature for operation

0…35 °C without derating

Number of Units in Package 1

1

Number of Units in Package 2

80

Country of origin

FR

Warranty (in months)

18

Width

30 mm

Model

Single

Flexible

Yes

RAL-number

9003

Number of conductors (without earthing)

4

Number of poles

5

Degree of protection (IP)

IP55

Rated voltage AC 50 Hz

230–400 V

Rated current AC 50 Hz

40 A

HS Code

8536.90

• EAN 3606480000324
• SAP 1000470751
• Code 8932318
