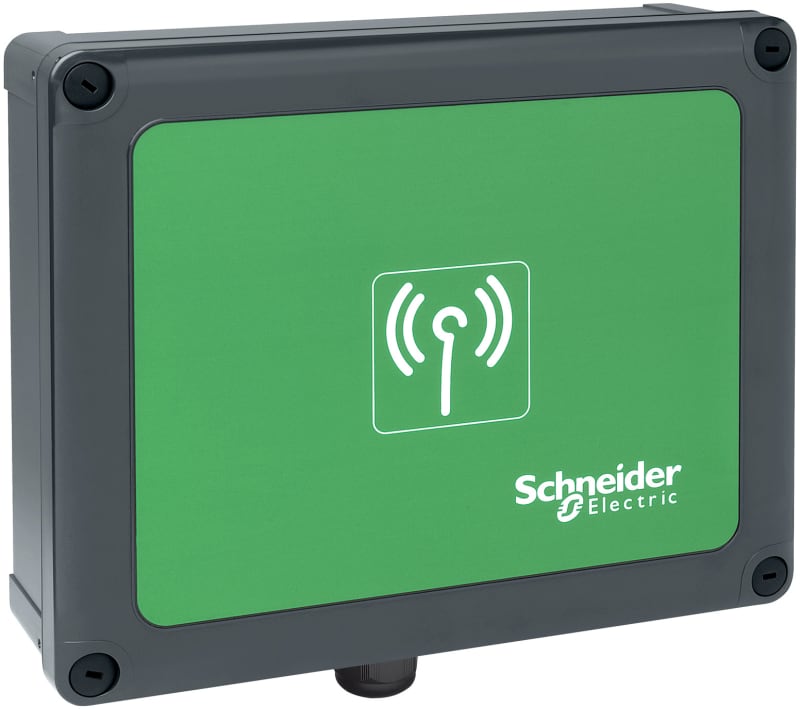

Schneider Electric Base station eXLhoist standard, 18 relays outputs, cable gland, 24...240 V AC/DC ZARB18W
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZARB18W Base station, 18R CABLE GLAND.
Technical Specifications
- Manufacturer part number (MPN)
- ZARB18W
- EAN / GTIN
- 3606480610400
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range of product
- Harmony eXLhoist
- Product or component type
- Base station
- Device short name
- ZARB
- Product specific application
- Material handling; Hoisting applications
- cable entry
- Cable gland
- Material
- PC (polycarbonate)
- [Us] rated supply voltage
- 24...240 V AC/DC
- Vibration resistance
- 0.075 mm (f = 10…55 Hz)
- Shock resistance
- 15 gn 11 ms
- Provided equipment
- Internal antenna
- Nominal output current
- 0.54 A at 48 V AC conforming to IEC 60947-5-1
- Number of relays
- 18
- Relay type
- Motion relay outputs with 9 NO contact ; Auxiliary relay outputs with 7 NO contact ; Auxiliary relay outputs with 2 NC + 2 NO contact
- Safety outputs
- 2 NC relay outputs
- Switching capacity in VA
- 5 VA DC; 26 VA AC
- Maximum switching current
- 6.8 mA
- Maximum switching voltage
- 240 V AC/DC (+ 20 %)
- Communication network type
- Wireless: bluetooth low energy
- Transmission frequency
- 2.4 GHz
- Maximum sensing distance
- 100 m in free field
- Number of channels
- 40
- fixing mode
- 4 holes
- Electrical durability
- 100000 cycles
- Mechanical durability
- 1000000 cycles
- Number of alarms
- 6 programmable alarms
- Number of inputs
- 12
- service life
- 10 year(s)
- Width
- 280 mm
- Height
- 305 mm
- Depth
- 100 mm
- Product weight
- 1.45 kg
- IP degree of protection
- IP65
- NEMA degree of protection
- NEMA 4
- Pollution degree
- 3
- Electromagnetic compatibility
- Resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2; Resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2; Resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3
- Standards
- IEC 61000-6-2
- Radio agreement
- SRRC; FCC; ANATEL; ICASA; RSS; ARIB
- Relative humidity
- 0…97 %
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Product certifications
- CSA; CE; UL; KC; C-Tick; EAC
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606480610400
- SAP 1000648334
- Code 8624534
