Push-Button Head Green TRANSP.F/E

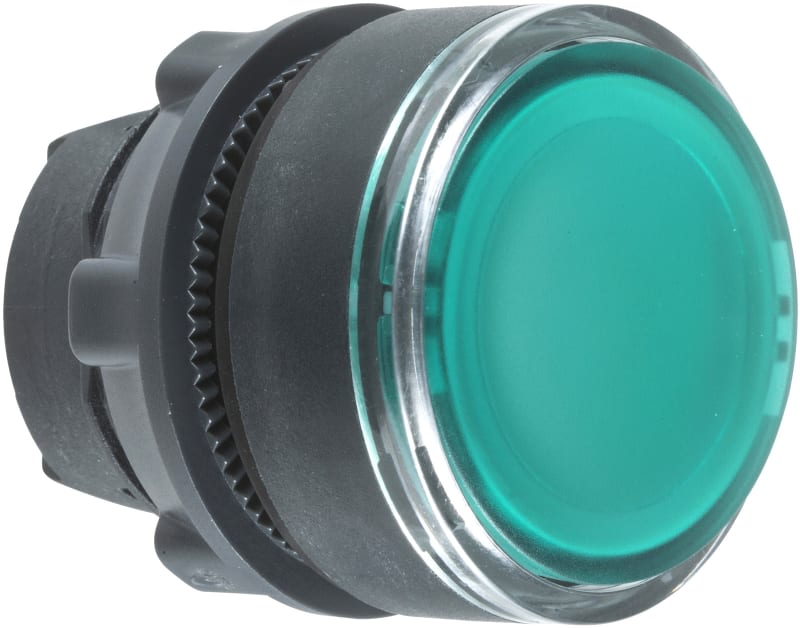

Schneider Electric ZB5AA38 — Head for illuminated push button, Harmony XB5, plastic, green flush, 22mm, universal LED, for insetion of legend.

Manufacturer part number (MPN)

ZB5AA38

EAN / GTIN

3389110904666

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Head for illuminated push-button

Device short name

ZB5

Product compatibility

Universal LED

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Green flush, unmarked

Operator additional information

For insertion of legend

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

30 mm

Product weight

0.018 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

10000000 cycles

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Cap/operator or lens colour

Green

Marking

Unmarked

Electrical composition code

M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED; MF1 for <2 contacts using single blocks in front mounting with integral LED; MR1 for <2 contacts using single blocks in rear mounting with integral LED; C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C14 for <2 contacts using single blocks in front mounting; SF2 for <2 contacts using single blocks in front mounting; SR2 for <2 contacts using single blocks in rear mounting

Device presentation

Basic element

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK03 conforming to IEC 62262

Standards

IEC 60947-1; JIS C8201-5-1; GB 14048.5; UL 508; CSA C22.2 No 14; IEC 60947-5-4; IEC 60947-5-1; JIS C8201-1

Product certifications

DNV; CSA; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.800 cm

Package 1 Width

3.400 cm

Package 1 Length

5.400 cm

Package 1 Weight

21.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

150

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.597 kg

Unit Type of Package 3

P06

Number of Units in Package 3

1200

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

39.404 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Green

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Black

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90

• EAN 3389110904666
• SAP 1000064638
• Code 8902741
