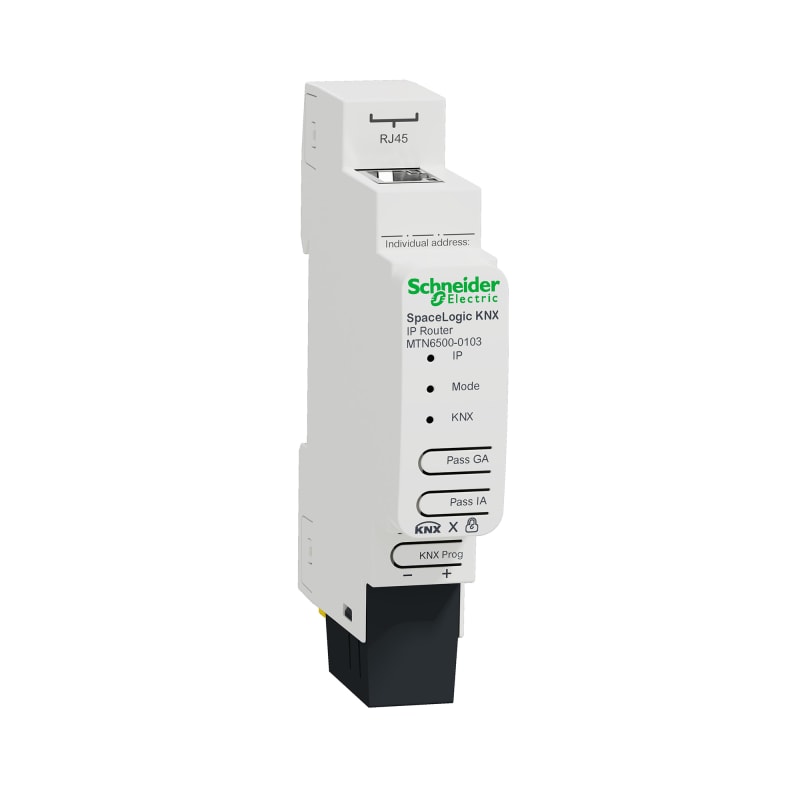

Schneider Electric SpaceLogic KNX IP Router DIN Rail, Supply KNX 20 mA MTN6500-0103
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MTN6500-0103 — SpaceLogic KNX IP Router DIN Rail, Supply KNX 20 mA.
Technical Specifications
- Manufacturer part number (MPN)
- MTN6500-0103
- EAN / GTIN
- 3606489917845
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range of product
- SpaceLogic KNX
- Range
- SpaceLogic KNX
- Product or component type
- IP router
- Bus type
- KNX
- Market segment
- Commercial; Residential
- Power supply input current
- 20 mA
- Function available
- Supports KNX Secure
- Material
- PC
- Control type
- 2 push-buttons
- Local signalling
- 3 LEDs
- Software type
- Updatable software
- Communication network type
- Ethernet RJ45
- Communication port protocol
- Ethernet TCP/IP; KNX; UDP/IP; KNX IP security; KNX data security; KNX long frame; ARP; ICMP; IGMP V2
- Transmission rate
- 10/100 Mbit/s
- Connections - terminals
- Ethernet: RJ45 connector; KNX: BUS
- total number of 18 mm modules
- 1
- Mounting support
- DIN rail
- [Ue] rated operational voltage
- 24 V
- Relative humidity
- 5…93 %
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- -5…45 °C
- Standards
- EMC directive; EN 50491-3; EN 50491-5-2; EN 50491-5-3; EN 61000-6-2; EN 61000-6-3; EN 50581 : 2012
- IP degree of protection
- IP20
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.000 cm
- Package 1 Width
- 7.000 cm
- Package 1 Length
- 9.500 cm
- Package 1 Weight
- 90.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 60
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 6.030 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Ethernet interface
- Operating voltage
- 24 V
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Width in number of modular spacings
- 1
- Other bus systems
- None
- Bus system LON
- No
- Demounting protection
- No
- Radio interface
- No
- IR interface
- No
- Protocol
- TCP/IP
- Provider dependent
- No
- Updateable
- Yes
- Visualization
- No
- Web-Server
- No
- Degree of protection (IP)
- IP20
- With LED indication
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606489917845
- SAP 1200422284
- Code 82450868
Product Documentation
