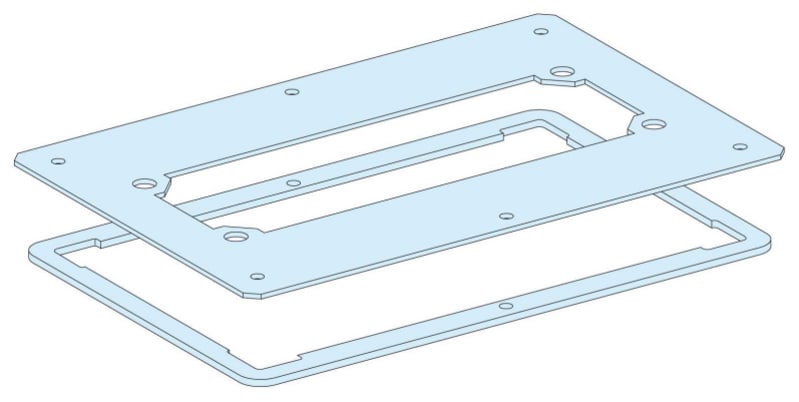

Gland Plate for FL21-PRISMASETG-IP55
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08876 — CUT-OUT PLATE/FL21 GLAND PLATE G IP55.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08876
- EAN / GTIN
- 3606481879455
- Sales unit
- pcs
- IP rating
- IP55
- Range of product
- PrismaSeT G
- Range
- PrismaSeT
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Product or component type
- Support gland plate
- Accessory / separate part category
- Enclosure accessory
- Product compatibility
- IP55 enclosure
- Enclosure/cubicle description
- Wall-mounted enclosure - width 600 mm; Floor-standing enclosure - width 600 mm; Wall-mounted duct - width 300 mm; Floor-standing duct - width 300 mm
- Material
- Metal
- Quantity per set
- Set of 1
- Depth
- 180 mm
- Product weight
- 0.48 kg
- Surface finish
- Textured; Matt
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- IP degree of protection
- IP55
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 27.500 cm
- Package 1 Length
- 30.000 cm
- Package 1 Weight
- 605.000 g
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 72
- Package 2 Height
- 40.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 57.560 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 300 mm
- Model
- Blind
- Thickness
- 2 mm
- Surface protection
- Powder coating
- Pre-stamping
- No
- Thread type
- Metric
- Degree of protection (NEMA)
- 3
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481879455
- SAP 1200547409
- Code 82879073
Product Documentation
