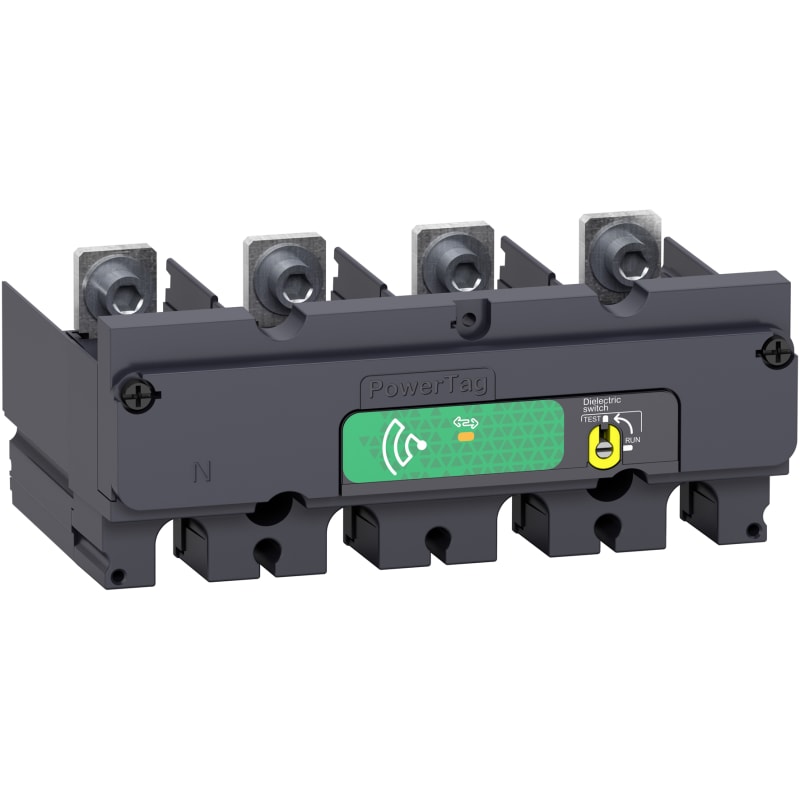

Schneider Electric Energy Sensor PowerTag NSX - 250 A - 3P+N LV434021

Schneider Electric LV434021 PowerTag for NS/NSX circuit breaker and INS/INV switch-disconnector 250A 3P + N.

Manufacturer part number (MPN)

LV434021

EAN / GTIN

3606485467023

HS code

8536.90

Sales unit

pcs

Package quantity

4 pcs

Rated current

250 A

Number of poles

3P+N

Range of product

PowerLogic

Product name

PowerTag M250

Product or component type

Energy sensor

Poles

3P + N

Maximum current [Imax]

250 A

[Ib] Basic current

40 A

Starting current

160 mA

Saturation current

500 A

Product specific application

Energy management; Overload alarm; Power factor; Load monitoring; Circuit monitoring

Concentrator compatibility

EcoStruxure Panel Server Entry; EcoStruxure Panel Server Universal; EcoStruxure Panel Server Advanced; Harmony Hub; Acti9 Smartlink SI B; Acti9 Smartlink SI D; Acti9 PowerTag Link; Acti9 PowerTag Link HD

Range compatibility

ComPacT ComPacT NSX NSX100; ComPacT ComPacT NSX NSX250; ComPacT Compact INV Interpact INV100; ComPacT Compact INV Interpact INV250; Compact NS Compact NS100; Compact NS Compact NS250; ComPacT ComPacT INS INS250; EasyPact EasyPact CVS100; EasyPact EasyPact CVS160; EasyPact EasyPact CVS250

Type of measurement

Active and reactive energy; Active and reactive power; Apparent power; Current; Voltage; Power factor

Accuracy class

Class 1 active energy conforming to IEC 61557-12; Class 2 reactive energy conforming to IEC 61557-12; Class 1 active power conforming to IEC 61557-12; Class 2 reactive power conforming to IEC 61557-12; Class 2 apparent power conforming to IEC 61557-12; Class 1 current conforming to IEC 61557-12; Class 0.5 voltage conforming to IEC 61557-12; Class 1 power factor conforming to IEC 61557-12

Metering type

Power factor 0...1: class 1 at 25 °C conforming to IEC 61557-12; Active energy Ep IN/OUT/tot 0...281 x 10exp(9) kWh: class 1 at 25 °C conforming to IEC 61557-12; Reactive energy Ep IN/OUT/tot 0...281 x 10exp(9) kVARh: class 2 at 25 °C conforming to IEC 61557-12; Voltage U12, U23, U31 320...480 V: class 0.5 at 25 °C conforming to IEC 61557-12; Voltage V1N, V2N, V3N 184...276 V: class 0.5 at 25 °C conforming to IEC 61557-12; Current I1, I2, I3, Iavg 8...250 A: class 1 at 25 °C conforming to IEC 61557-12; Apparent power S, S1, S2, S3 88 VA...416 kVA: class 2 at 25 °C conforming to IEC 61557-12; Active power P, P1, P2, P3 88 W...416 kW: class 1 at 25 °C conforming to IEC 61557-12; Reactive power Q, Q1, Q2, Q3 88 VAR...416 kVAR: class 2 at 25 °C conforming to IEC 61557-12; Frequency 45...65 Hz

Mounting location

Bottom

Mounting support

On circuit breaker

Connection pitch

35 mm

Product destination

Switchboard

Event management

Voltage loss with measured current at voltage loss

Transmission support medium

Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4 (11…26) transmission time < 5 ms

Emission power

10 mW

[Imp] maximum permanent current

1.2 x In

Form factor

Monoconnect

Mounting mode

Bolt-on

Tightening torque

10 N.m

supply voltage

230 V AC, +/- 20 %, between phase and neutral; 400 V AC, +/- 20 %, between phases

Network frequency

50 Hz; 60 Hz

Maximum power consumption

3.7 VA

Standards

IEC 61557-12; IEC 61010-1; ETSI EN 301 489-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328

Product certifications

IEC; DNV Marine

Height

57 mm

Width

140 mm

Depth

86 mm

Product weight

300 g

Colour

Dark grey (RAL 7016)

Quality labels

CE

Directives

2014/53/EU - radio equipment directive

Operating altitude

0...2000 m

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Overvoltage category

IV conforming to IEC 61010-1

Measurement category

Category III conforming to IEC 61010-2-030

IP degree of protection

IP20

IK degree of protection

IK07 conforming to IEC 60068-2-75 test Ehb

Pollution degree

3

Relative humidity

0…95 % at 55 °C conforming to IEC 60721-3-3

Vibration resistance

3M4 conforming to IEC 60721-3-3

Electromagnetic compatibility

Industrial electromagnetic environment conforming to IEC 61326-1; Radiated EMC conforming to ETSI EN 301 489-17; Electromagnetic emission conforming to IEC 62311

environmental characteristics

Indoor use

Country of origin

RO

Warranty (in months)

18

HS Code

8536.90

• EAN 3606485467023
• SAP 1200236794
• Code 82207555
