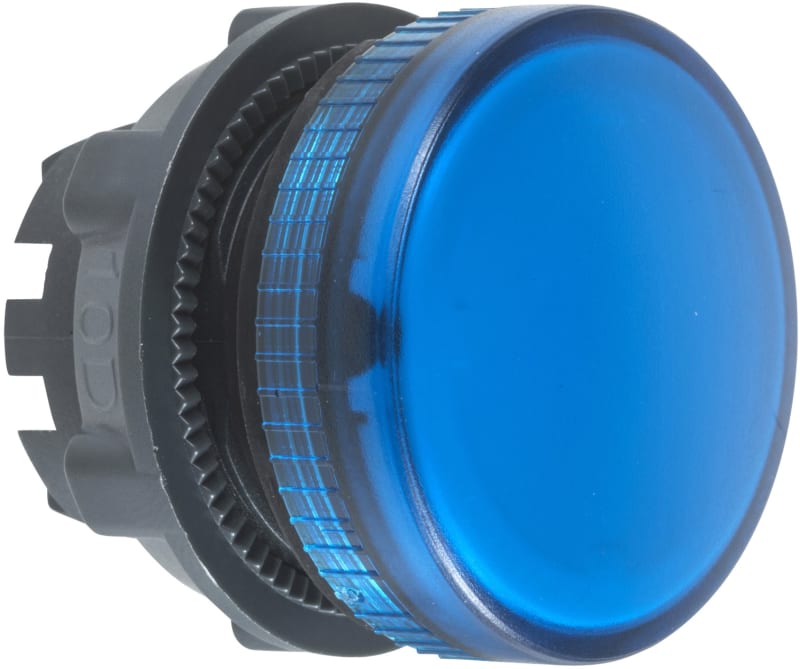

Pilot Light Head BLUE FOR BA9S (ZB5AV06)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZB5AV06 Indicator lamp Blue For BA9S.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AV06
- EAN / GTIN
- 3389110908138
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range of product
- Harmony XB5
- Product or component type
- Head for pilot light
- Product compatibility
- BA 9s
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Cap/operator or lens colour
- Blue
- Operator additional information
- With plain lens
- CAD overall width
- 29 mm
- CAD overall height
- 29 mm
- CAD overall depth
- 31 mm
- Product weight
- 0.018 kg
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- P3 in front mounting with BA 9s; P4 in front mounting with BA 9s and transformer; PF2 in front mounting with BA 9s
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class II conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653
- Enclosure Type
- UL type 4X/13
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- IK degree of protection
- IK05 conforming to IEC 50102
- Standards
- IEC 60947-1; IEC 60947-5-4; JIS C8201-5-1; IEC 60947-5-5; UL 508; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-1
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 300
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour lens
- Blue
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP66
- Width opening
- 29 mm
- Height opening
- 29 mm
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Suitable for number of built-in signal lights
- 1
- Type of lens
- High
- Degree of protection (NEMA)
- 4X, 13
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 3389110908138
- SAP 1000048775
- Code 8724749
