Converter In/ 0-500V- U/ V+mA

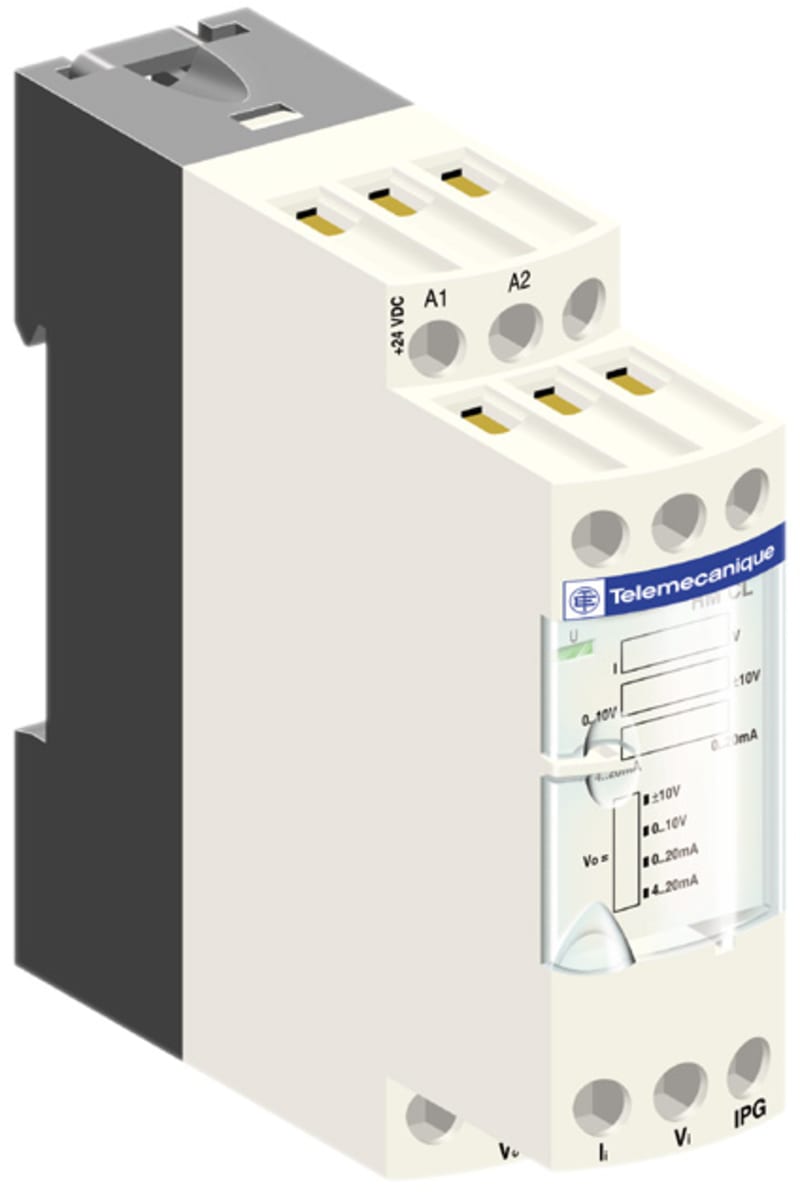

Schneider Electric RMCV60BD Converter In/ 0-500V- U/ V+mA.

Manufacturer part number (MPN)

RMCV60BD

EAN / GTIN

3389110108910

Sales unit

pcs

Package quantity

47 pcs

Range of product

Harmony Analog

Product or component type

Voltage/current converter

Analogue input type

Voltage 0...300 V AC/DC 50/60 Hz; Voltage 0...50 V AC/DC 50/60 Hz; Voltage 0...500 V AC/DC 50/60 Hz

Analogue output type

Current 0...20 mA = 100 kOhm switchable

Protection type

Short-circuit protection on output; Reverse polarity protection on output; Overvoltage protection on output (+/- 30 V)

abnormal analogue output voltage

-15...0 V no input or input wire broken

abnormal analogue output current

-30…0 mA, output selected 0...20 mA no input or input wire broken; 4…30 mA, output selected 4...20 mA no input or input wire broken

[Us] rated supply voltage

24 V DC +/- 20 %, isolated

Current consumption

<= 70 mA for voltage output; <= 90 mA for current output

Local signalling

LED (green) for power ON

Tightening torque

0.6…1.1 N.m

Marking

CE

Surge withstand

0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5

[Ui] rated insulation voltage

2 kV

Fixing mode

By screws (mounting plate); Clip-on (35 mm symmetrical DIN rail)

Safety reliability data

MTTFd = 21.6 years; B10d = 20000

Product weight

0.15 kg

Standards

IEC 60584-1; IEC 60947-1

Product certifications

UL; GL; CSA

Fire resistance

850 °C conforming to IEC 60695-2-1; 850 °C conforming to UL

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 10…100 Hz) conforming to IEC 60068-2-6

Resistance to electrostatic discharge

6 kV (in contact) conforming to IEC 61000-4-2 level 3; 8 kV (in air) conforming to IEC 61000-4-2 level 3

Resistance to fast transients

1 kV (on input-output) conforming to IEC 61000-4-4; 2 kV (on power supply) conforming to IEC 61000-4-4

Disturbance radiated/conducted

CISPR 11; CISPR 22 group 1 - class B

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

0…50 °C mounting side by side; 0…60 °C 2 cm spacing

Pollution degree

2 conforming to IEC 60664-1

Number of Units in Package 1

1

Number of Units in Package 2

47

Number of Units in Package 3

752

Country of origin

ID

Warranty (in months)

18

Primary voltage 1

0–50 V

Primary voltage 2

0–300 V

Primary voltage 3

0–500 V

Secondary voltage 1

10 V

Number of phases

1

Degree of protection (IP)

IP20

Ring core

No

Suitable for mounting on PCB

No

Suitable for distribution board

Yes

Width

31 mm

Height

78 mm

Depth

80 mm

HS Code

8543.70
