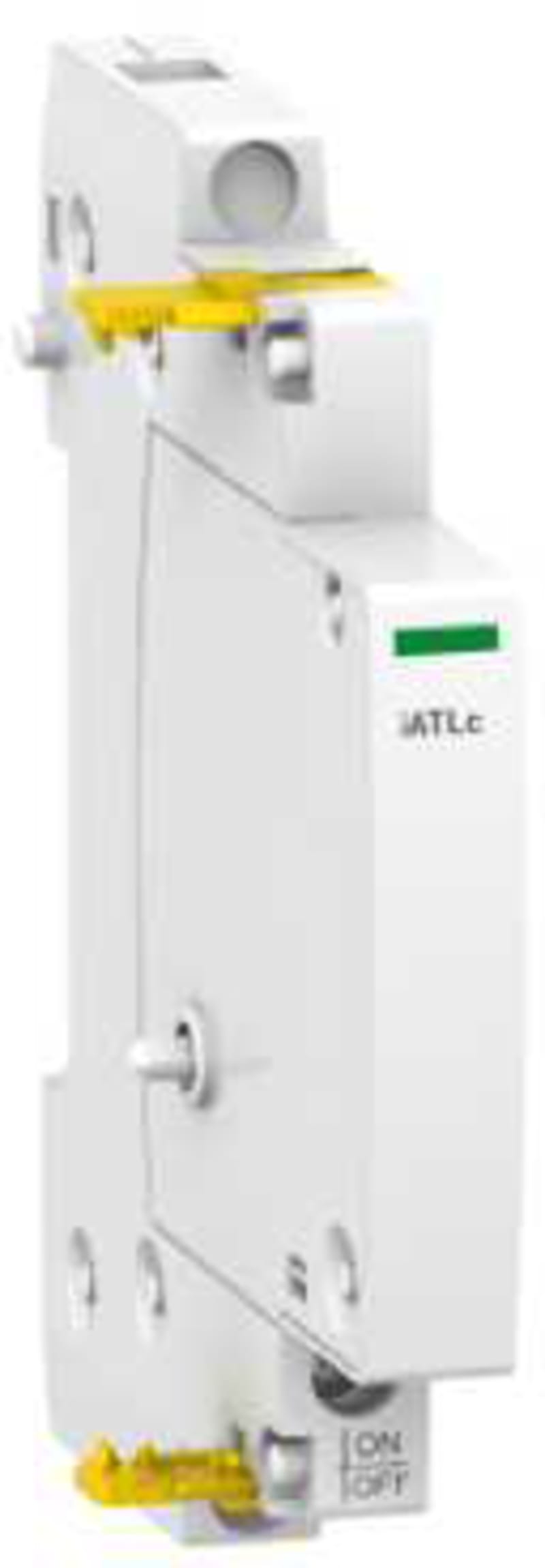

Schneider Electric ACTI9 centralized control iATLc A9C15404

Schneider Electric A9C15404 Auxiliary block iATLc for sentral control of iTL.

Manufacturer part number (MPN)

A9C15404

EAN / GTIN

3606480374883

Sales unit

pcs

Package quantity

12 pcs

range of product

Acti9

Device short name

iATLc

Product or component type

Centralized control auxiliary

[Uc] control circuit voltage

24...240 V AC 50/60 Hz impulse

[Ui] rated insulation voltage

440 V

[Uimp] rated impulse withstand voltage

4 kV

Remote control type

2 entries for switch

mounting mode

Fixed, on right side of TL

Mounting support

DIN rail

9 mm pitches

1

Height

81 mm

Width

9 mm

Depth

69 mm

Colour

White

Connections - terminals

Tunnel type terminals0.5…4 mm² - rigid; Tunnel type terminals0.5…4 mm² - rigid - with cable end; Tunnel type terminals1…4 mm² - flexible; Tunnel type terminals1…4 mm² - flexible - with cable end

Wire stripping length

11 mm

Tightening torque

1 N.m

Range compatibility

Acti9 iTL; Acti9 iTLi; Acti9 iTLs

Product compatibility

ITL (32 A); ITL (16 A)

Overvoltage category

III

IP degree of protection

IP20 conforming to IEC 60529

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-40…70 °C

Standards

EN/IEC 60669-2-2

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

108

Warranty (in months)

18

Voltage type

AC

Rated voltage

240 V

Installed at the factory

No

Width in number of modular spacings

0.5

Device fitting

Contactor/relay

Voltage type for actuating

AC

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

32 A

Country of origin

Belgium

HS Code

8536.50
