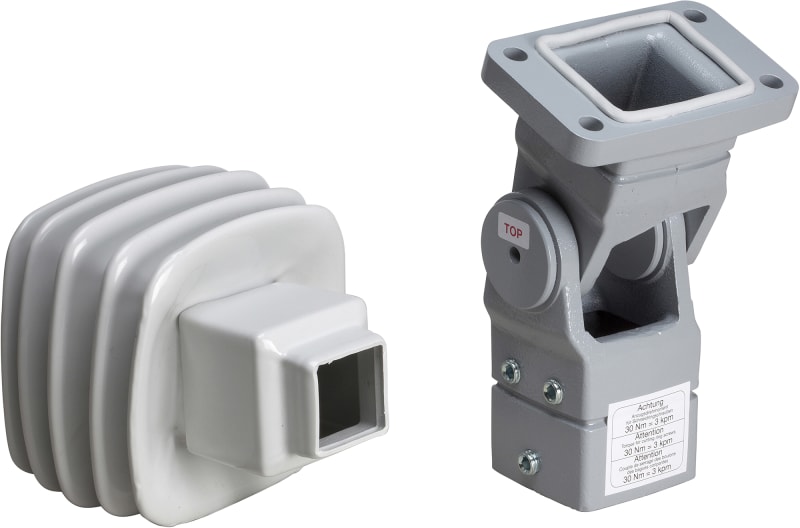

Angle and Wall bracket 50X50
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCMUMA50 Angle and Wall bracket 50X50.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCMUMA50
- EAN / GTIN
- 3606480213021
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Fixing on support
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Between tube and support
- Mounting support
- Option of passing cables through the inside; For 50 mm square tube
- Range compatibility
- PanelSeT S3CM
- Device composition
- fixing elements; 1 bellow; 1 fixing and rotating bracket
- Quantity per set
- Set of 1
- Material
- Moulded steel
- Colour
- Bracket: grey (RAL 7040); Bellow: grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By fixing element - screw type M12 - horizontal tube location ; By 4 screws - screw type M11 - on support location
- Operating angle
- 170 °
- Permanent permissible load
- 4.35 kg
- Height
- 148 mm
- Width
- 148 mm
- Depth
- 210 mm
- Product weight
- 4.6 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 18.000 cm
- Package 1 Width
- 25.000 cm
- Package 1 Length
- 25.000 cm
- Package 1 Weight
- 4.682 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 20
- Package 2 Height
- 49.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 107.000 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Model
- Component for supporting bracket
- Max. load capacity
- 4.35 kg
- RAL-number
- 7040
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 3606480213021
- SAP 1200500812
- Code 82623875
