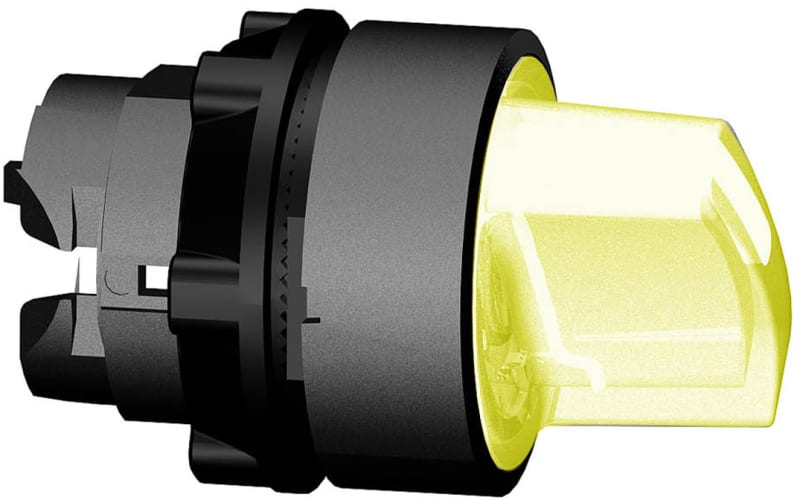

Selector switch with LIGHT 3ST.YELLOW LED (ZB5AK1353)

Schneider Electric ZB5AK1353 Selector switch With Light 3 Fixed positionsYellow.

Manufacturer part number (MPN)

ZB5AK1353

EAN / GTIN

3389110906134

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Head for illuminated selector switch

Product compatibility

Universal LED

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

stay put

Operator profile

Orange standard handle

Operator position information

3 positions +/- 45°

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

43 mm

Product weight

0.016 kg

Mechanical durability

500000 cycles

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Electrical composition code

M3 for <4 contacts using single blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED; MF1 for <2 contacts using single blocks in front mounting with integral LED; MR1 for <2 contacts using single blocks in rear mounting with integral LED; M4 for <4 contacts using single and double blocks in front mounting with integral LED

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK04 conforming to IEC 50102

Standards

EN/IEC 60947-5-5; CSA C22.2 No 14; EN/IEC 60947-5-4; JIS C8201-5-1; EN/IEC 60947-1; EN/IEC 60947-5-1; UL 508; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.2 cm

Package 1 Width

5 cm

Package 1 Length

5.2 cm

Package 1 Weight

24 g

Unit Type of Package 2

S02

Number of Units in Package 2

100

Package 2 Height

15 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

2.706 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

3

Suitable for lighting

Yes

Spring-return

No

Colour front ring

Black

Degree of protection (IP), front side

IP66

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of control element

Short rotary handle

Colour control element

Orange

Switching function latching

Yes

Degree of protection (NEMA)

13

HS Code

8538.90

• EAN 3389110906134
• SAP 1000073103
• Code 8770671
