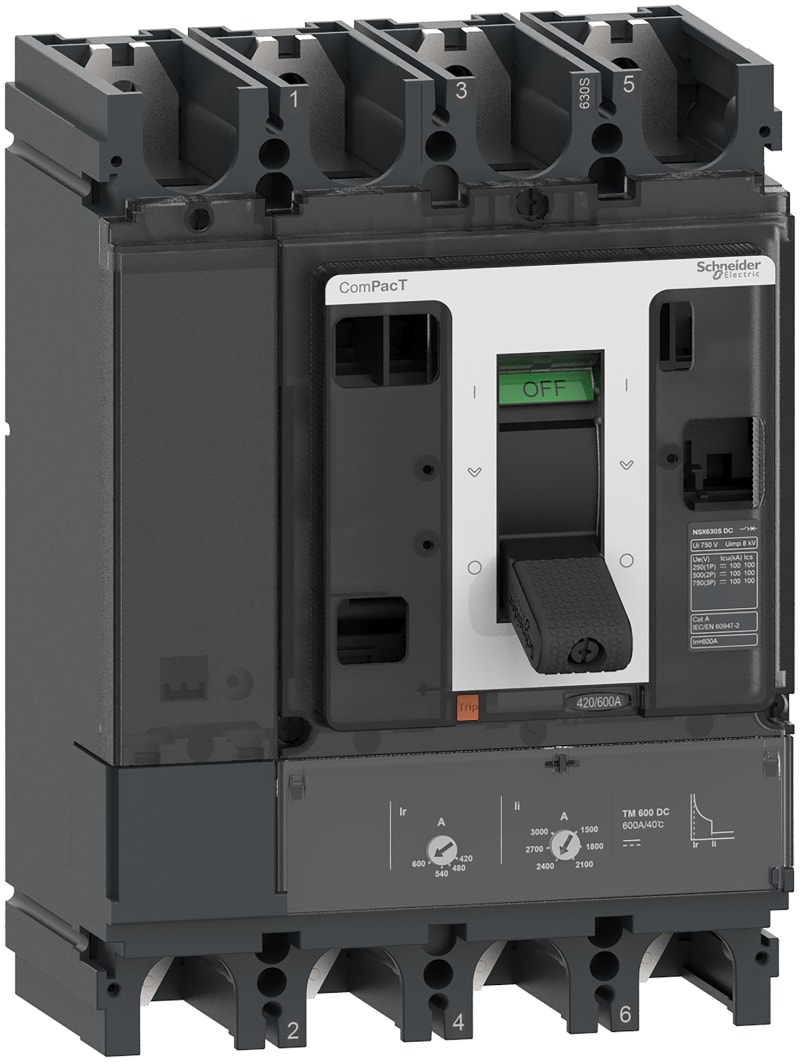

Schneider Electric circuit breaker ComPacT NSX600S DC, 100 kA at 750 VDC, TM-DC trip unit, 600 A rating, 4 poles C63S4TM600D

Schneider Electric C63S4TM600D Circuit breaker ComPacT NSX600S-TM600-DC 4p with thermomagnetic protection 600A-100kA/750VDC.

Manufacturer part number (MPN)

C63S4TM600D

EAN / GTIN

3606482003460

HS code

8536.90

Sales unit

pcs

Number of poles

4

Range

ComPacT

Product name

ComPacT NSX DC

Device short name

NSX630S DC

Product or component type

Circuit breaker

Device application

Distribution

Poles description

4P

Protected poles description

4D

Neutral position

Left

[In] rated current

600 A at 40 °C

[Ue] rated operational voltage

750 V DC

Network type

DC

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category A

Breaking capacity

100 kA Icu at 24...125 V DC 1 pole conforming to IEC 60947-2; 100 kA Icu at 250 V DC 1 pole conforming to IEC 60947-2; 100 kA Icu at 500 V DC 2 poles in series conforming to IEC 60947-2; 100 kA Icu at 750 V DC 3 poles in series conforming to IEC 60947-2

Breaking capacity code

S 100 kA 500 V DC

Trip unit name

TM-DC

Trip unit technology

Thermal-magnetic

Trip unit protection functions

LI

Control type

Toggle

Circuit breaker mounting mode

Fixed

[Ui] rated insulation voltage

750 V DC conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947-2

[Ics] rated service breaking capacity

100 kA at 24...125 V DC conforming to IEC 60947-2; 100 kA at 250 V DC conforming to IEC 60947-2; 100 kA at 500 V DC conforming to IEC 60947-2; 100 kA at 750 V DC conforming to IEC 60947-2

Mechanical durability

5000 cycles

Electrical durability

2000 cycles at 750 V In/2; 1000 cycles at 750 V In

Mounting support

Backplate

Mounting position

Horizontal and vertical; Flat on the back

Upside connection

Front

Downside connection

Front

Connection pitch

45 mm

Protection type

L : for overload protection (thermal); I : for short-circuit protection (magnetic)

Trip unit rating

600 A at 40 °C

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable

[Ir] long-time protection pick-up adjustment range

0.7...1 x In

Long-time protection delay adjustment type tr

Fixed

Instantaneous protection pick-up adjustment type Ii

Adjustable

[Ii] instantaneous protection pick-up adjustment range

2.5...5 x In

Earth-leakage protection

Without

Number of slots

6 slot(s)

Width (W)

185 mm

Height (H)

255 mm

Depth (D)

110 mm

Product weight

8.4 kg

Standards

EN/IEC 60947-2

Pollution degree

3 conforming to IEC 60664-1

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Relative humidity

0…95 %

Operating altitude

0...2000 m without derating; 2000 m...5000 m with derating

Number of Units in Package 1

1

Number of Units in Package 2

2

Number of Units in Package 3

16

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90
