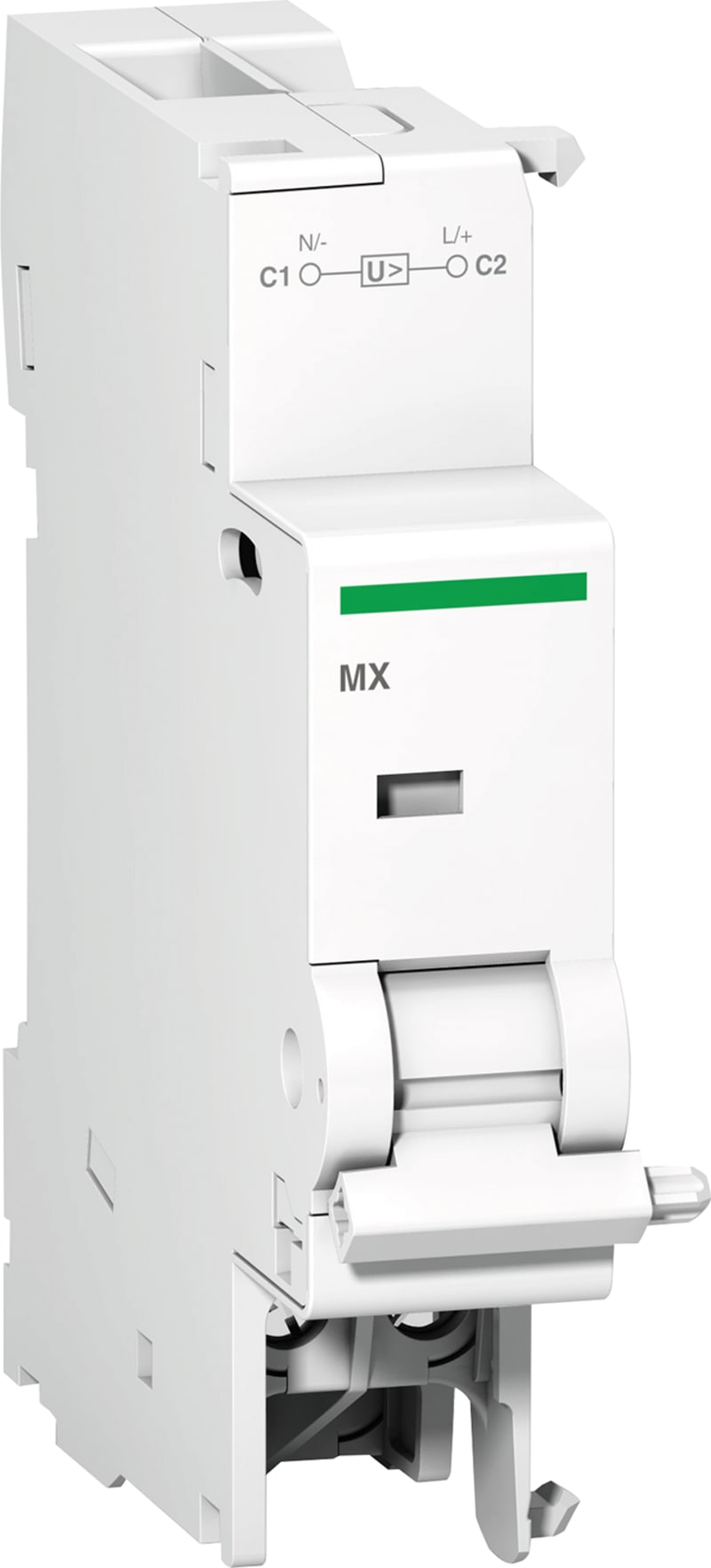

Schneider Electric MX Shunt trip 12-24VAC 12-24VDC A9N26478

Schneider Electric A9N26478 Shunt-trip release MX 12-24V AC/DC.

Manufacturer part number (MPN)

A9N26478

EAN / GTIN

3606480382918

Sales unit

pcs

Package quantity

8 pcs

Voltage

12-24 V

range of product

Acti9

Product or component type

Shunt trip release

Device short name

MX

[Uc] control circuit voltage

12...24 V AC 50/60 Hz; 12...24 V DC

9 mm pitches

2

Range compatibility

Acti9 iDPN; Acti9 C120; Acti9 C40; Acti9 C60H-DC; Acti9 C60NA-DC; Acti9 C60PV-DC; Acti9 DPN Vigi; Acti9 DT40; Acti9 DT60; Acti9 ID C40; Acti9 IDc; Acti9 ITG40; Acti9 ID; Acti9 SW60-DC

Local signalling

Action indicator

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

Comb busbar and distribution block compatibility

Top: YES

Height

82.5 mm

Width

18 mm

Depth

73.5 mm

Product weight

60 g

Colour

White

Connections - terminals

Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible; Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible with ferrule; Screw clamp terminal (bottom) - 1 cable(s) 0.5…2.5 mm² - rigid

Wire stripping length

9 mm for bottom connection

Tightening torque

1 N.m bottom

Standards

EN/IEC 60947-2

Product certifications

LCIE; KEMA; ASTA; ASEFA

Tropicalisation

2 conforming to EN/IEC 60947-2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…50 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

72

Warranty (in months)

18

Function

Shunt release (for power circuit breaker)

Voltage type

AC/DC

Rated voltage

24 V

Installed at the factory

No

Width in number of modular spacings

1

Device fitting

Miniature circuit breaker (MCB)

Additional equipment

Shunt release (for power circuit breaker)

Voltage type for actuating

AC/DC

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

125 A

Country of origin

Belgium

HS Code

8536.30

• EAN 3606480382918
• SAP 1000343822
• Code 8999788
