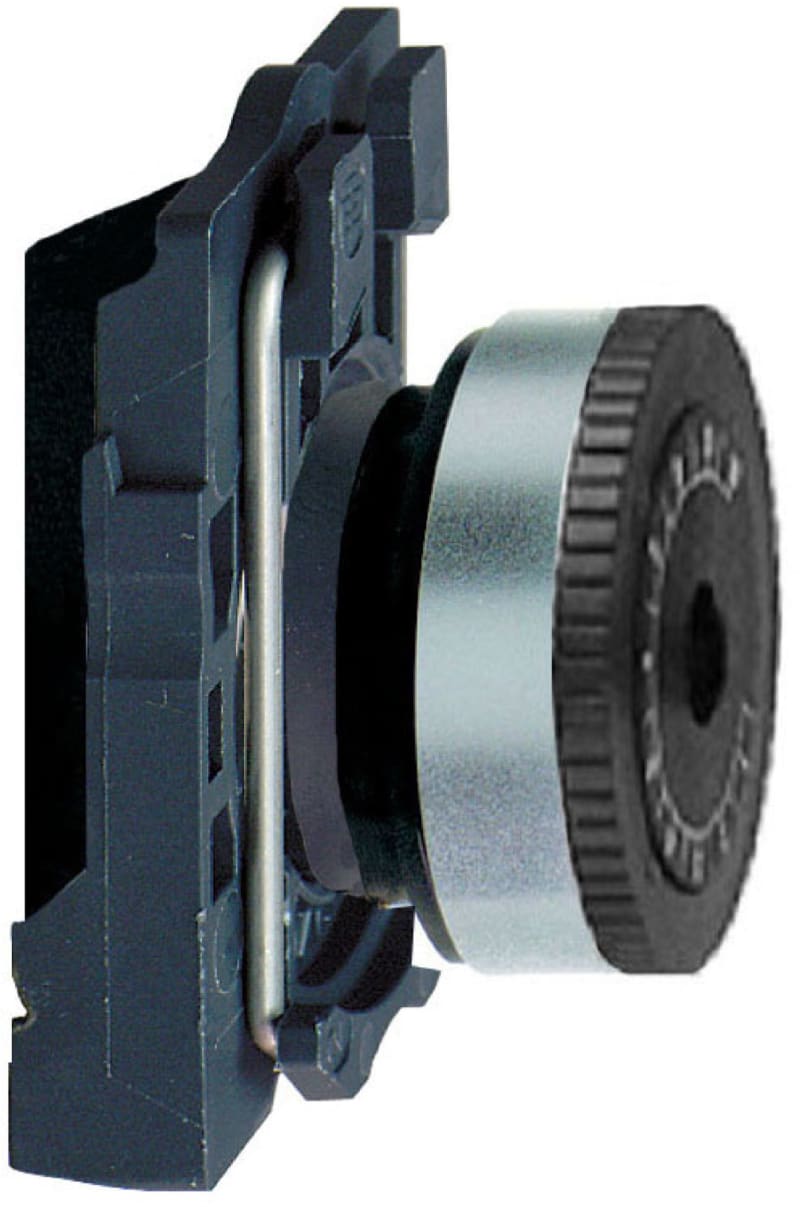

Potensiometergrep FOR (ZB5AD912)

Schneider Electric ZB5AD912 Potensiometergrep For.

Manufacturer part number (MPN)

ZB5AD912

EAN / GTIN

3389110905373

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Head + mounting base for potentiometer

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Head type

Standard

Product compatibility

For use with Ø 6 mm shaft

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Operator profile

knurled knob, with (white)

Product weight

0.032 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529

Enclosure Type

UL type 4X/13

IK degree of protection

IK03 conforming to IEC 50102

Standards

JIS C8201-5-1; IEC 60947-1; IEC 60947-5-1; UL 508; IEC 60947-5-4; IEC 60947-5-5; CSA C22.2 No 14; JIS C8201-1

Product certifications

DNV; CSA; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.600 cm

Package 1 Width

3.400 cm

Package 1 Length

5.400 cm

Package 1 Weight

33.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

80

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.007 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Spring-return

No

Colour front ring

Black

Degree of protection (IP), front side

IP66

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of control element

Turn button

Colour control element

Black

Switching function latching

Yes

Degree of protection (NEMA)

13

HS Code

8538.90

• EAN 3389110905373
• SAP 1000033206
• Code 8260286
