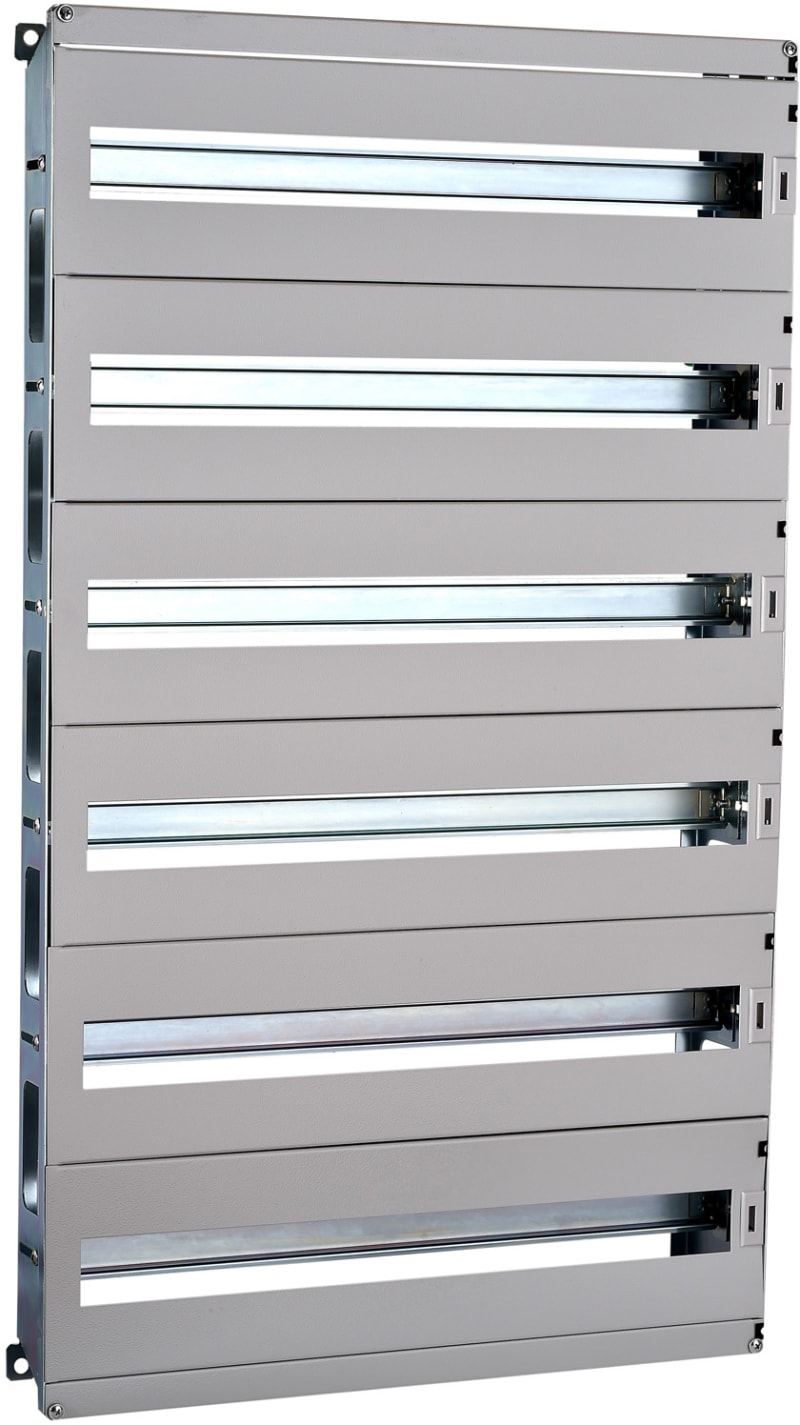

Modular frame 48M H500XW400

Modular frame 48 M H500XW400.

Manufacturer part number (MPN)

NSYDLM48 EAN / GTIN: 3606480162527 Sales unit: pcs Range: PanelSeT Accessory / separate part category: Mounting accessory Application: Multi-purpose; Modular distribution application Product or component type: Chassis Device short name: DLM For enclosure nominal dimensions: - Mounting location: Step slide; Front of enclosure Range compatibility: PanelSeT S3D; PanelSeT CRN Device composition: 1 chassis structure; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 3 front panels with 35 mm DIN rail Quantity per set: Set of 1 material: Steel Colour: Front panel: grey (RAL 7035) Surface finish: Polyester powder Fixing mode: By fixing element - on front and back with supports location Adjustment: In height from 40 to 85 mm for DIN rail Number of horizontal rows: 3 Total number of 18 mm modules: 48 Type of front plate: Plain and cut-out plates Number of cut-out: 3 cut-outs Height: 453 mm Width: 355 mm Depth: 101.5 mm Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 12.000 cm Package 1 Width: 38.000 cm Package 1 Length: 47.000 cm Package 1 Weight: 3.544 kg Unit Type of Package 2: PAM Number of Units in Package 2: 48 Package 2 Height: 118.000 cm Package 2 Width: 100.000 cm Package 2 Length: 120.000 cm Package 2 Weight: 185.000 kg Country of origin: ES Warranty (in months): 18 Type of covering: With notch Number of DIN-rails: 3 Number of modular spacings per DIN-rail: 16

HS Code

8538.10

• EAN 3606480162527
• SAP 1000470574
• Code 8114161
