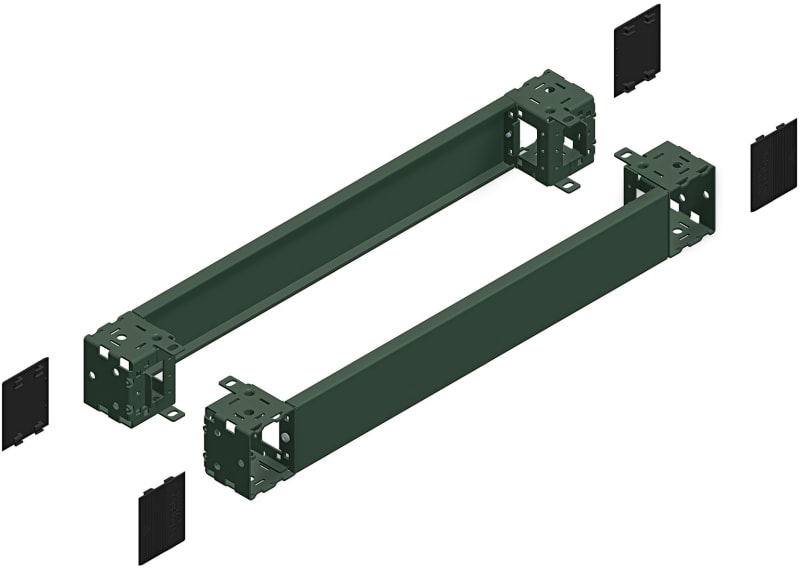

Basefront 100X1600 (NSYSPF16100)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSPF16100 Plinth Front 100x1600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSPF16100
- EAN / GTIN
- 3606485126609
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Plinth front
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Device composition
- fixing elements; 4 corner cover; 1 front panel; 1 rear panel; 4 corner
- Range compatibility
- PanelSeT SF; PanelSeT SM; PanelSeT S3D; PanelSeT CRN; PanelSeT SFN
- Mounting support
- Plinth side panels
- Fixing mode
- By fixing element - on structure location
- Colour
- Grey (RAL 7022)
- Surface finish
- Epoxy-polyester powder
- Permanent permissible load
- 1300 kg
- Height
- 100 mm
- Width
- Nominal: 1600 mm
- IP degree of protection
- IP20 (complete plinth)
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.000 cm
- Package 1 Width
- 20.500 cm
- Package 1 Length
- 161.500 cm
- Package 1 Weight
- 8.000 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 40
- Package 2 Height
- 96.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 409.500 kg
- Country of origin
- IN
- Warranty (in months)
- 18
- Model
- Base front/back
- Depth
- 1600 mm
- Max. load capacity
- 1300 kg
- Suitable for enclosure building width
- 1600 mm
- Material
- Steel
- RAL-number (similar)
- 7030
- Suitable for outdoor set-up
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485126609
- SAP 1000317645
- Code 8342600
Product Documentation
More from Schneider Electric
Schneider Electric
08003 MOUNTING PLATE 225X275 Metal
NSYAMPM2924TB
Schneider Electric
LED lamp 8mm 24V RED (XVLA234)
Schneider Electric
Schneider Electric differential thermal overload relay, TeSys K, 0.8...1.2A, class 10A LR2K0306
Schneider Electric
Modular frame 48M H500XW400
NSYDLM48
Schneider Electric
WALL-Mount Cabinet WITH PLATE. 12X10X3
NSYS3D121030P
Schneider Electric
Schneider Electric empty control station - XAP-A - plastic - without opening XAPA2100
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, 440V, 95A, 110V AC 50/60Hz coil, screw clamp terminals LC1D95F7
Schneider Electric
Schneider Electric MX shunt release, ComPacT NSX, rated voltage 12 VDC, screwless spring terminal connections LV429382
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYSPF16100?
- NSYSPF16100 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYSPF16100.
- What is the HS code for NSYSPF16100?
- The customs tariff (HS) code for NSYSPF16100 is 7326.90.
- Who manufactures NSYSPF16100?
- NSYSPF16100 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYSPF16100?
- Yes — the NSYSPF16100 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYSPF16100?
- The minimum order quantity is 1.
- Is NSYSPF16100 available?
- Yes — NSYSPF16100 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
