Product Description

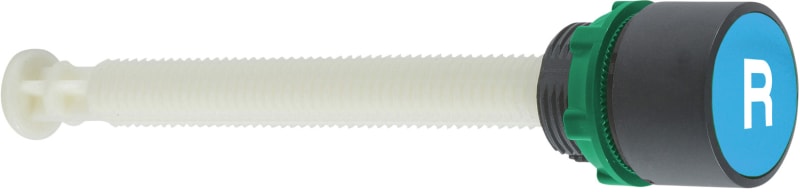

Schneider Electric XB5AA86102 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Resetknapp Mek.Blue M/R 6-16 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XB5AA86102
- EAN / GTIN
- 3389110102475
- Sales unit
- pcs
- Package quantity
- 80 pcs
- Range of product
- Harmony XB5
- Product or component type
- Manual overload reset push-button
- Device short name
- XB5
- Bezel material
- Dark grey plastic
- Fixing collar material
- Plastic
- Head type
- Standard
- Mounting diameter
- 22 mm
- Shape of signaling unit head
- Round
- Operator profile
- Blue flush, R (white)
- Activating distance
- 17…120 mm
- Device presentation
- Complete product
- Height
- 29 mm
- Width
- 29 mm
- Depth
- 120 mm
- Product weight
- 0.027 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Operating travel
- 10 mm
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Electrical shock protection class
- Class II conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529
- Enclosure Type
- UL type 4X
- IK degree of protection
- IK03 conforming to IEC 50102
- Standards
- IEC 60947-1
- Product certifications
- UL listed
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.5 cm
- Package 1 Width
- 13.0 cm
- Package 1 Length
- 5.3 cm
- Package 1 Weight
- 38.0 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 80
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 3.557 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour button
- Blue
- Suitable for lighting
- No
- Number of command positions
- 1
- Spring-return
- Yes
- Labelled
- Yes
- Type of button
- Flat
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP66
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110102475
- SAP 1000045315
- Code 8527976
