Schneider Electric

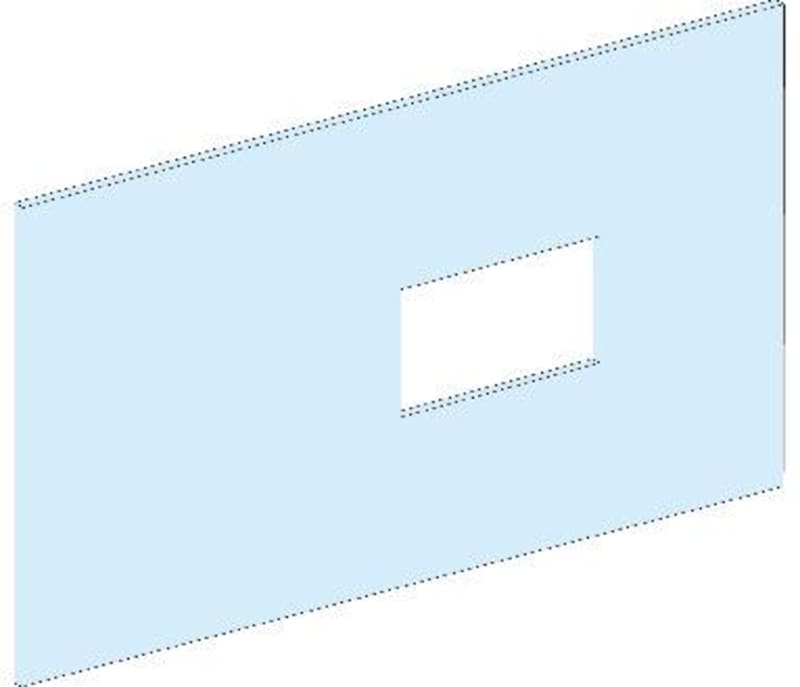

Front plate INS630 Horizontal PrismaSeT G/P
Part numberLVS03274EAN / GTIN3606481873231HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03274 Front plate for INS400/630-vertical mounting-for PrismaSeT G/P-10 modules-for 600/650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03274
- EAN / GTIN
- 3606481873231
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INS320...400 - control: direct front rotary handle - vertical installation; ComPact: fixed INS500...630 - control: direct front rotary handle - vertical installation; ComPact: fixed INV320...400 - control: direct front rotary handle - vertical installation; ComPact: fixed INV500...630 - control: direct front rotary handle - vertical installation
- Poles description
- 1 x 3P: mounting plate support: INS320...400 vertical installation; 1 x 4P: mounting plate support: INS320...400 vertical installation; 1 x 3P: mounting plate support: INS500...630 vertical installation; 1 x 4P: mounting plate support: INS500...630 vertical installation; 1 x 3P: mounting plate support: INV320...400 vertical installation; 1 x 4P: mounting plate support: INV320...400 vertical installation; 1 x 3P: mounting plate support: INV500...630 vertical installation; 1 x 4P: mounting plate support: INV500...630 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection; Linergy FC
- Number of vertical modules [50 mm]
- 10
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 500 mm
- Product weight
- 1.9 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...400 fixed direct front rotary handle vertical 3P 1 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...400 fixed direct front rotary handle vertical 4P 1 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact INS500...630 fixed direct front rotary handle vertical 3P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact INS500...630 fixed direct front rotary handle vertical 4P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact INV320...400 fixed direct front rotary handle vertical 3P 1 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact INV320...400 fixed direct front rotary handle vertical 4P 1 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact INV500...630 fixed direct front rotary handle vertical 3P 1 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact INV500...630 fixed direct front rotary handle vertical 4P 1 direct 11; 600 mm PrismaSeT G floor-standing enclosure ComPact INS320...400 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS320...400 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 10; 600 mm PrismaSeT G floor-standing enclosure ComPact INS320...400 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS320...400 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 10; 600 mm PrismaSeT G floor-standing enclosure ComPact INS500...630 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 12; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS500...630 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 12; 600 mm PrismaSeT G floor-standing enclosure ComPact INS500...630 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 12; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS500...630 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 12; 600 mm PrismaSeT G floor-standing enclosure ComPact INV320...400 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact INV320...400 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 10; 600 mm PrismaSeT G floor-standing enclosure ComPact INV320...400 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact INV320...400 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 10; 600 mm PrismaSeT G floor-standing enclosure ComPact INV500...630 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 12; 600 mm PrismaSeT G wall-mounted enclosure ComPact INV500...630 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 12; 600 mm PrismaSeT G floor-standing enclosure ComPact INV500...630 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 12; 600 mm PrismaSeT G wall-mounted enclosure ComPact INV500...630 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 12
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 51.200 cm
- Package 1 Length
- 51.200 cm
- Package 1 Weight
- 1.881 kg
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 6
- Package 2 Height
- 11.000 cm
- Package 2 Width
- 52.500 cm
- Package 2 Length
- 52.500 cm
- Package 2 Weight
- 11.605 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 72
- Package 3 Height
- 76.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 151.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 10
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481873231
- SAP 1200546641
- Code 82879504
Product Documentation
Document preview: Schneider Electric LVS03274 — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric MN undervoltage release, ComPacT NSX, rated voltage 110/130 VAC 50/60 Hz, screwless spring terminal connections LV429406
Schneider Electric
Schneider Electric XF or MX voltage release, standard, Masterpact MTZ1/2/3, 24 VAC 50/60 Hz, 24/30 VDC, spare part LV833659SP
Schneider Electric
Contact Block Faston Silver 1NO
ZB6E1B
Schneider Electric
Schneider Electric end piece Tir+ 40/40 white plastic
5427200
Schneider Electric

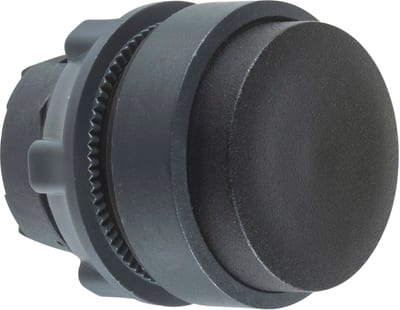

Schneider Electric ZB5AL2 Harmony XB5 Push-Button Head — Ø22 mm, Black, projecting, spring return, non-illuminated, plastic bezel
Schneider Electric
Schneider Electric Standard control unit, TeSys U, 4.5-18A, 3P motors, thermal magnetic protection, class 10, coil 24V AC LUCA18B
Schneider Electric

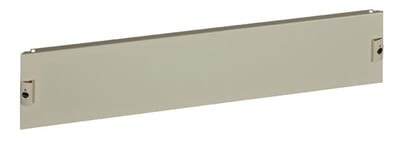

Sealed Front plate 3MOD B850MM PrismaSeT G
LVS03853
Schneider Electric

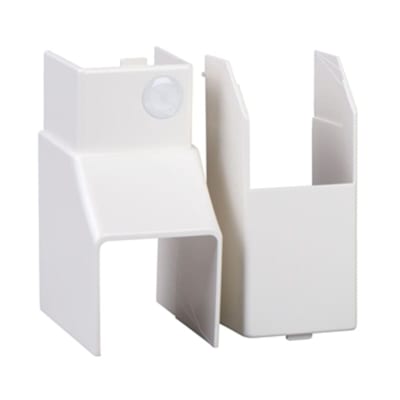

Schneider Electric Tir+ Inner Corner IH150/60 White RAL 9010
