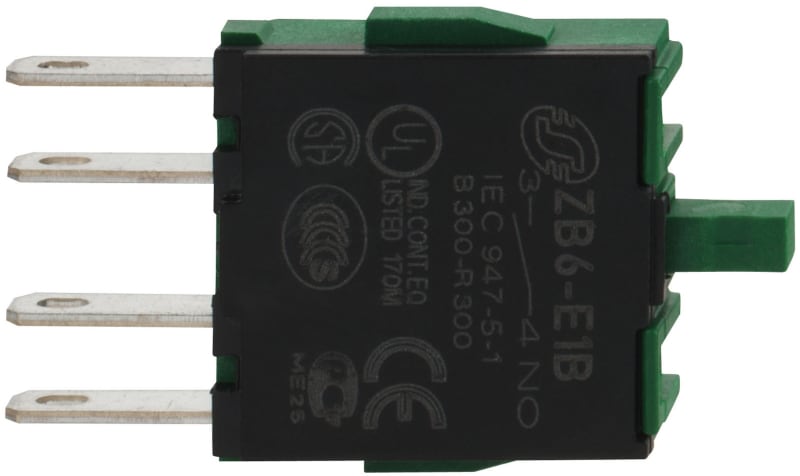

Contact Block Faston Silver 1NO

Schneider Electric ZB6E1B Control device 16mm, accessories.

Manufacturer part number (MPN)

ZB6E1B

EAN / GTIN

3389110775266

Sales unit

pcs

Package quantity

10 pcs

Contact configuration

1 NO

Range of product

Harmony XB6

Product or component type

Contact block

Device short name

ZB6

Sale per indivisible quantity

10

Contacts type and composition

1 NO

Contact operation

Slow-break

Contact block type

Single

Connections - terminals

Faston connector

Contacts material

Silver alloy (Ag/Ni)

Terminals description ISO n°1

(3-4)NO

Product weight

0.004 kg

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

2 mm (NO changing electrical state); 3.5 mm (total travel)

Operating force

1.6 N NO changing electrical state

Mechanical durability

5000000 cycles

Short-circuit protection

6 A cartridge fuse type gG

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 120 V, AC-15, B300; 1.5 A at 240 V, AC-15, B300; 0.1 A at 250 V, DC-13, R300; 0.22 A at 125 V, DC-13, R300

Electrical durability

1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

IP degree of protection

IP20 conforming to IEC 60529

Standards

JIS C 4520; IEC 60947-5-1; CSA C22.2 No 14; JIS C 852; IEC 60947-1; IEC 60947-5-4; UL 508

Product certifications

UL; CCC; CSA; GOST

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

400

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50
