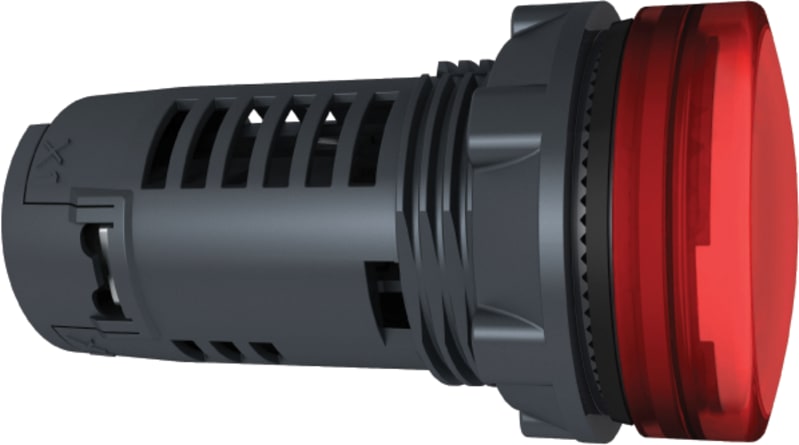

Schneider Electric XB5EVG4 Harmony XB5 Monolithic Pilot Light 22 mm Red LED 110-120 V AC

Schneider Electric XB5EVG4 is a Harmony XB5 monolithic pilot light with a 22 mm mounting diameter and a dark grey plastic bezel. The unit uses an integral universal LED with a plain red lens and a steady signalling pattern. Rated supply is 110 to 120 V AC at 50/60 Hz, with screw-clamp terminals accepting up to 2 x 2.5 mm² conductors.

Manufacturer part number (MPN)

XB5EVG4

EAN / GTIN

3389119041492

Sales unit

pcs

Voltage

110 V

Range of product

Harmony XB5

Product or component type

Pilot light

Device short name

XB5

Bezel material

Dark grey plastic

Fixing collar material

Plastic

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Cap/operator or lens colour

Red

Operator additional information

With plain lens

Light source

Universal LED

Bulb base

Integral LED

Light source colour

Red

[Us] rated supply voltage

110...120 V AC at 50/60 Hz

Device presentation

Monolithic product

Height

29 mm

Width

29 mm

Depth

54 mm

Terminals description ISO n°1

(X1-X2)PL

Product weight

0.038 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Signalling type

Steady

Compatibility code

XB5

Supply voltage limits

100…132 V AC

Current consumption

14 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653

Enclosure Type

UL type 4X/13

IK degree of protection

IK05 conforming to IEC 50102

Standards

UL 508; IEC 60947-5-4; IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-1; JIS C8201-5-1; JIS C8201-1

Product certifications

CSA; UL listed

Vibration resistance

5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 30 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Electromagnetic compatibility

Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electromagnetic emission class B conforming to IEC 55011

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Number of Units in Package 1

1

Number of Units in Package 2

88

Warranty (in months)

18

Hole diameter

22.5 mm

Voltage type

AC/DC

Colour lens

Red

Number of indicator lights

1

Rated operating voltage Ue

110–120 V

Colour front ring

Chrome

Type of electric connection

Screw connection

Degree of protection (IP)

IP66

With light source

Yes

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of lamp socket

LED

Type of lens

Flat

Country of origin

Indonesia

HS Code

8531.80
