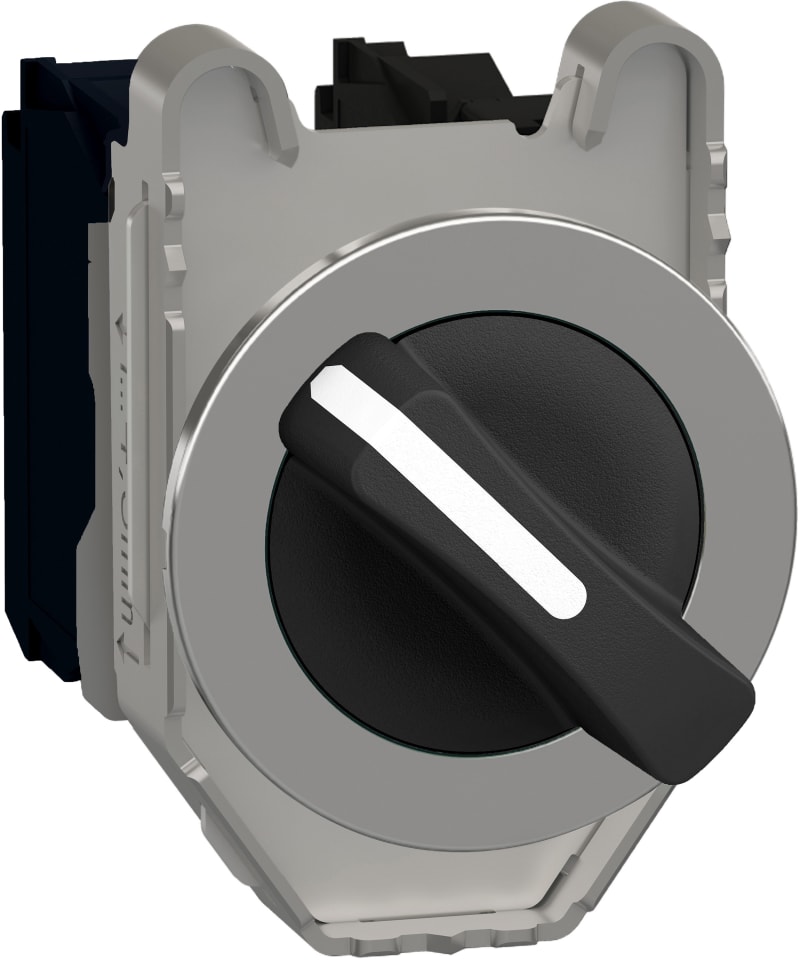

Schneider Electric Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO+1NC XB4FD25

Schneider Electric XB4FD25 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Selector switch flush with 2 fixed positionsitions 1xNO+1xNC.

Manufacturer part number (MPN)

XB4FD25

EAN / GTIN

3606489580162

Sales unit

pcs

Package quantity

5 pcs

Contact configuration

1 NO + NC

Range of product

Harmony XB4

Product or component type

Selector switch

Device short name

XB4F

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Mounting diameter

30.5 mm

Sale per indivisible quantity

1

Head type

Built-in-flush

Shape of signaling unit head

Round

Type of operator

stay put

Operator profile

Black standard handle

Operator position information

2 positions 90°

Contacts type and composition

1 NO + 1 NC

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Height

47 mm

Width

36.6 mm

Depth

70 mm

Terminals description ISO n°1

(13-14)NO; (21-22)NC

Product weight

0.105 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Device mounting

Built-in

Fixing center

40 x 50 mm (1...6 mm thick panel)

Fixing mode

By screws

Contacts usage

Standard contacts

Positive opening

With conforming to IEC 60947-5-1 appendix K

Torque value

0.14 N.m NO changing electrical state

Mechanical durability

1000000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4

Device presentation

Complete product

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50 E; Type 12 conforming to UL 50 E; Type 4 conforming to UL 50 E; Type 4X conforming to UL 50 E

IK degree of protection

IK04 conforming to IEC 50102

Standards

CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; UL 508; IEC 60947-1; JIS C8201-5-1; CE; JIS C8201-1

Product certifications

UL listed; CSA; CCC; EAC

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

80

Warranty (in months)

18

Hole diameter

30.5 mm

Colour button

Black

Number of switch positions

2

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Type of electric connection

Screw connection

Degree of protection (IP)

IP66

With light source

No

Material front ring

Metal

With front ring

Yes

Switching function latching

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

France

HS Code

8536.50
