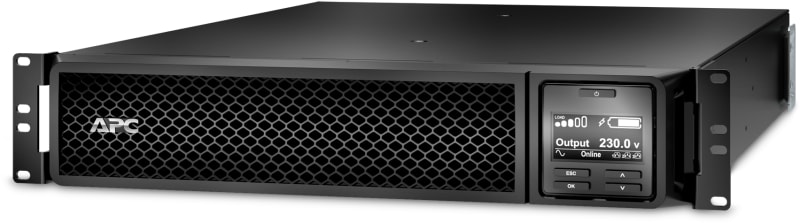

Schneider Electric APC Smart-UPS SRT1000RMXLI 1000 VA 230 V 2U
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRT1000RMXLI SRT UPS On-Line, 1000VA/1000W, RM 2U, 230V, 6x C13 IEC outputs, SmartSlot, expandable, with rail kit.
Technical Specifications
- Manufacturer part number (MPN)
- SRT1000RMXLI
- EAN / GTIN
- 0731304340256
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- High density, double-conversion on-line power protection with scalable runtime.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V
- Input connection
- BS 1363 British; IEC 60320 C14; CEE 7/7
- Efficiency at full load
- 176...275 V full load; 100...275 V 40% load
- Input frequency
- 40...70 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 1000 W
- Rated power in VA
- 1000 VA
- Output connection
- 6 IEC 60320
- Bypass type
- Built-in bypass
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 2 %
- Maximum configurable power in VA
- 1000 VA
- Maximum configurable power in W
- 1000 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC155
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery type
- Lead-acid internal included
- Emergency power off
- Yes
- Free slot
- 0
- Alarm
- Audible and visible alarms : prioritized by severity
- UPS connectivity
- Serial port; USB port
- Surge energy rating
- 432 J
- Number of rack unit
- 2U
- Cable length
- 1.8 m
- Number of cables
- 1
- Color
- Black
- Height
- 85 mm
- Width
- 432 mm
- Depth
- 505 mm
- Product weight
- 21 kg
- Mounting location
- Rack
- Mounting preference
- No preference
- Mounting mode
- Rack-mounted with kit
- Two post mountable
- 0
- USB compatible
- Yes
- Mounting position
- Vertical
- Provided equipment
- CD with software; Communication cable; Documentation CD; Installation guide; Rack mounting hardware; Rack mounting brackets; Rack mounting support rails; USB cable; Warranty card
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Additional specification
- High density
- Redundant
- No
- Range of product
- Smart-UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; UK PSTI
- Marking
- CE Mark
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -20…50 °C
- Storage altitude
- 0…15240 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 50 dBA
- Heat dissipation
- 317 Btu/h
- Operating altitude
- 0...10000 ft
- Battery voltage
- 48 V
- Extendable runtime
- 1
- Included battery module
- 1
- Empty battery slot
- 0
- Typical recharge time
- 3 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 97 W rated
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Country of origin
- PH
- Warranty (in months)
- 24 Battery|36 UPS
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304340256
- SAP 1200356789
- Code 82360992
Product Documentation
