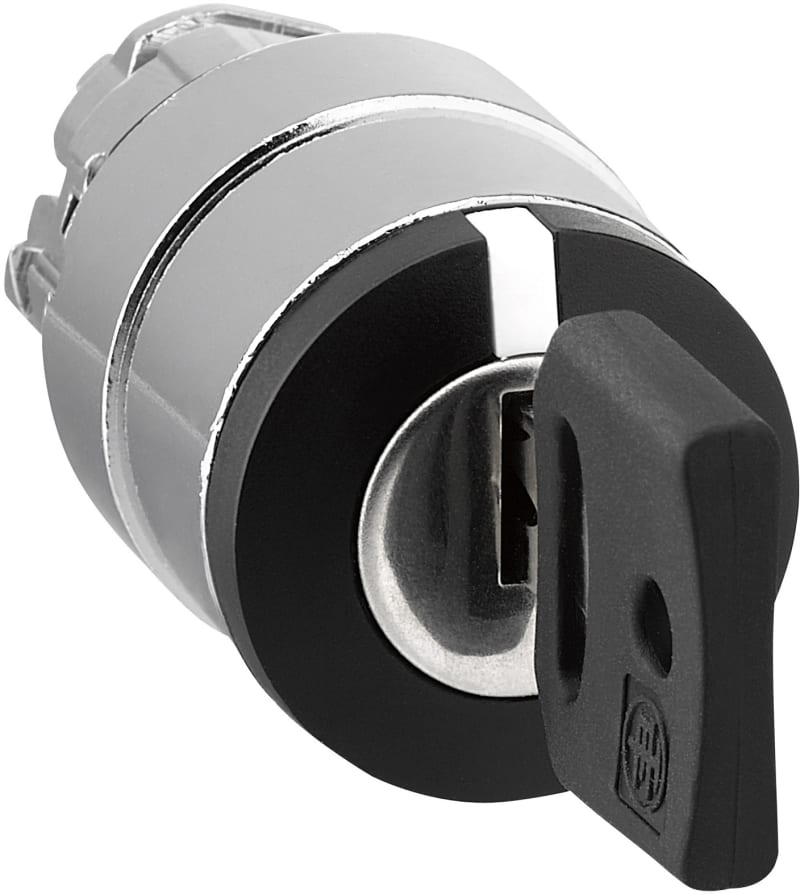

Key switch 3-Pos, key-out in 0

Schneider Electric ZB4BG3 — KEY SWITCH.

Manufacturer part number (MPN)

ZB4BG3

EAN / GTIN

3389110889277

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for key selector switch

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Operator profile

Black key switch

Operator position information

3 positions +/- 45°

Type of keylock

Key 455

Key withdrawal position

Center

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

72 mm

Product weight

0.098 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

1000000 cycles

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 with keyhole cover ZBGP conforming to IEC 50102

Standards

EN/IEC 60947-5-5; CSA C22.2 No 14; UL 508; GB 14048.5; EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.000 cm

Package 1 Width

5.400 cm

Package 1 Length

9.200 cm

Package 1 Weight

104.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

100

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

10.887 kg

Unit Type of Package 3

P06

Number of Units in Package 3

800

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

98.204 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

3

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Key

Colour control element

Black

Switching function latching

Yes

Degree of protection (NEMA)

13

HS Code

8538.90
