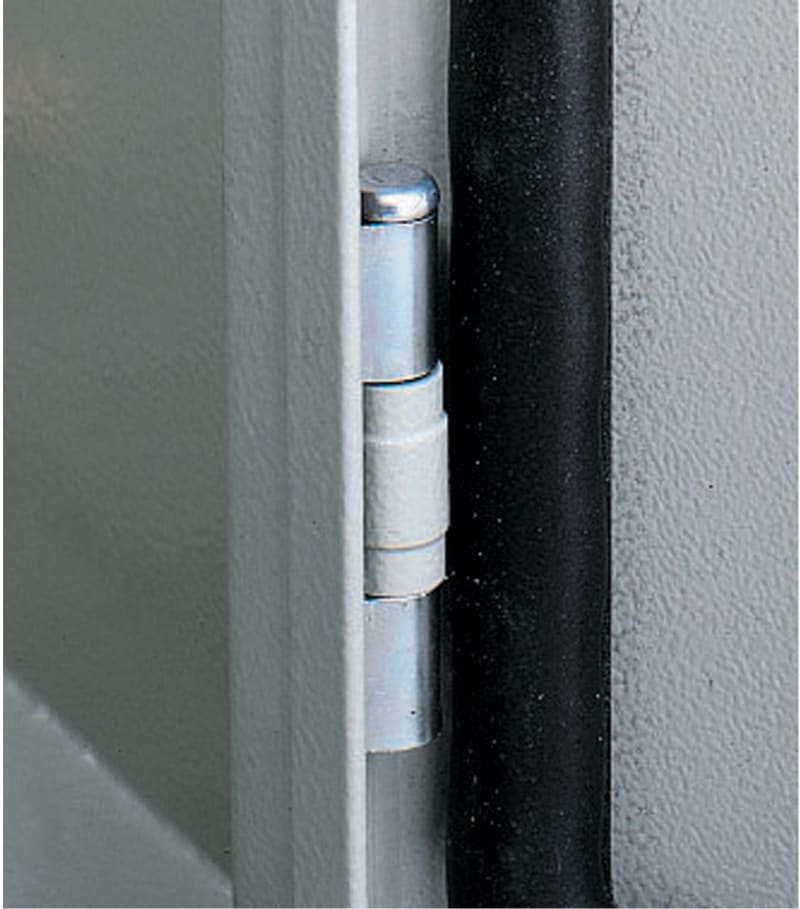

Hinges 120 Degrees (NSYAEDH120S3D)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYAEDH120S3D — Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings.
Technical Specifications
- Manufacturer part number (MPN)
- NSYAEDH120S3D
- EAN / GTIN
- 3606480169021
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Range
- PanelSeT
- Product or component type
- Hinge
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Mounting location
- Enclosure
- Range compatibility
- PanelSeT S3D S3D enclosure
- Device composition
- Fixing elements; 1 x hinge body; 1 x pin
- Quantity per set
- Set of 1
- Material
- Hinge body: treated sheet steel; Pin: aluminium
- Fixing mode
- By screws - on enclosure body location
- Operating angle
- 120 °
- Maximum load
- 50 kg/m²
- Product weight
- 0.031 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.000 cm
- Package 1 Width
- 10.000 cm
- Package 1 Length
- 10.000 cm
- Package 1 Weight
- 36.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 100
- Package 2 Height
- 20.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 3.600 kg
- Unit Type of Package 3
- PAM
- Number of Units in Package 3
- 2000
- Package 3 Height
- 54.000 cm
- Package 3 Width
- 100.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 88.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Max. opening angle
- 120 °
- Inlying hinge
- Yes
- Outlying hinge
- No
- Hinge adjustable
- No
Standards & Compliance
- HS Code
- 7318.19
Cross References
- EAN 3606480169021
- SAP 1000088883
- Code 8837679
Product Documentation
