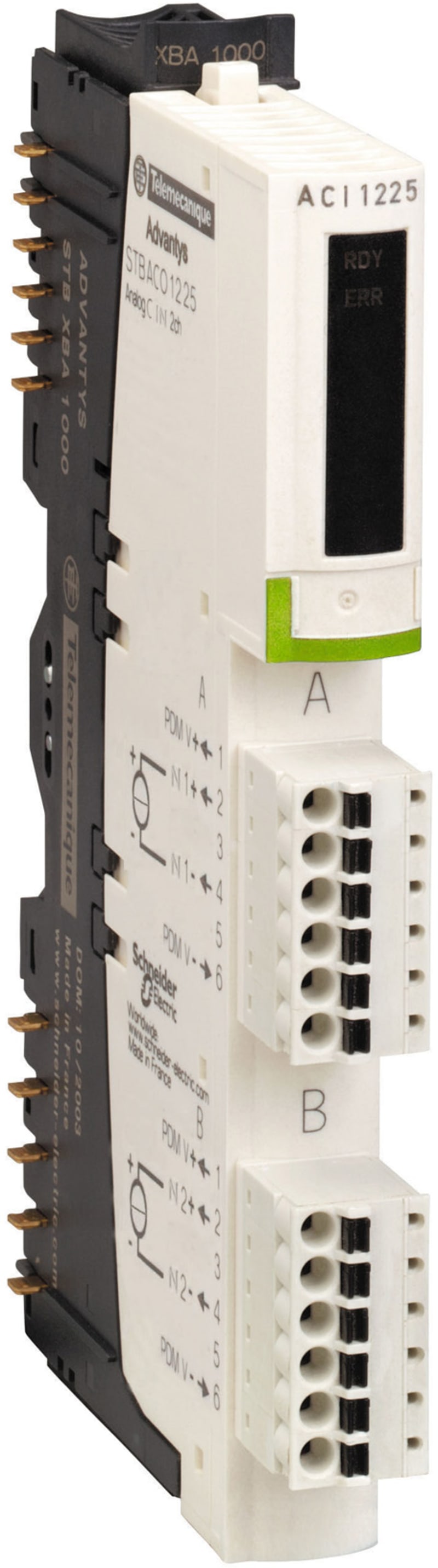

Schneider Electric STBACI1225K basic analog input kit STB - 4..20 mA - 2 I - 10 bits
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric STBACI1225K basic analog input kit STB - 4..20 mA - 2 I - 10 bits is listed under Tools / Hand Tools. Sales unit: pcs; Output signal: 4–20 mA; Range of product: Modicon STB distributed I/O solution; Product or component type: Basic analog input kit; Analogue input number: 2; Analogue output number: 0.
Technical Specifications
- Manufacturer part number (MPN)
- STBACI1225K
- EAN / GTIN
- 3595863948387
- Sales unit
- pcs
- Output signal
- 4–20 mA
- Range of product
- Modicon STB distributed I/O solution
- Product or component type
- Basic analog input kit
- Kit composition
- STBXTS1100, 6-terminal screw type connector; STBXBA1000 base; STBXTS2100, 6-terminal spring clamp connector; STBACI1225 module
- Product compatibility
- Mounting base STBXBA1000; Power distribution module STBPDT3100/3105
- Analogue input number
- 2
- Analogue output number
- 0
- Update time
- 10 ms
- Hot swapping fallback
- No for basic NIMs
- Height
- 13.9 mm
- Width
- 128.3 mm
- Depth
- 70 mm
- Marking
- CE
- Relative humidity
- 95 % at 60 °C without condensation
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.79 cm
- Package 1 Width
- 8.13 cm
- Package 1 Length
- 13.21 cm
- Package 1 Weight
- 140 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 28
- Package 2 Height
- 15 cm
- Package 2 Width
- 30 cm
- Package 2 Length
- 40 cm
- Package 2 Weight
- 4.262 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 448
- Package 3 Height
- 75.0 cm
- Package 3 Width
- 40.0 cm
- Package 3 Length
- 80.0 cm
- Package 3 Weight
- 85.928 kg
- Country of origin
- ID
- Warranty (in months)
- 18
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 24 V
- Voltage type (supply voltage)
- DC
- Input, current
- Yes
- Input, voltage
- No
- Input, resistor
- No
- Input, resistance thermometer
- No
- Input, thermocouple
- No
- Input signal, configurable
- Yes
- Resolution of the analogue inputs
- 10 Bit
- Output, current
- No
- Output, voltage
- No
- Output signal configurable
- No
- Number of analogue inputs
- 2
- Analogue inputs configurable
- Yes
- Analogue outputs configurable
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- Type of electric connection
- Screw connection
- Fieldbus connection over separate bus coupler possible
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- Yes
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3595863948387
- SAP 1000022023
- Code 8495261
Product Documentation
More from Schneider Electric
Schneider Electric

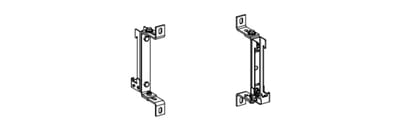

Schneider Electric KSB1000ZV2 UNIVERSAL FLOOR GUIDE
Schneider Electric

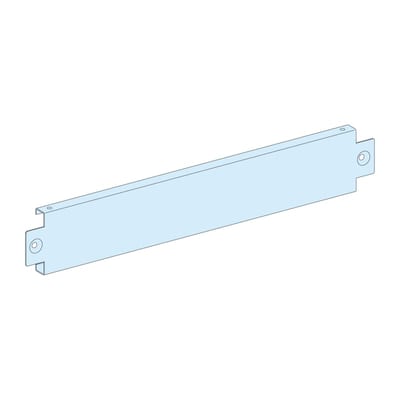

Plinth 2XLANGSIDER/4XCORNERR H100 B400
LVS08724
Schneider Electric

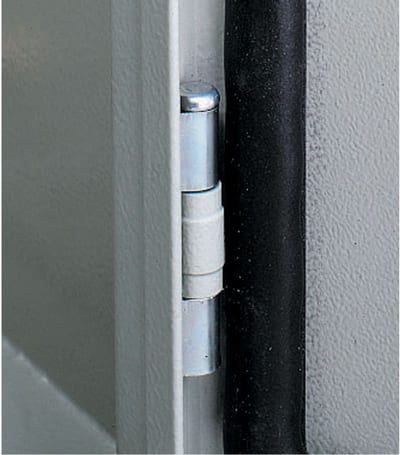

Hinges 120 Degrees (NSYAEDH120S3D)
Schneider Electric

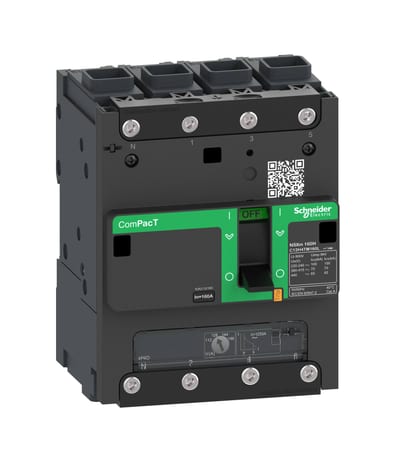

Schneider Electric Circuit breaker, ComPacT NSXm 160N, 50KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 100A, EverLink lugs C11N4TM100L
Schneider Electric

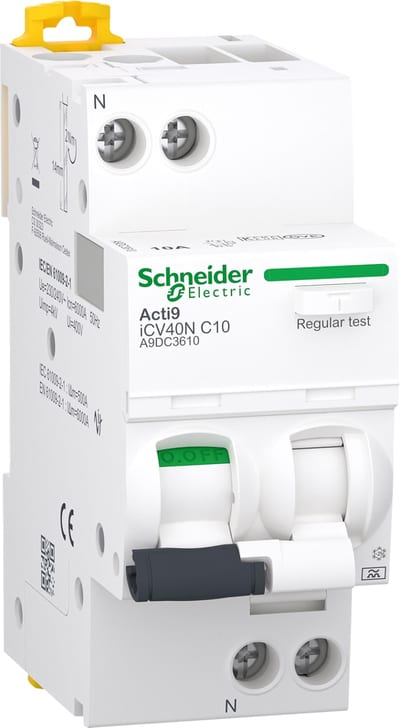

Schneider Electric residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40, 1P+N, 10 A, C Curve, 6000 A, 30 mA, A type A9DC3610
Schneider Electric

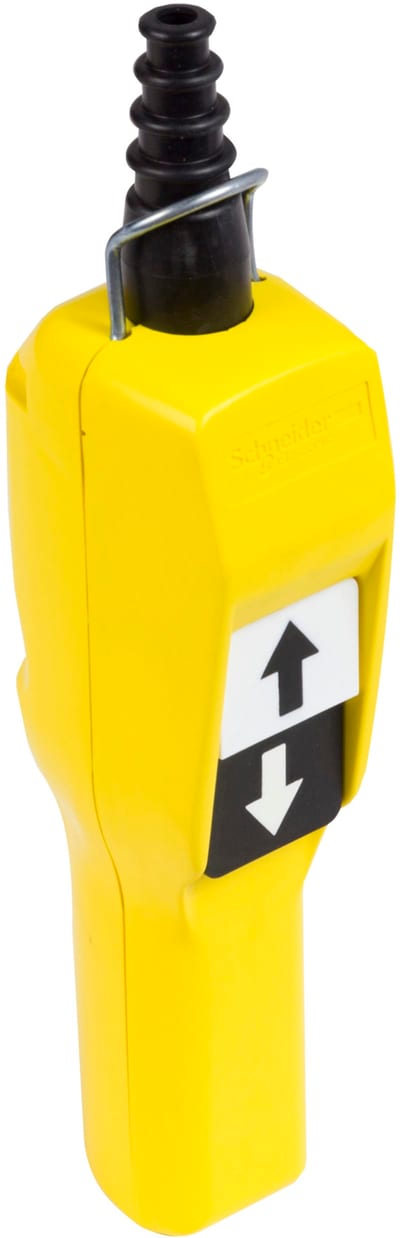

Schneider Electric XACA205 pendant station XAC-A pistol grip - 2 push buttons
Schneider Electric

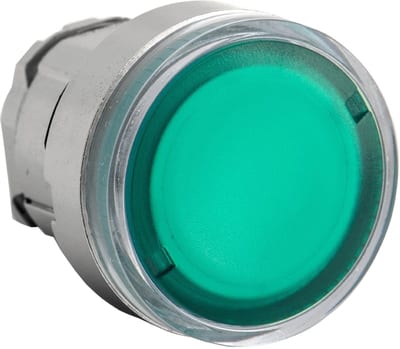

Schneider Electric ZB4BW33 Harmony XB4 Push-Button Head — Ø22 mm, Green, flush, spring return, illuminated (BA9S), metal bezel
Schneider Electric

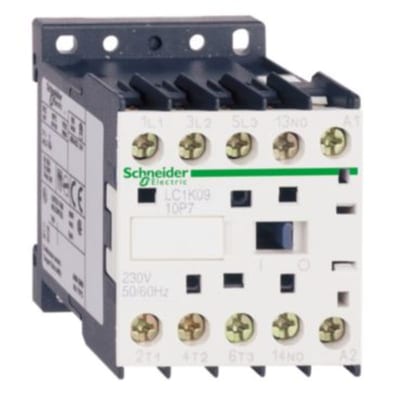

Schneider Electric Contactor, TeSys K, 3P, AC-3/AC-3E,440V 9A, aux. 1NC, 230V AC coil LC1K0901P7
