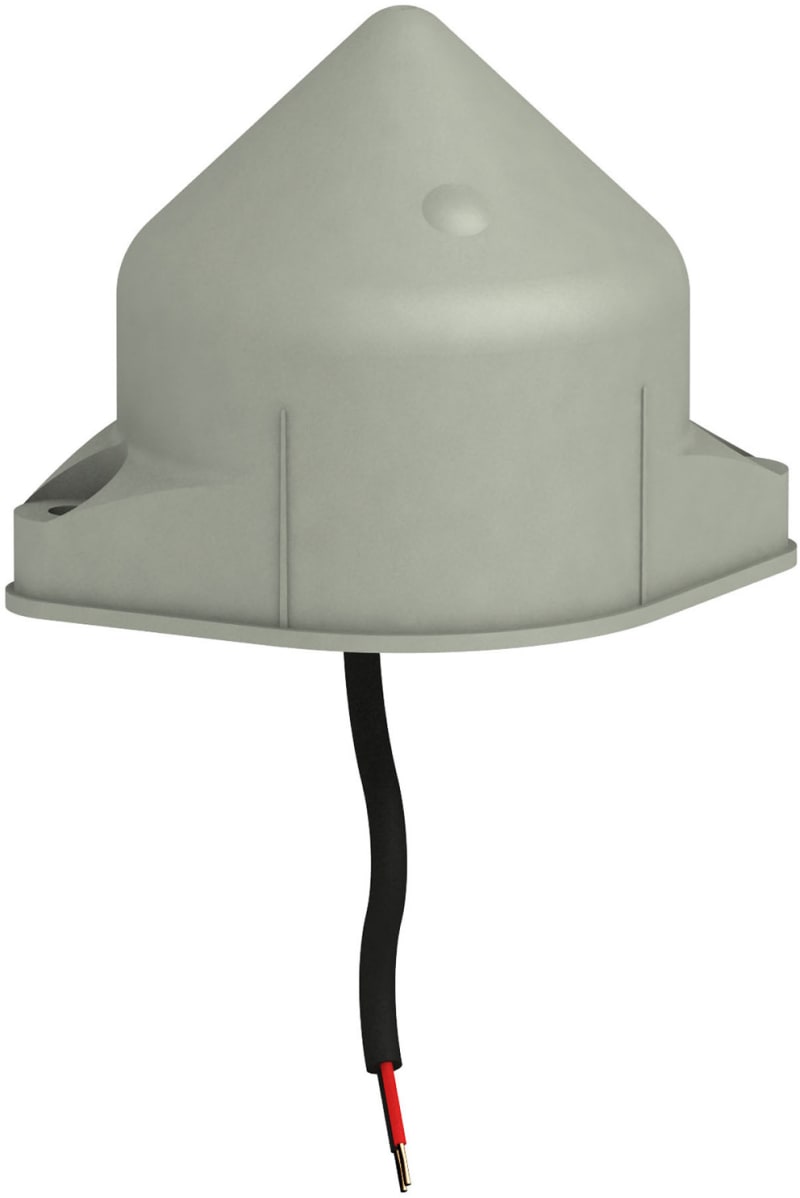

Schneider Electric Relay Antenna, AC/DC, 5M cable output ZBRA1

Schneider Electric ZBRA1 Antenneforsterker for 2.4 GHz ZigBee green power for wireless komponenter and 24-240VAC/DC supply.

Manufacturer part number (MPN)

ZBRA1

EAN / GTIN

3606480334689

Sales unit

pcs

Package quantity

18 pcs

Voltage

240 V

Range of product

Harmony XB5R

Product or component type

Wireless and batteryless range

Device short name

ZBRA

Product destination

Wireless Schneider Electric ecosystem devices

Control station application

Transceiver (emission and reception)

Colour of base of enclosure

Black (RAL 9011)

Colour of cover

Transparent

Material

Polycarbonate

frequency

2405 MHz for transmitter; 2405 MHz for receiver

Antenna type

Omnidirectional

emission class

5M00G7W

Maximum sensing distance

300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Emission power

3 mW

[Us] rated supply voltage

24...240 V AC/DC 50/60 Hz - 10...10 %

Maximum power consumption in W

4 W AC/DC

Operating position

Vertical

Status LED

1 LED green for power ON; 1 LED green for emission signal

Overvoltage category

III conforming to IEC 60664-1

Rated short-duration power frequency withstand voltage

4 kV 50 Hz conforming to IEC 60947-5-1

Electrical connection

2 conductors cable 0.34 mm² - flexible - 5 m conforming to IEC 60947-1

Tightening torque

0.6 N.m

Housing material

Polycarbonate

Number of channels

1

Modulation Technique

O-QPSK

Product weight

0.2 kg

Ambient air temperature for storage

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529 55 °C 0.1 m

Pollution degree

3 conforming to IEC 60664-1

IK degree of protection

IK03 conforming to IEC 62262

Product certifications

CCC; BT 2006/95/EC; UL; GOST; CSA; CE; C-Tick

Directives

1999/5/EC - R&TTE directive; 2004/108/EC - electromagnetic compatibility

Vibration resistance

+/-0.5 mm (f= 10…55 Hz) conforming to IEC 60068-2-6; 6 gn (f= 55…150 Hz) conforming to IEC 60068-2-6

Shock resistance

25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27; 15 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Insulation resistance

> 500 MOhm at 500 V DC conforming to NF C 20030

[Ui] rated insulation voltage

250 V conforming to IEC 60664-1

Number of Units in Package 1

1

Number of Units in Package 2

18

Country of origin

ID

Warranty (in months)

18

Accessory

Yes

Spare part

No

HS Code

8538.90

• EAN 3606480334689
• SAP 1000250527
• Code 8209753
