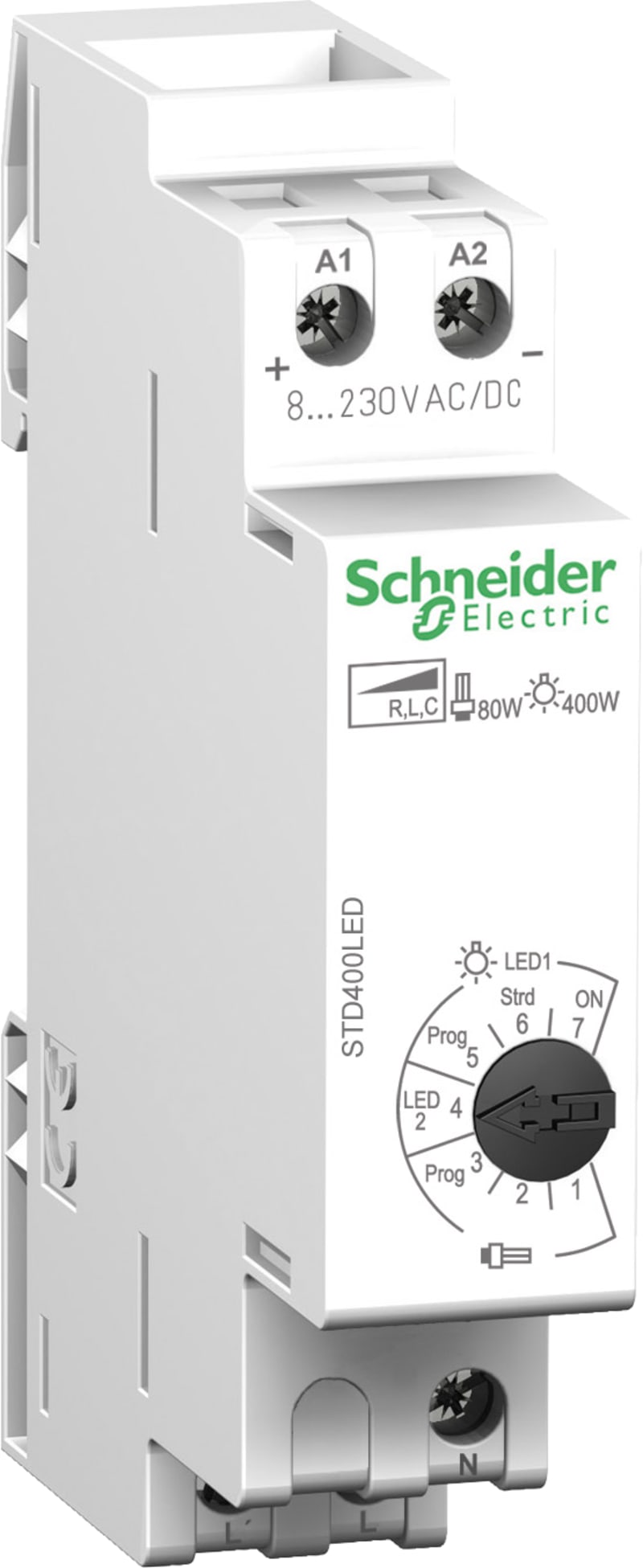

Schneider Electric ACTI9 - STD400LED DIN universal dimmer CCTDD20016

Schneider Electric CCTDD20016 STD400LED DIN-Mounted DIMMER.

Manufacturer part number (MPN)

CCTDD20016

EAN / GTIN

3606480769245

HS code

8536.90

Sales unit

pcs

Package quantity

86 pcs

range of product

Acti9

Product name

Acti9 STD

Product or component type

Remote control dimmer

Device short name

STD

Function available

Automatic load type detection

Device application

Building

Load type

halogen lamp: <= 400 W; incandescent lamp: <= 400 W; fluocompact lamp, dimmable: <= 80 W; LED lamp, dimmable: <= 60 W; low voltage halogen lamp with electronic transformer: <= 300 W; low voltage halogen lamp with ferromagnetic transformer: <= 400 W

Control type

Local control: push-button; Remote control: push-button

Power consumption in VA

0.8 VA

Thermal losses

3 W

[Ue] rated operational voltage

230 V AC - 15...10 % at 50 Hz

Input voltage

8...230 V AC/DC

Protection type

Electronic overload protection; Electronic over temperature protection

Mounting support

DIN rail

9 mm pitches

2

Connected auxiliaries

Maximum 10 auxiliary push-buttons without light indication, distance : < 100 m

Dimmer type

Dimmer with memory

Height

85 mm

Width

18 mm

Depth

60 mm

Product weight

65 g

IP degree of protection

IP20

Standards

EN 60669-2-1; EN 60669-1

Directives

2006/95/EC - low voltage directive; 2004/108/EC - electromagnetic compatibility

Ambient air temperature for operation

-30…50 °C

Ambient air temperature for storage

-20…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

86

Warranty (in months)

18

HS Code

8536.90

• EAN 3606480769245
• SAP 1000679833
• Code 8383042
