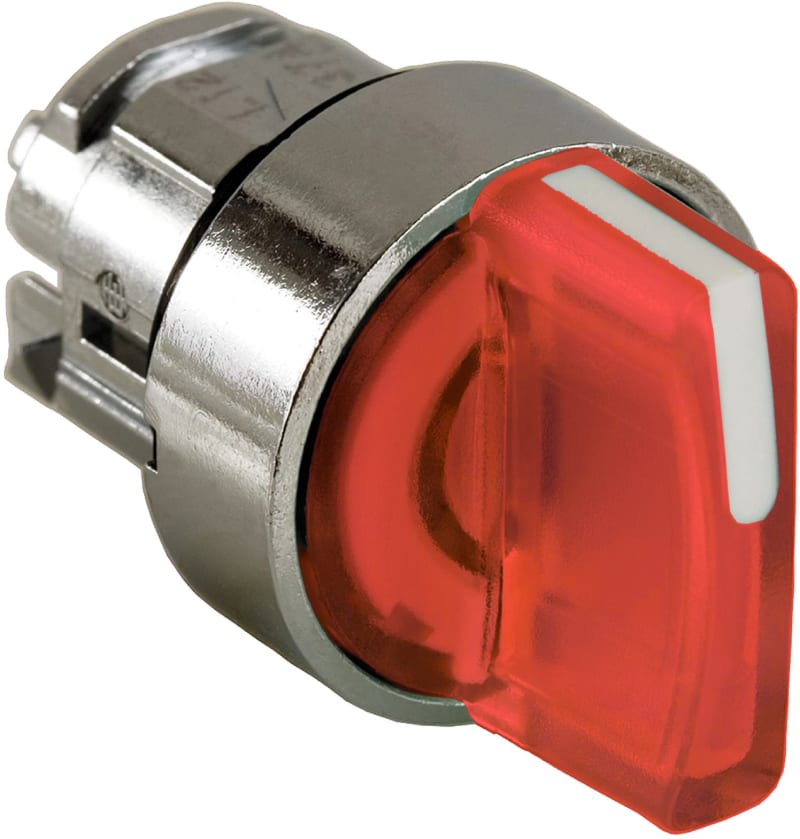

Schneider Electric ZB4BK1543 Illuminated Selector Switch Head 3-Position Spring-Return Red

Schneider Electric ZB4BK1543 is a Harmony XB4 illuminated selector-switch head with a red standard handle, providing three positions with spring return to centre through ±45°. The 22.5 mm chromium-plated metal bezel accepts universal LED illumination and offers IP66/IP67/IP69/IP69K protection with mechanical durability of 500,000 cycles. Intended as a head element to be combined with contact blocks and LED bodies for panel-mounted process control.

Manufacturer part number (MPN)

ZB4BK1543

EAN / GTIN

3389110890952

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for illuminated selector switch

Product compatibility

Universal LED

Device short name

ZB4

Bezel material

Chromium plated metal

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

To centre spring return

Operator profile

Red standard handle

Operator position information

3 positions +/- 45°

Cap/operator or lens colour

Red

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

43 mm

Product weight

0.036 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

500000 cycles

Electrical composition code

M3 for <4 contacts using single blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED; M4 for <4 contacts using single and double blocks in front mounting with integral LED

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK04 conforming to IEC 50102

Standards

IEC 60947-5-4; IEC 60947-1; IEC 60947-5-5; IEC 60947-5-1; UL 508; JIS C8201-5-1; CSA C22.2 No 14; JIS C8201-1

Product certifications

BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.3 cm

Package 1 Width

4.8 cm

Package 1 Length

5.2 cm

Package 1 Weight

42 g

Unit Type of Package 2

S03

Number of Units in Package 2

250

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

10.981 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

3

Suitable for lighting

Yes

Spring-return

Yes

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Short rotary handle

Colour indicator light cap

Red

Colour control element

Red

Switching function latching

No

HS Code

8538.90
