Floor-Standing Cabinet 14X12X4 U.PL.
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSM1412402D Floor-standing cabinet 14X12X4 U.Pl.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSM1412402D
- EAN / GTIN
- 3606485120546
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- PanelSeT
- Product name
- PanelSeT SM
- Product or component type
- Compact enclosure
- Application
- Multi-purpose
- Installation accessory type
- Floor-standing
- Device composition
- 1 body; 2 door; 2 cable gland plate; 1 locking system with handle: door; 1 blocking system: left door; 4 mounting plate bracket
- Removable parts
- Door by screws hinge; Mounting plate bracket by screws
- Enclosure nominal height
- 1400 mm
- Enclosure nominal width
- 1200 mm
- Enclosure nominal depth
- 400 mm
- Number of doors
- Front: 2 door(s)
- Door opening side
- Left (120 °); Right (120 °)
- Door type
- Plain
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Body type
- Single piece body with welded rear panel; Front part forming a rigid frame with welded corners
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- cable entry
- 1 entry
- Material
- Body: sheet steel; Door: sheet steel; Hinge: zamak
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Accessibility for operation
- Front
- Product weight
- 81 kg
- Standards
- IEC 62208
- Product certifications
- DNV; UL; BV
- IK degree of protection
- IK10 conforming to IEC 62262; conforming to UL; conforming to cUL
- IP degree of protection
- IP55 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 153.000 cm
- Package 1 Width
- 125.000 cm
- Package 1 Length
- 49.000 cm
- Package 1 Weight
- 94.500 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 2
- Package 2 Height
- 153.000 cm
- Package 2 Width
- 125.000 cm
- Package 2 Length
- 98.000 cm
- Package 2 Weight
- 189.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 1200 mm
- Height
- 1400 mm
- Depth
- 400 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 4900 N
- Max. permitted load of the door(s) according to IEC 62208
- 588 N
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606485120546
- SAP 1000089982
- Code 8845450
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250HB1, 75KA/690VAC, 3 poles, TMD trip unit 160A C25V3TM160
Schneider Electric
Main pole 80A (VZ4)
Schneider Electric
INS1000 3P (31332)
Schneider Electric
Schneider Electric module network TM4 1 Profibus DP slave TM4PDPS1
Schneider Electric
Schneider Electric NSYFCMX Stainless Steel 304 Wall Fixing Bracket Set for SMX
Schneider Electric

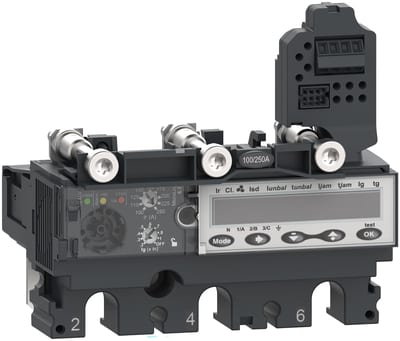

Schneider Electric Trip unit MicroLogic 6.2E, ComPacT NSX100/160/250, 3 poles, basic and ground fault protections, energy meter, 100A C1036E100
Schneider Electric

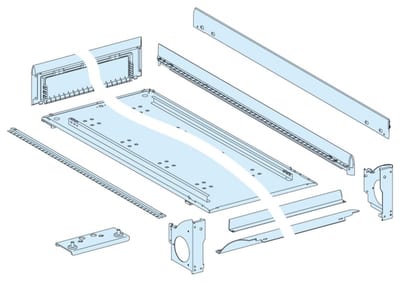

Schneider Electric Floor standing duct, PrismaSeT G, W 300mm, H 1720mm (30M), IP30, without side plates LVS08273
