Schneider Electric undervoltage release (spring) MN - 24 V AC 50/60Hz - 24 V DC LV426801
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV426801 Undervoltage coil MN 24VAC/DC for ComPact NSXm circuit breaker.
Technical Specifications
- Manufacturer part number (MPN)
- LV426801
- EAN / GTIN
- 3606485412788
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Voltage
- 24 V AC
- Range
- ComPact
- Range of product
- ComPacT NSXm
- Device short name
- MN
- Product or component type
- Voltage release
- Device application
- Control
- Voltage release type
- Opening coil; Undervoltage release
- Control type
- Standard
- [Uc] control circuit voltage
- 24 V AC 50/60 Hz; 24 V DC
- Range compatibility
- ComPact ComPacT NSXm; ComPact ComPact NSXm; PowerPact PowerPact B
- Operating threshold
- 0.35...0.7 x Un opening; 0.85 x Un closing
- Response time
- < 50 ms
- Auxiliary connection terminal
- Spring
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606485412788
- SAP 1200323517
- Code 82306231
Product Documentation
More from Schneider Electric
Schneider Electric
Module cable 3M 2.5 mm² vinkl hv
INS44297
Schneider Electric
Jordset switch MTZ2/3 fast res
LV848557SP
Schneider Electric
Form 2 front/baksideskille B300 D500
LVS06560
Schneider Electric

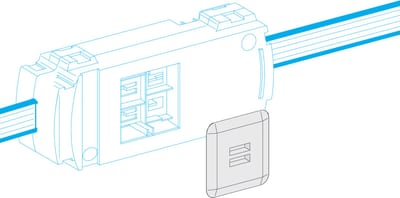

Reserve Cover Outletspunkt
KBC16ZB1
Schneider Electric
Schneider Electric Solid state relay, 3.5 A, DC switching, input 15...30 V DC, output 1...24 V DC SSL1D03BD
Schneider Electric

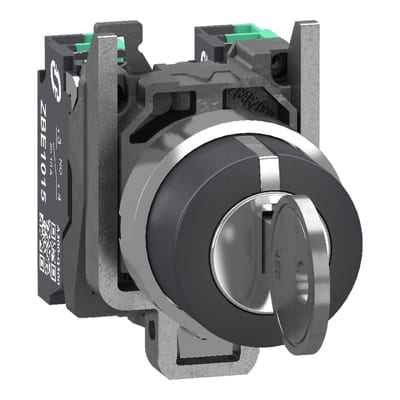

Schneider Electric Key switch selector, Harmony XB4, metal, black, 22mm, key 455, 3 positions, stay put, key release center, 2 NO, push in XB4BG335
Schneider Electric

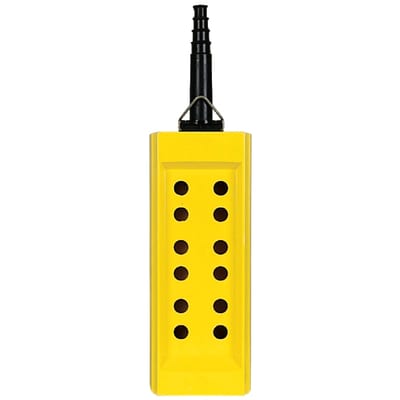

Schneider Electric empty pendant control station XAC-B - 12 openings in 2 columns XACB125
Schneider Electric

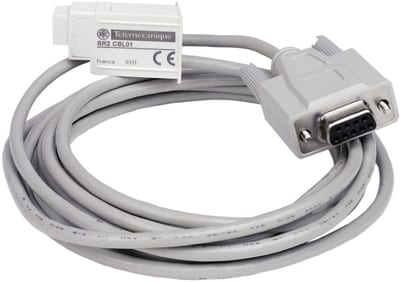

Zelio Logic Cable (SR2CBL01)
