Form 2 front/baksideskille B300 D500
Pricing
Request a quote
We reply within 24 hours
Product Description

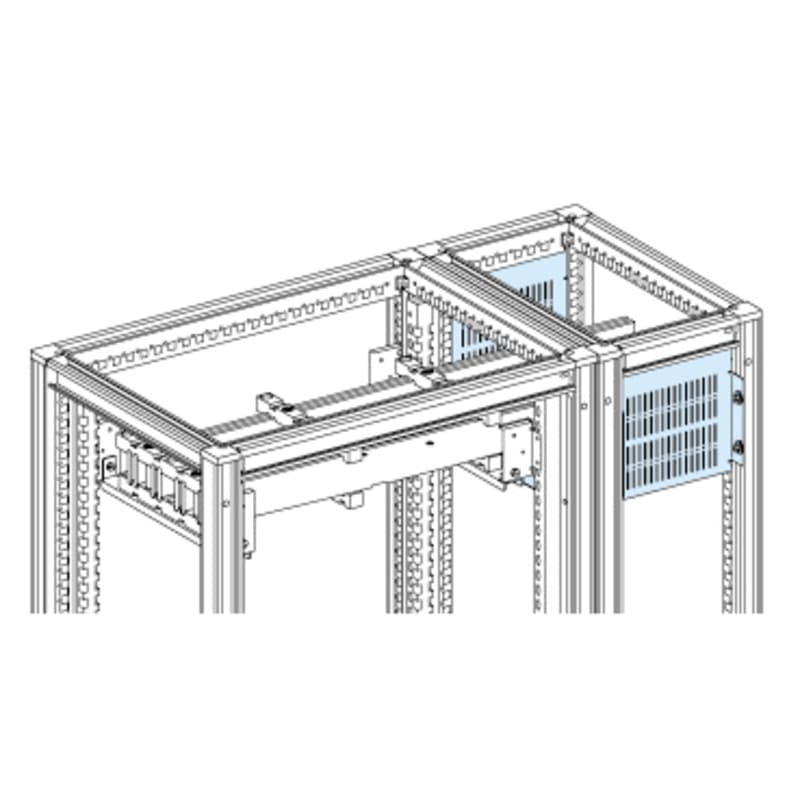

Schneider Electric LVS06560 Form 2-Front and bakside isolation-horizontal-PrismaSeT 6300-H=3modules for B300mm D500mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS06560
- EAN / GTIN
- 3606481883919
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT 6300
- Product or component type
- Horizontal partition
- Range compatibility
- PrismaSeT PrismaSeT 6300 enclosure; Linergy Linergy BS busbar; Linergy Linergy LGYE busbar
- Product specific application
- To partition horizontal busbars
- Cubicle partitioning form
- Form 2
- Enclosure/cubicle description
- Cubicle
- installation description
- Cubicle - width 300 mm, depth 500 mm
- Enclosure/cubicle width
- 300 mm
- Installation direction
- Horizontal
- Product destination
- For busbar compartment
- Cubicle depth
- 500 mm
- Busbar position
- Horizontal
- Material
- Metal
- Height
- 150 mm
- Width
- 300 mm
- Surface finish
- Powder coated
- Colour
- White (RAL 9003)
- Special colour options
- Yes
- IP degree of protection
- IP55
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 300 mm
- Suitable for enclosure building depth
- 500 mm
- RAL-number
- 9003
- With cable entry
- No
- Number of height units
- 2
- With lock
- No
- Construction type
- Individual part
- For internal separation form 2a
- Yes
- For internal separation form 2b
- Yes
- For internal separation form 3a
- No
- For internal separation form 3b
- No
- For internal separation form 4a
- No
- For internal separation form 4b
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606481883919
- SAP 1200722197
- Code 83838453
Product Documentation
