Schneider Electric Harmony XB5R Wireless Temperature and Humidity Sensor with Magnet

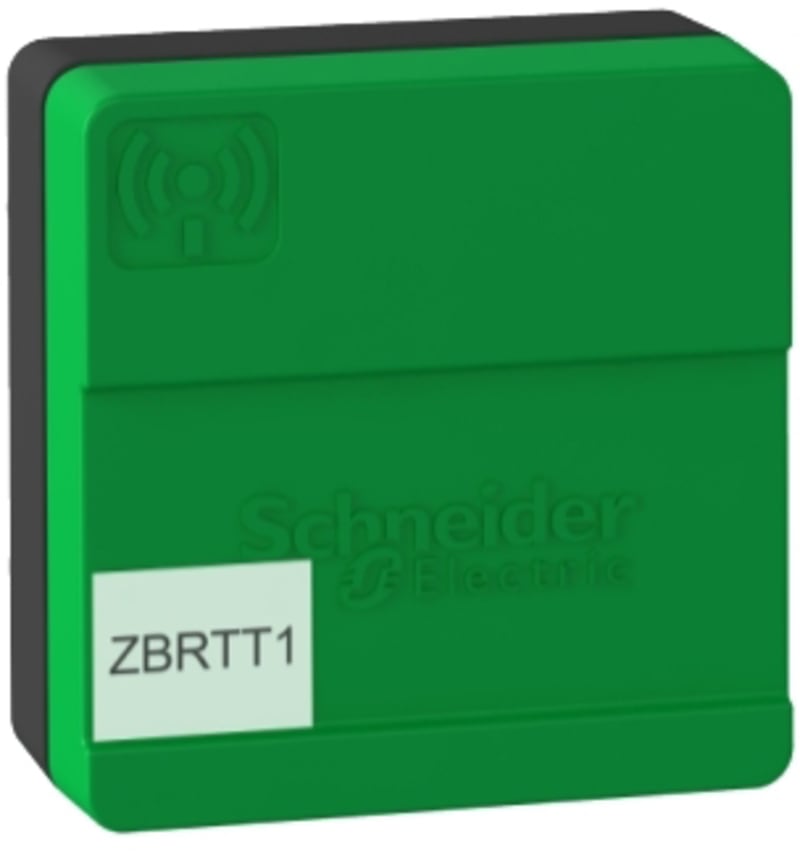

Schneider Electric ZBRTT1 is a Harmony XB5R wireless temperature and humidity transmitter with magnetic mounting. It communicates over Zigbee Green Power at 2.4 GHz (IEEE 802.15.4) with a free-field range up to 100 m and an IP54, IK06 housing rated for -40 to +70 °C ambient. The battery-free, self-powered sensor is used for wireless environmental monitoring in industrial and building applications.

Manufacturer part number (MPN)

ZBRTT1

EAN / GTIN

3606481808073

Sales unit

pcs

Package quantity

100 pcs

Range of product

Harmony XB5R

Product or component type

Wireless transmitter

Device short name

XB5R

Transmission frequency

2400 MHz

Antenna type

Omnidirectional

Max power consumption in W

60 mW

Number of channels

16

Modulation Technique

O-QPSK

Bandwidth

5 MHz

CAD overall height

21 mm

CAD overall width

40 mm

CAD overall depth

40 mm

Product weight

0.034 kg

Measurement temperature

90 °C

Mechanical robustness

Free fall resistance 1000 mm conforming to IEC 60068-2-32

Standards

IEC 61010-1; UL 61010-1; IEEE 802.15.4

Radio agreement

ANATEL; ARIB T66; FCC; ICASA; RSS; SRRC

Communication port protocol

Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4

Maximum sensing distance

100 m in free field; 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure; 10 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Acquisition time

2 ms

Response time

< 2 ms

Fixing mode

Magnetic fixing

mounting mode

Magnetic

Electrical composition code

PW1

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Relative humidity

10…95 % at -40…70 °C

IP degree of protection

IP54 conforming to IEC 60529

IK degree of protection

IK06 conforming to IEC 62262

Shock resistance

40 gn (duration = 6 ms) for 3 shocks conforming to IEC 60068-2-27; 20 gn (duration = 16 ms) for 1000 shocks conforming to IEC 60068-2-27; 10 gn (duration = 11 ms) for 3 shocks conforming to IEC 60068-2-27

Vibration resistance

2 gn (f= 5…200 Hz) conforming to IEC 60068-2-6; 4 gn (f= 200…500 Hz) conforming to IEC 60068-2-6; 1 gn (f= 10…2000 Hz) conforming to IEC 60068-2-64; 1 gn (f= 5…500 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Susceptibility to electromagnetic fields - test level: 25 V/m (80 MHz...6 GHz) conforming to IEC 61000-4-3; Susceptibility to conducted disturbances - test level: 20 V (0.15...80 MHz) conforming to IEC 61000-4-6; Electromagnetic field immunity test - test level: 1000 A/m (pulsed) conforming to IEC 61000-4-8; Electromagnetic field immunity test - test level: 300 A/m (continuous) conforming to IEC 61000-4-8; Electromagnetic field immunity test - test level: 1000 A/m (pulsed) conforming to EN/IEC 61000-4-9; Damped oscillatory wave - test level: 3 kV conforming to IEC 61000-4-10; Damped oscillatory wave - test level: 2.5 kV conforming to EN/IEC 61000-4-18; Surge immunity test conforming to EN/IEC 61000-4-18; Surge immunity test (common mode) conforming to IEC 61000-4-5; Immunity to conducted RF disturbances - test level: 30 V (differential mode) conforming to IEC 61000-4-5; Immunity to conducted RF disturbances (continuous) conforming to IEC 61000-4-16; Immunity to conducted RF disturbances - test level: 300 V; Immunity to conducted RF disturbances (short term) conforming to IEC 61000-4-16

Product certifications

CSA; CCC; UL; GOST; C-Tick; BT 2006/95/EC

Directives

2004/108/EC - electromagnetic compatibility; 1999/5/EC - R&TTE directive

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.5 cm

Package 1 Width

4.5 cm

Package 1 Length

9.0 cm

Package 1 Weight

62.0 g

Unit Type of Package 2

S03

Number of Units in Package 2

100

Package 2 Height

30.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

6.569 kg

Country of origin

ID

Warranty (in months)

18

Accessory

Yes

Spare part

No

HS Code

8526.92
