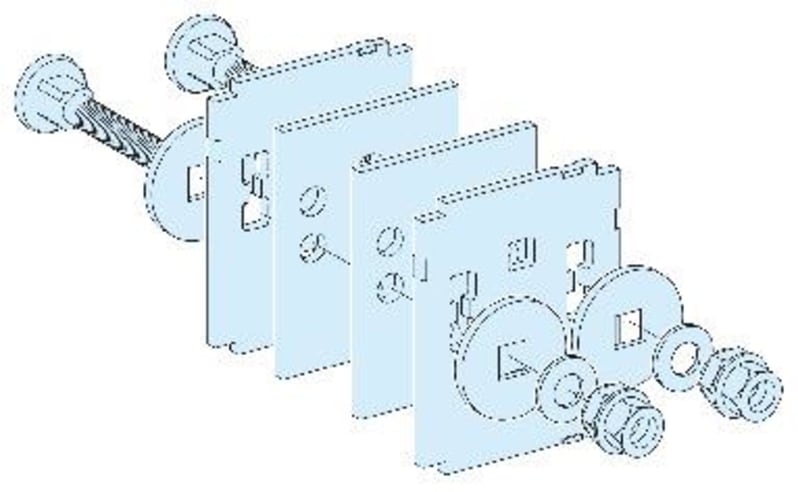

Schneider Electric LVS04641 Linergy BS Horizontal Busbar Joint 80/100 mm PrismaSeT

Schneider Electric LVS04641 is a horizontal busbar joint for the Linergy LGY BS system used in PrismaSeT switchboards. It couples 80 mm and 100 mm flat copper bars in the 4000 A range, with cross sections of 80 x 5 mm, 80 x 10 mm and 100 x 10 mm. The assembly is rated per IEC 60439-1/-2 for use inside enclosures and carries ASTA certification.

Manufacturer part number (MPN)

LVS04641

EAN / GTIN

3606481867032

Sales unit

pcs

Package quantity

6 pcs

Range

Linergy

Range of product

Linergy

Product or component type

Joint

Product name

Linergy BS

Standards

IEC 60439-1, inside enclosure; IEC 60439-2, inside enclosure

Product certifications

ASTA

[Ie] rated operational current

4000 A

Busbar cross section

80 x 5 mm; 80 x 10 mm; 100 x 10 mm

Height

105 mm

Width

85 mm

Product weight

1.54 kg

Quantity per set

Set of 1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.000 cm

Package 1 Width

9.000 cm

Package 1 Length

11.500 cm

Package 1 Weight

1.534 kg

Unit Type of Package 2

S02

Number of Units in Package 2

6

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

9.510 kg

Unit Type of Package 3

P12

Number of Units in Package 3

144

Package 3 Height

57.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

234.896 kg

Country of origin

FR

Warranty (in months)

18

Rated current

4000 A

HS Code

7419.80

• EAN 3606481867032
• SAP 1200547002
• Code 82879825
