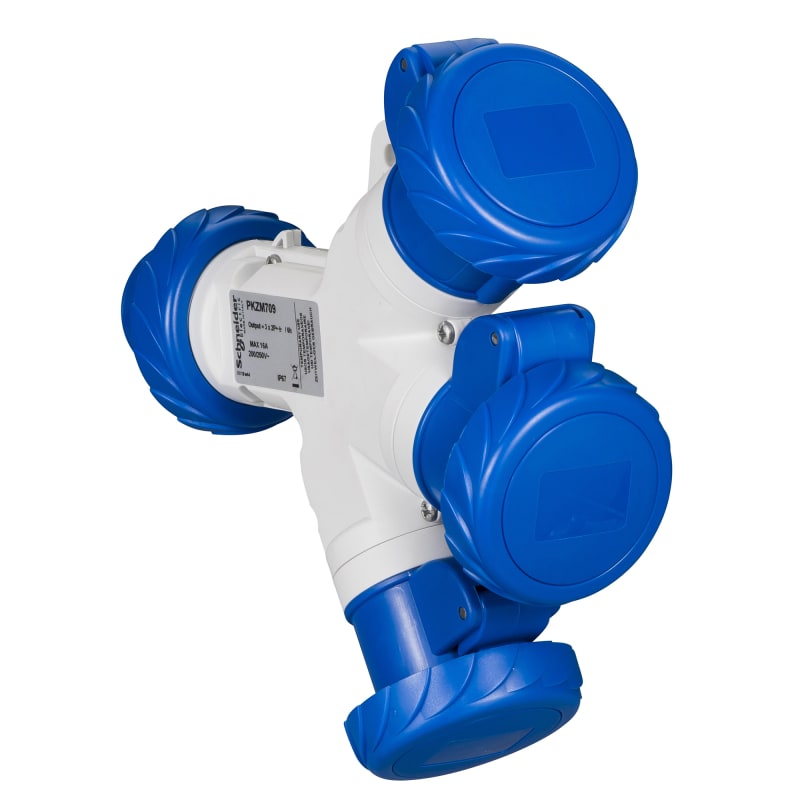

Schneider Electric PratiKa multiple adapter - 3 industrial sockets - 16 A - 2P+E - 220V AC - IP67 PKZM709
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKZM709 PratiKa coupler socket - 3-grens outlet - 16 A - 2P+E - 220V AC - IP67.
Technical Specifications
- Manufacturer part number (MPN)
- PKZM709
- EAN / GTIN
- 3303432340926
- Sales unit
- pcs
- Package quantity
- 9 pcs
- Rated current
- 16 A
- Range
- Mureva
- Product or component type
- Multiple adapter
- Accessory / separate part category
- Adaptation accessory
- Poles description
- 2P + E
- [In] rated current
- 16 A
- [Ue] rated operational voltage
- 220 V
- Socket number
- 3 ( 16 A )
- Contacts material
- Pins: nickel plated brass; Sleeves: brass
- Plug, socket material
- Housing: self-extinguishing polymer
- Product weight
- 0.61 kg
- Height
- 222 mm
- Width
- 233 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Blue
- Standards
- IEC 60309-1; IEC 60309-2
- IP degree of protection
- IP67 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-11
- Ambient air temperature for operation
- 35 °C ( 86400 s ) ; -25…40 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 9
- Country of origin
- IT
- Warranty (in months)
- 18
- IEC-amperage
- 16 A
- Number of poles
- 3
- Voltage according to EN 60309-2
- 230 V (50+60 Hz) blue
- Identification colour
- Blue
- RAL-number
- 7035
- Degree of protection (IP)
- IP67
- Connection system
- Screwed terminal
- Insert direction
- Angled
- Cable entry
- Gland nut
- Material
- Plastic
- Military model
- No
Standards & Compliance
- HS Code
- 9405.99
Cross References
- EAN 3303432340926
- SAP 1200500609
- Code 82623487
Product Documentation
