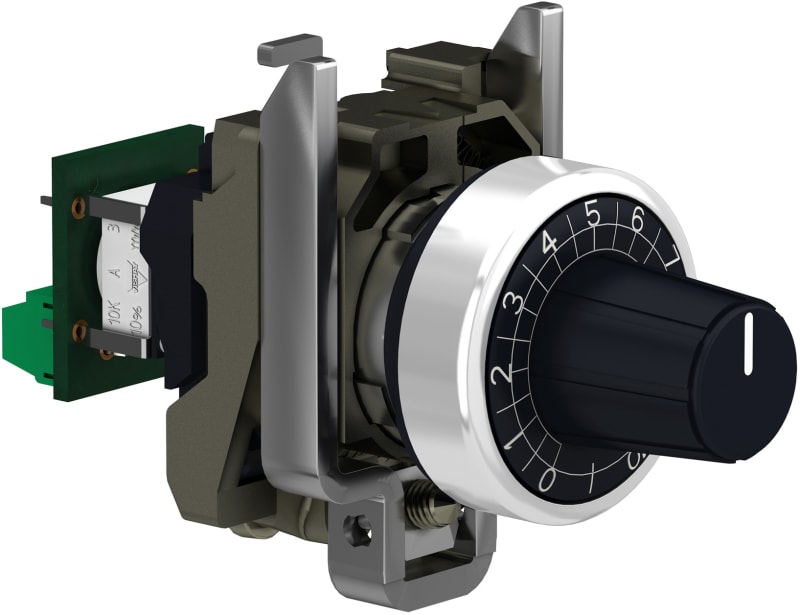

Potentiometer complete 4,7KOHM (XB4BD912R4K7)

Schneider Electric XB4BD912R4K7 — Complete potentiometer, metal, Ø22, 4K7.

Manufacturer part number (MPN)

XB4BD912R4K7

EAN / GTIN

3606480985003

Sales unit

pcs

Package quantity

40 pcs

Range of product

Harmony XB4

Product or component type

Potentiometer

Device short name

XB4

Head type

Standard

Device presentation

Complete product

Bezel material

Chromium plated metal

Mounting diameter

22.5 mm

Product compatibility

Ø 6 mm shaft

Sale per indivisible quantity

1

CAD overall width

30 mm

CAD overall height

47 mm

CAD overall depth

82 mm

Product weight

0.095 kg

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to IEC 60529

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK06 conforming to IEC 50102

Standards

CSA C22.2 No 14; IEC 60947-1; UL 508

Product certifications

CSA; UL listed; BV

Shape of signaling unit head

Round

Operator profile

knurled knob, with (white)

[Us] rated supply voltage

<= 30 V AC; <= 42 V DC

Rated power in W

1 W at 70 °C

Precision of internal conversion resistor

+-10%

Potentiometer characteristic

Linear

Mechanical durability

50000 cycles

Ohmic value

4700 Ohm

Material

Cermet

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Main group

Potentiometer

Group of product

Potentiometer knurled knob

Colour of marking

White

Enclosure Type

UL type 4X/13

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.3 cm

Package 1 Width

4.4 cm

Package 1 Length

8.7 cm

Package 1 Weight

104 g

Unit Type of Package 2

S02

Number of Units in Package 2

40

Package 2 Height

15 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

4.478 kg

Unit Type of Package 3

P06

Number of Units in Package 3

320

Package 3 Height

45 cm

Package 3 Width

80 cm

Package 3 Length

60 cm

Package 3 Weight

44.836 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Power consumption

1 W

Resistance

4700 Ohm

Degree of protection (IP)

IP66

Number of revolutions

0–10

HS Code

8533.40
