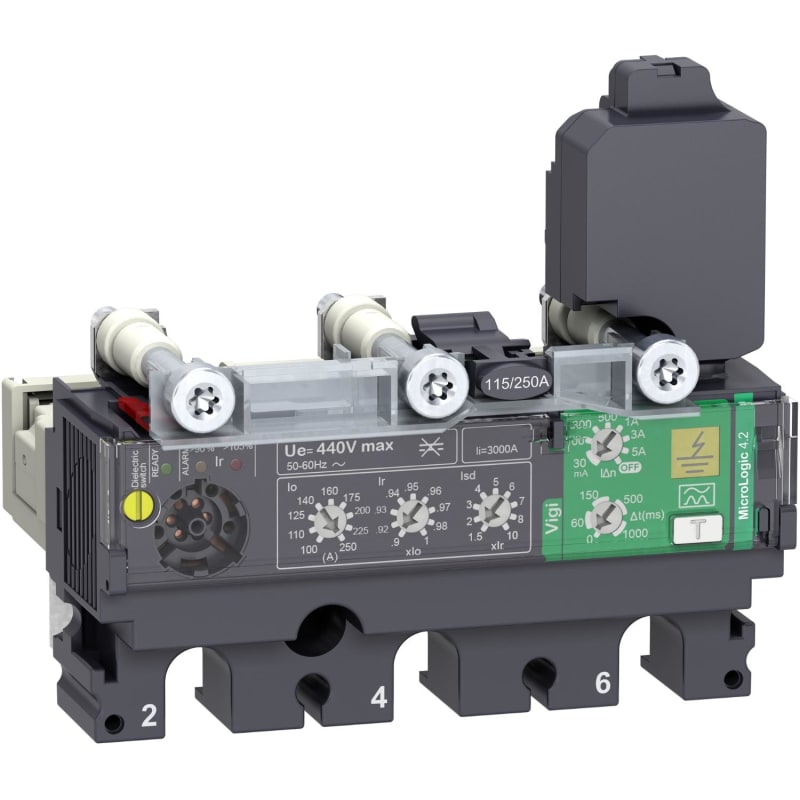

Schneider Electric Trip unit MicroLogic Vigi 4.2, ComPacT NSX250, 3 poles, electronic basic and earth leakage protections, 250A rating C2534V250

Schneider Electric C2534V250 Protection for Circuit breaker ComPacT NSX100-250-electronic protection-Micrologic 4.2 250A 3p with Residual current protection.

Manufacturer part number (MPN)

C2534V250

EAN / GTIN

3606481993830

HS code

8536.90

Sales unit

pcs

Package quantity

10 pcs

Rated current

250 A

Range

ComPacT

Range of product

ComPacT NSX100...250

Product or component type

Trip unit

Trip unit name

MicroLogic 4.2

Trip unit technology

Electronic

Range compatibility

ComPacT NSX250

Device application

Distribution

Poles description

3P

Protected poles description

3D

Trip unit protection functions

LSoIR

Protection type

L : for overload protection (long time); So : for short time short-circuit protection with fixed delay; I : for instantaneous short-circuit protection; R : for earth-leakage protection

Trip unit rating

250 A at 40 °C

[Ue] rated operational voltage

440 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Fixed

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

100...250 A

Long-time protection delay adjustment type tr

Fixed

[tr] long-time protection delay adjustment range

11 s at 7.2 x Ir; 16 s at 6 x Ir; 400 s at 1.5 x Ir

Thermal memory

20 minutes before and after tripping

Short-time protection pick-up adjustment type Isd

Adjustable

[Isd] Short-time protection pick-up adjustment range

1.5...10 x Ir

Short-time protection delay adjustment type tsd

Fixed

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

3000 A

Earth-leakage protection

Integrated

Earth-leakage protection class

Class A

Earth-leakage protection sensitity adjustment type IΔn

Adjustable

[IΔn] earth-leakage protection sensitivity adjustment range

0.03 A; 0.1 A; 0.3 A; 0.5 A; 1 A; 3 A; 5 A

Earth-leakage protection specific mode

OFF using the IΔn rotary switch

Earth-leakage protection time delay adjustement type Δt

Adjustable

[Δt] Earth-leakage protection time delay adjustment range

0 ms; 60 ms; 150 ms; 500 ms; 1 s

Zone selective interlocking ZSI

Without

Local signalling

Flashing LED (green) for ready to operate; LED 105 % Ir (red) for overload; LED 90 % Ir (orange) for overload; Color indicator (yellow) for residual current

Standards

EN/IEC 60947-2

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60947-1

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18
