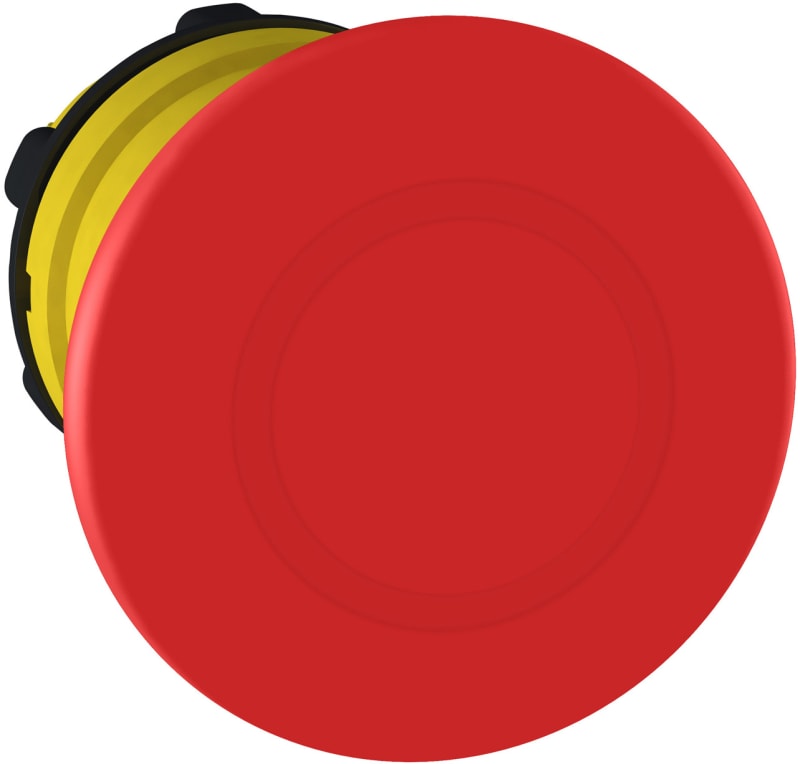

Schneider Electric ZB5AT84 Emergency stop head, switching off, plastic, red mushroom Ø40, Ø22, trigger latching push-pull

Loose emergency stop buttons for use on the XB5 series. Plastic. Can also be used in the XAL boxes.

Manufacturer part number (MPN)

ZB5AT84

EAN / GTIN

3389110907742

Sales unit

pcs

Package quantity

42 pcs

Range of product

Harmony XB5

Product or component type

Head for emergency stop push-button

Product destination

Emergency stop push-button

Device short name

ZB5

Bezel material

Dark grey plastic

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

trigger action and mechanical latching

Reset

Push-pull

Operator profile

Red mushroom Ø 40 mm, unmarked

Device presentation

Basic element

CAD overall width

40 mm

CAD overall height

40 mm

CAD overall depth

56 mm

Product weight

0.05 kg

Mechanical durability

300000 cycles

Station name

XALD 1 cut-out; XALK 1 cut-out

Electrical composition code

C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts usin

HS Code

8538.90

• EAN 3389110907742
• SAP 1000254384
• Code 81142968
