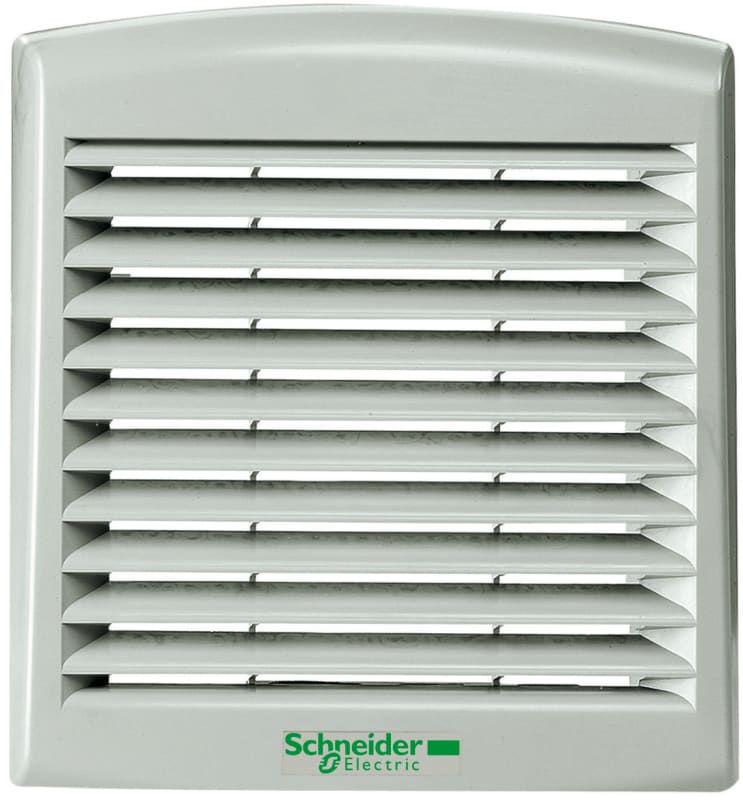

Schneider Electric NSYCAG223LPF outlet grille plastic cut out 223X223MM ext dim 268X248MM IP54
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYCAG223LPF outlet grille plastic cut out 223X223MM ext dim 268X248MM IP54 is listed under Enclosures / Enclosure Cooling. Sales unit: pcs; Package quantity: 10 pcs; Range: ClimaSys; Product: ClimaSys CA; Range compatibility: Prisma Prisma P; ClimaSys ClimaSys CV fan; Certification: CSA.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCAG223LPF
- EAN / GTIN
- 3606480151545
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- ClimaSys
- Product
- ClimaSys CA
- Range compatibility
- Prisma Prisma P; ClimaSys ClimaSys CV fan
- Certification
- CSA
- Product or component type
- Outlet grille
- Accessory / separate part category
- Thermal management accessory
- Accessory / separate part destination
- ClimaSys ventilation system
- fixing mode
- By screws; Clipped
- Device composition
- 1 support frame; 1 external part; 1 G2 M1 synthetic standard filter
- Material
- Injected thermoplastic (ASA PC)
- Colour
- External part: grey (RAL 7035)
- Cut-out dimensions
- 223 x 223 mm
- Height
- External: 268 mm
- Width
- External: 248 mm
- Depth
- External : 18 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 25.500 cm
- Package 1 Length
- 28.000 cm
- Package 1 Weight
- 533.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 10
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 5.330 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 240
- Package 3 Height
- 131.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 143.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Mounting method
- Snap mounting
- Suitable for enclosure building width
- 223 mm
- Suitable for enclosure building depth
- 800 mm
- For max. number of fans
- 1
- With built-in filter
- Yes
- Degree of protection (IP)
- IP54
- Surface finishing
- Untreated
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606480151545
- SAP 1000088967
- Code 8881387
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric NSYS3HF8630P PanelSet S3HF H800XW600XD300 EMC-immunity IP55 RAL7035
Schneider Electric
Schneider Electric KNX brightness and temperature sensor, light grey MTN663991
Schneider Electric
Schneider Electric Thermal overload relay, TeSys Deca, 690VAC, 37 to 50A, 1NO+1NC, class 10A, EverLink BTR screw LRD350
Schneider Electric
Kaedra IP65 modular enclosure 4X18MOD
13437
Schneider Electric
Schneider Electric wall-mounting enclosure polyester monobloc IP66 H1056XW852XD350MM NSYPLM108G
Schneider Electric
Schneider Electric Regulated Power Supply, 100-240V AC, 12V 4.2 A, single phase, Modular ABLM1A12042
Schneider Electric
Schneider Electric Exiway - Battery - 6.4V - 1.55AH - LiFePo OVA51172
Schneider Electric
Schneider Electric NSYS3D4620P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 400X600X200MM, IP66, IK10
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYCAG223LPF?
- NSYCAG223LPF can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYCAG223LPF.
- What is the HS code for NSYCAG223LPF?
- The customs tariff (HS) code for NSYCAG223LPF is 3926.90.
- Who manufactures NSYCAG223LPF?
- NSYCAG223LPF is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYCAG223LPF?
- Yes — the NSYCAG223LPF datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYCAG223LPF?
- The minimum order quantity is 1.
- Is NSYCAG223LPF available?
- Yes — NSYCAG223LPF is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
