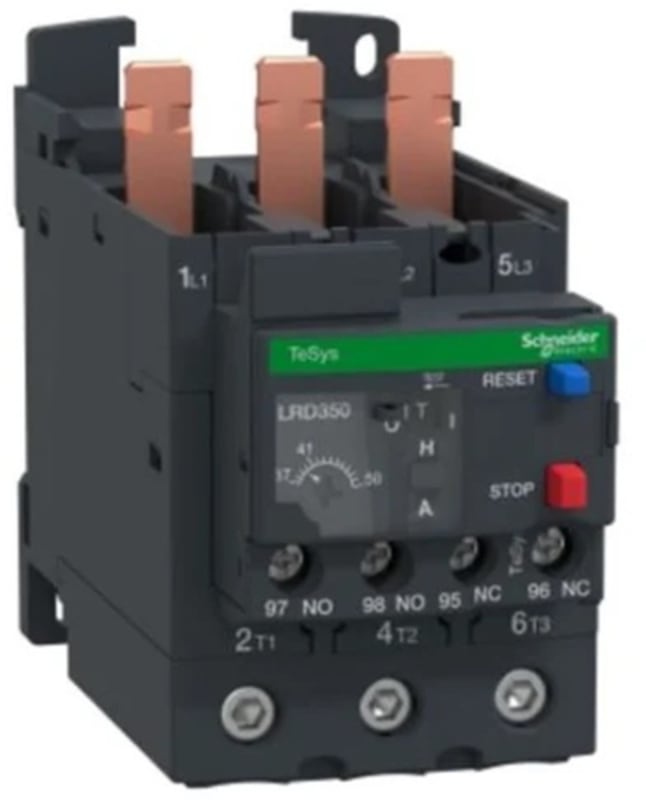

Schneider Electric Thermal overload relay, TeSys Deca, 690VAC, 37 to 50A, 1NO+1NC, class 10A, EverLink BTR screw LRD350

Schneider Electric LRD350 — TeSys thermal overload relay. Bimetallic thermal overload relay for motor protection. Thermal protection, series D. Up to 150 A (0.06 - 75 kW) for both AC and DC motor controls. Integrated manual/automatic reset.

Manufacturer part number (MPN)

LRD350 EAN / GTIN: 3389119215503 HS code: 8536.90 Sales unit: pcs Package quantity: 13 pcs Setting range: 37-50 A Range: TeSys; TeSys Deca Product name: TeSys LRD; TeSys Deca Product or component type: Differential thermal overload relay Device short name: LRD Relay application: Motor protection Product compatibility: LC1D65A; LC1D50A; LC1D40A Network type: DC; AC Thermal overload class: Class 10A conforming to IEC 60947-4-1 Thermal protection adjustment range: 37…50 A [Ui] rated insulation voltage: Power circuit: 600 V conforming to CSA; Power circuit: 600 V conforming to UL; Power circuit: 690 V conforming to IEC 60947-4-1 Network frequency: 0...400 Hz Mounting support: Plate, with specific accessories; Rail, with specific accessories; Under contactor Tripping threshold: 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 Auxiliary contact composition: 1 NO + 1 NC [Ith] conventional free air thermal current: 5 A for signalling circuit Permissible current: 0.9

HS Code

8536.90

• EAN 3389119215503
• SAP 1000015962
• Code 8486847
