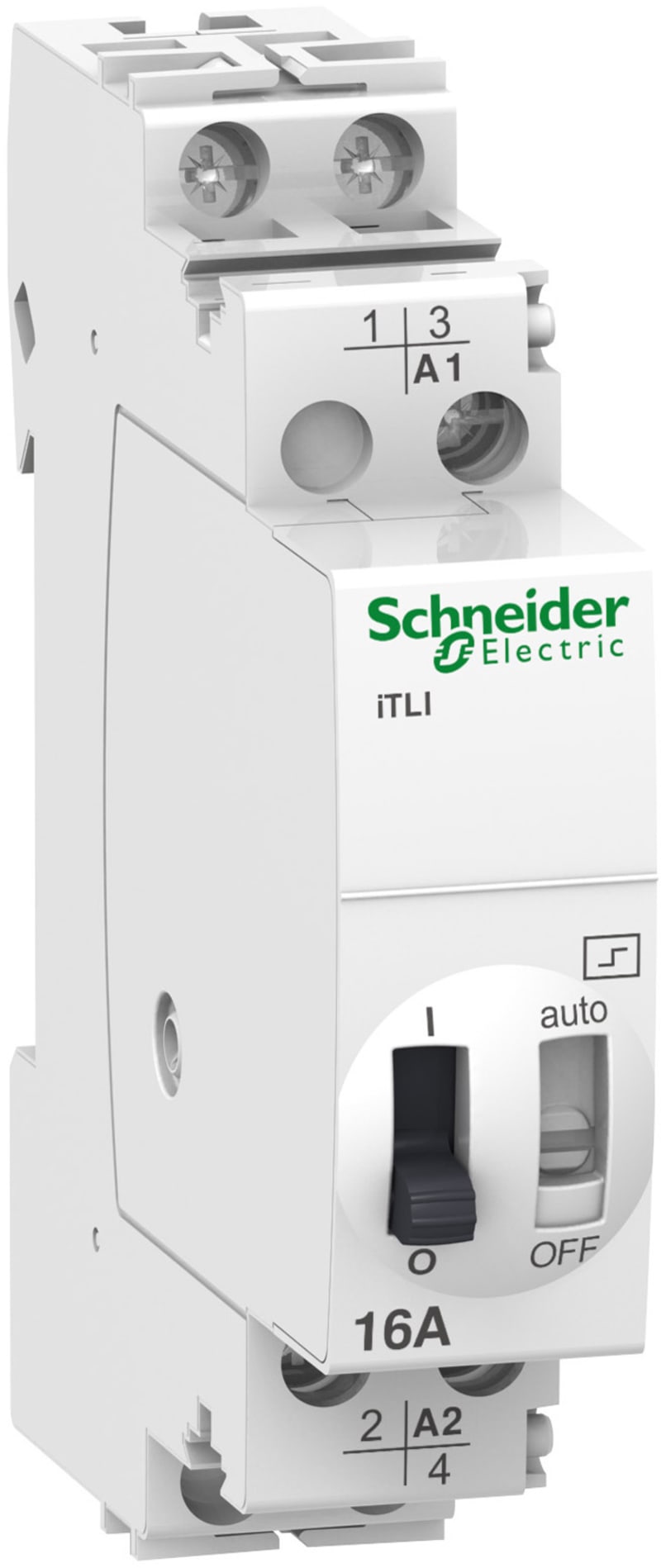

Schneider Electric impulse relay iTLI - 2P - 1NO+1NC - 16A - coil 24 VDC - 48 VAC 50/60Hz A9C30215

Schneider Electric A9C30215 Vekselrelè iTLI16A 1NO1NC 48VAC 24VDC.

Manufacturer part number (MPN)

A9C30215

EAN / GTIN

3606480091995

Sales unit

pcs

Package quantity

12 pcs

Voltage

48 V AC

range of product

Acti9

Product name

Acti9 iTL

Product or component type

Impulse relay

Device short name

iTLi

Device application

Changeover relay

Poles

2P

Pole contact composition

1 NO + 1 NC

[In] rated current

16 A

Network type

AC

[Uc] control circuit voltage

48 V AC 50/60 Hz; 24 V DC

Network frequency

50/60 Hz

[Ue] rated operational voltage

250 V AC 50/60 Hz

Control type

Coil disconnection; Remote and manual control

Control signal type

Impulse

Switching frequency

5 switching operations/minute; 100 switching operations/day

Impulse duration

50 ms...1 s

Remote control type

Illuminated push-button 3 mA

Local signalling

ON/OFF indication

mounting mode

Fixed

Mounting support

DIN rail

9 mm pitches

2

Height

84 mm

Width

18 mm

Depth

60 mm

Electrical durability

AC-21: 200000 cycles; AC-22: 100000 cycles

Connections - terminals

Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid; Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end; Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible; Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule

Wire stripping length

11 mm

Tightening torque

1 N.m

Range compatibility

Acti9 iATEt; Acti9 iATLc; Acti9 iATLc+s; Acti9 iATLm; Acti9 iATLs; Acti9 iETL iTL 16; Acti9 iATLc+c

Standards

EN 669-2-2; EN 669-1

Product certifications

CCC; GOST

Quality labels

KEMA; IMQ; NF; VDE; CEBEC

Noise level

60 dB

IP degree of protection

IP20 conforming to IEC 60529 (on opening); IP40 conforming to IEC 60529 (in enclosure)

Pollution degree

3

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-40…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

144

Warranty (in months)

18

Mounting method

DIN rail

Function

Mechanical switch

Built-in depth

43.5 mm

Width in number of modular spacings

1

Type of control voltage 1

AC

Type of control voltage 2

DC

Voltage type (supply voltage)

AC

Max. switching current (cos phi = 0.6)

16 A

Max. incandescent lamp load

1600 W

Max. load fluorescent lamp

1300 VA

Rated switch current

16 A

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

Belgium

HS Code

8536.41

• EAN 3606480091995
• SAP 1000325944
• Code 8839408
