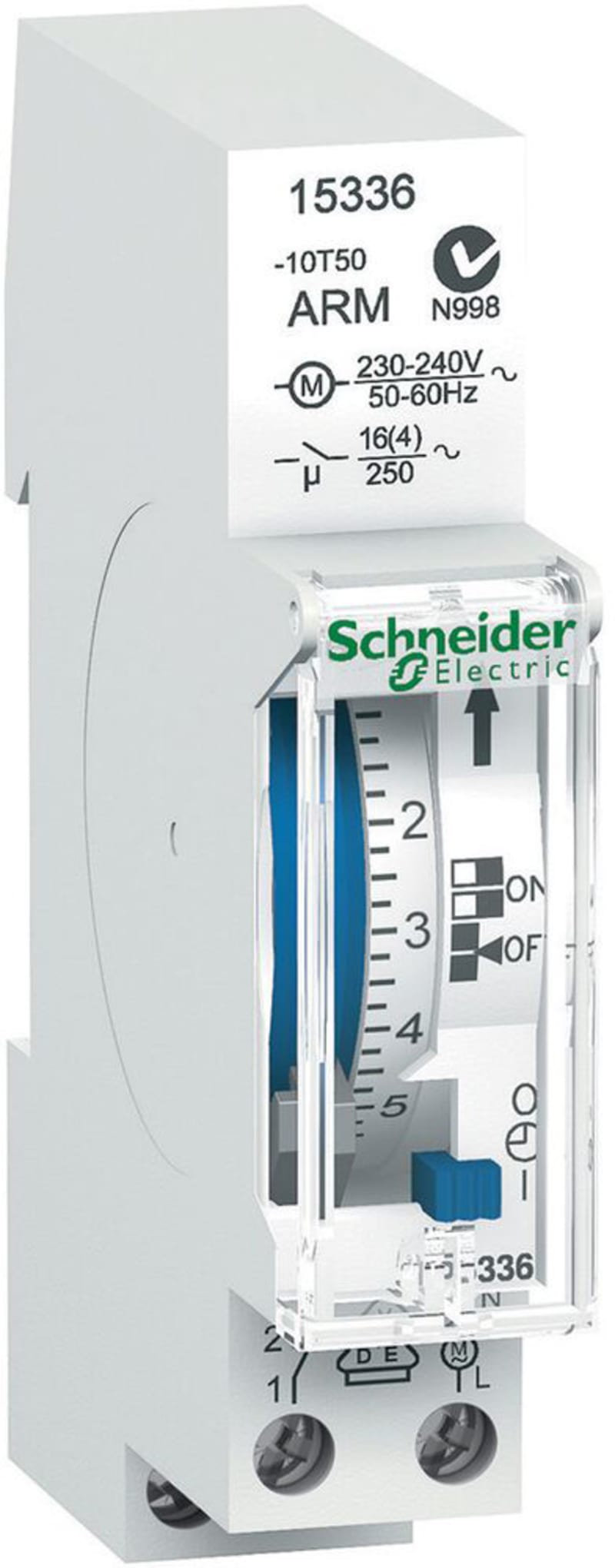

Schneider Electric 15336 IH Mechanical Time Switch, 18 mm, 1 Module
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 15336 IH mechanical time switch, 18 mm width, 1 module.
Technical Specifications
- Manufacturer part number (MPN)
- 15336
- EAN / GTIN
- 3303430153368
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Shortest switching time channel 1
- 15 min
- Mounting method
- DIN rail
- Number of channels
- 1
- Supply voltage
- 230–240 V
- Voltage type (supply voltage)
- AC
- Frequency supply voltage
- 50–60 Hz
- Autonomy in hours
- 150
- Autonomy in years
- 10
- Accuracy per day
- 1 s
- 60 min program
- No
- 24 h program
- Yes
- Weekly program
- No
- Annual program
- No
- Mains synchronous
- No
- Quartz controlled
- No
- Contact type
- Breaker contact (NC)
- Program shift divide 1
- 15 min
- Automatic switching summer/winter time
- No
- Suitable for manual operation
- Yes
- Switching preselection
- Yes
- Nominal switching current at 250 V AC
- 16 A
- Max. switching power LED
- 300 W
- Potential free switch contact
- Yes
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 1
- Width
- 18 mm
- Height
- 90 mm
- Depth
- 66 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9107.00
Cross References
- EAN 3303430153368
- SAP 1000022406
- Code 8199534
Product Documentation
More from Schneider Electric
Schneider Electric

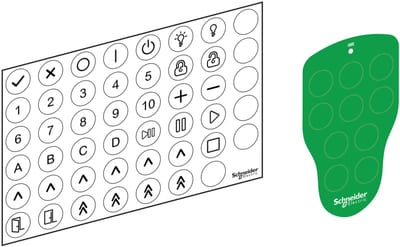

Schneider Electric Label kit with legend option ZARC620
Schneider Electric

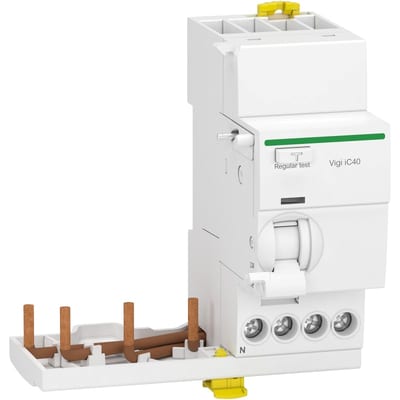

Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 3P+N, 25A, A-SI type, instantaneous, 300MA, 400VAC A9Y85725
Schneider Electric
Schneider Electric Sensor plug - 3200 A - MTZ3 LV847823
Schneider Electric

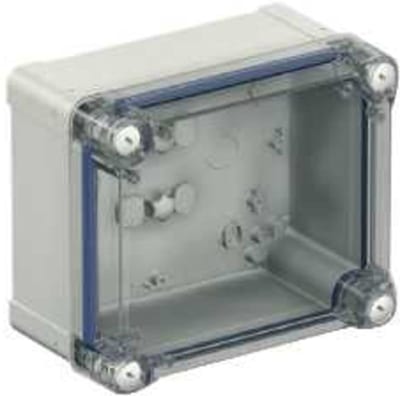

Schneider Electric ABS industrial box, PanelSeT TBS, 121X105X192MM, int. 105X100X175MM, high transparent cover, IP66, IK07, RAL 7035 NSYTBS191210HT
Schneider Electric

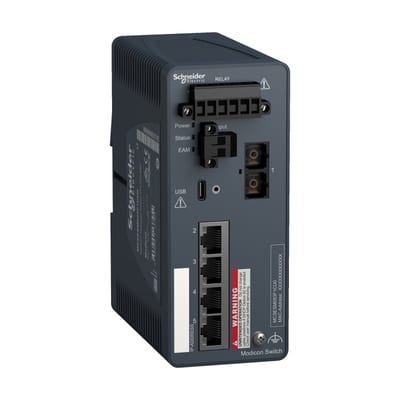

Eth Managed Switch 4TX/1FX-MM
MCSESM053F1CU0
Schneider Electric

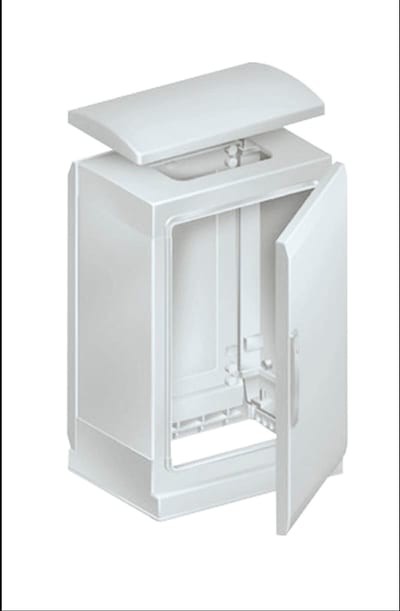

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000X1000X320 IP44 NSYPLAZT10103G
Schneider Electric

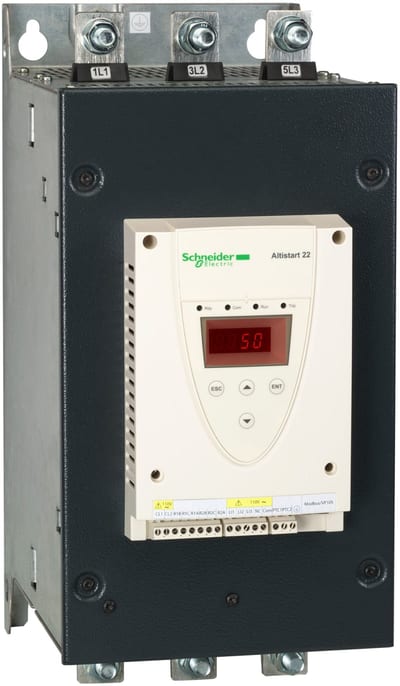

Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(110kW)/400...440V(220kW) ATS22C41Q
Schneider Electric

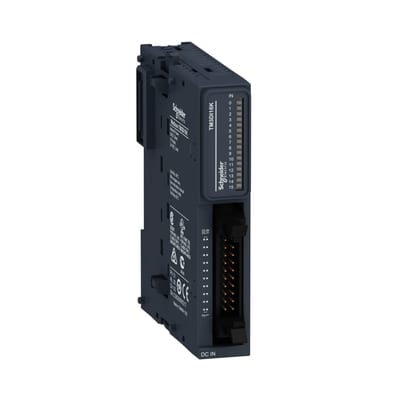

Schneider Electric Modicon TM3 - 16 inputs (HE10) 24VDC TM3DI16K
