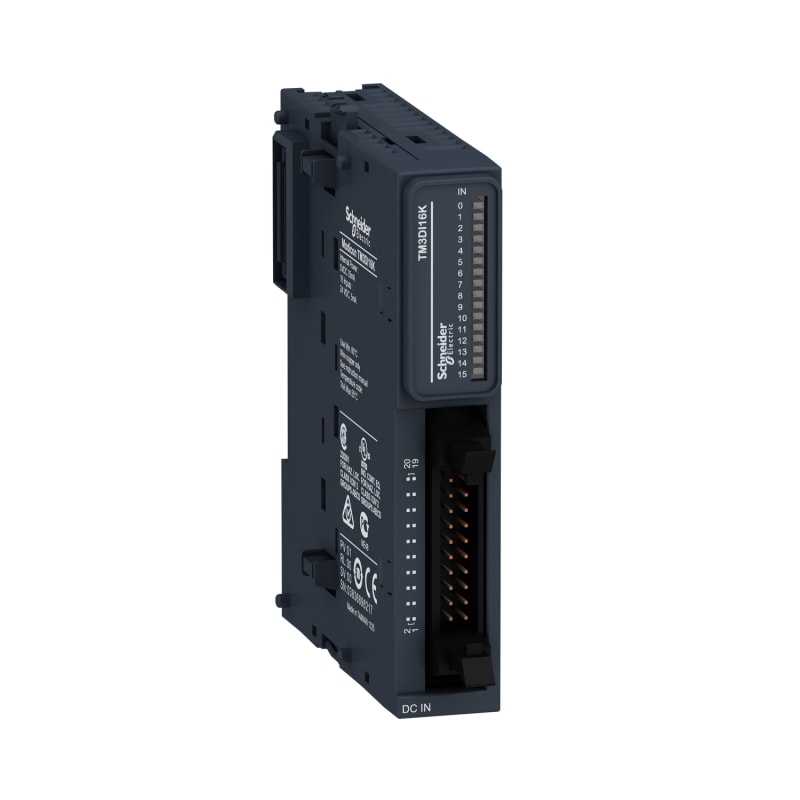

Schneider Electric Modicon TM3 - 16 inputs (HE10) 24VDC TM3DI16K
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric TM3DI16K Modicon PLC accessory - IO expansion with 16 digital inputs via HE10 connector.
Technical Specifications
- Manufacturer part number (MPN)
- TM3DI16K
- EAN / GTIN
- 3606480611407
- Sales unit
- pcs
- Package quantity
- 42 pcs
- Range of product
- Modicon TM3
- Product or component type
- Discrete input module
- Range compatibility
- Modicon M241; Modicon M251; Modicon M221; Modicon M262
- Device application
- Industrial application
- Discrete input number
- 16
- Discrete input voltage
- 24 V DC
- Discrete input logic
- Sink or source (positive/negative)
- Discrete input compatibility
- 16 conforming to IEC 61131-2 type 3
- Discrete input current
- 5 mA
- Voltage state 1 guaranteed
- 15...28.8 V DC
- Voltage state 0 guaranteed
- 0...5 V DC
- Current state 1 guaranteed
- >= 2.5 mA
- Current state 0 guaranteed
- <= 1 mA
- Input impedance
- 4.4 kOhm
- Response time on input
- 4 ms (maximum (turn on)); 4 ms (maximum (turn off))
- Safety reliability data
- MTBF = 250 years 40 °C
- Sensor power supply
- 19.2…28.8 V
- Power supply type
- Electronic powered by internal bus
- Typical current consumption
- 34 mA at 5 V DC; 5 mA
- Electrical connection
- HE-10 connector for inputs
- Maximum cable distance between devices
- Unshielded cable: <50 m for regular input
- Isolation between channels and bus
- 500 V AC
- Local signalling
- 1 LED per channel (green) for input status
- Housing colour
- Grey
- Mounting support
- Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit
- Height
- 90 mm
- Width
- 21.4 mm
- Depth
- 81.3 mm
- Product weight
- 0.65 kg
- IP degree of protection
- IP20
- Protective treatment
- None
- Marking
- CE
- Product certifications
- CE; CULus; UKCA; RCM; EAC; CULus HazLoc
- Standards
- IEC 61131-2
- Ambient air temperature for operation
- -10…35 °C (vertical installation); -10…55 °C (horizontal installation)
- Ambient air temperature for storage
- -25…70 °C
- Relative humidity
- 10…95 % without condensation for operation; 10…95 % without condensation for storage
- Operating altitude
- 0...2000 m
- Pollution degree
- 2
- Vibration resistance
- 3.5 mm (f = 5…8.4 Hz) on DIN rail; 3 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on panel mounting; 3 gn (f = 8.4…150 Hz) on panel mounting
- Shock resistance
- 15 gn for 11 ms
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 42
- Number of Units in Package 3
- 504
- Country of origin
- TW
- Warranty (in months)
- 18
- Power consumption
- 1.1 W
- Supply voltage DC
- 24 V
- Voltage type (supply voltage)
- DC
- Number of digital inputs
- 16
- Digital inputs configurable
- No
- Digital outputs configurable
- No
- Input current at signal 1
- 5 mA
- Permitted voltage at input
- 19.2–28.8 V
- Type of voltage (input voltage)
- AC/DC
- Type of digital output
- None
- Type of output voltage
- AC/DC
- Short-circuit protection, outputs available
- No
- Redundancy
- No
- Time delay at signal change
- 4 ms
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
