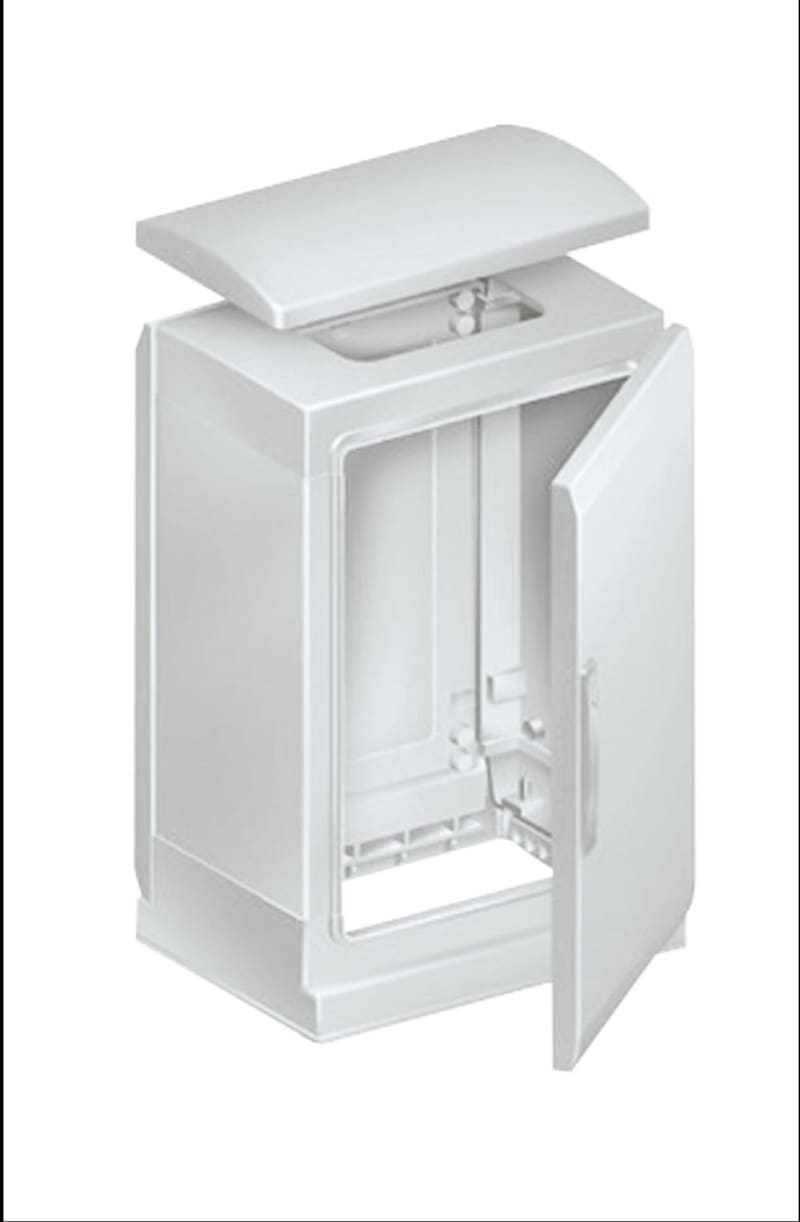

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000X1000X320 IP44 NSYPLAZT10103G
Pricing
Request a quote
We reply within 24 hours
Product Description
THLS REGNT TO.SOK 7035 1000X1000X320.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAZT10103G
- EAN / GTIN
- 3606480775956
- Sales unit
- pcs
- IP rating
- IP44
- Dimensions
- 1000×1000×320
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAZT
- Nominal height
- 1000 mm
- Nominal width
- 1000 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 2 door; 2 rear panel; 1 canopy; 1 plinth
- Body type
- Open top and bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 2 door(s)
- Door opening side
- Right and left (180 °)
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Accessibility for operation
- Rear; Bottom; Front; Top
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 3
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 1000 mm
- Depth
- 320 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 1295 N
- Max. permitted load of the door(s) according to IEC 62208
- 294 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480775956
- SAP 1000752565
- Code 8488697
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(110kW)/400...440V(220kW) ATS22C41Q
Schneider Electric
Schneider Electric Modicon TM3 - 16 inputs (HE10) 24VDC TM3DI16K
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X400X500MM, IP55 NSYSFN20450
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 4 pole (4NO), AC-1 ≤440V 440A, advanced version, 24…48V wide band AC/DC coil LC1G3304BEEA
Schneider Electric

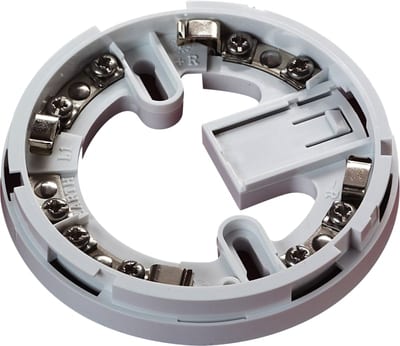

Plinth 45681-215APO (FFS06725207)
Schneider Electric

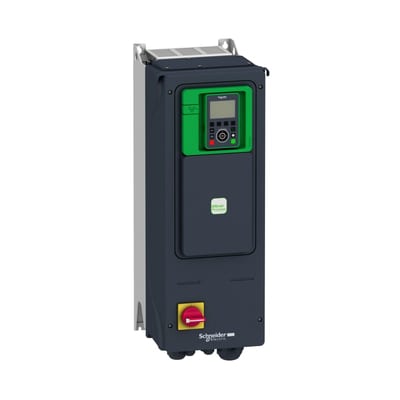

Schneider Electric variable speed drive ATV650 - 0.75KW/1HP - 380...480V - IP55 - disconnect switch ATV650U07N4E
Schneider Electric

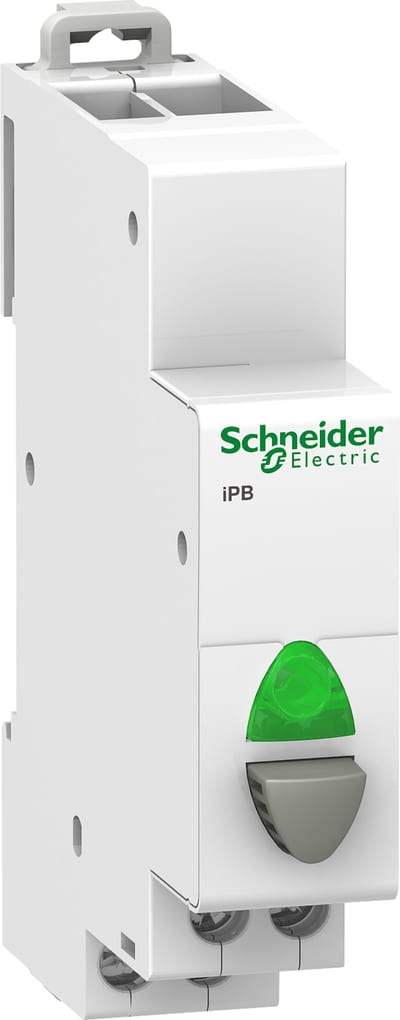

Schneider Electric Acti9 iPB 1NO Push-Button Grey, Green LED 12-48 V AC/DC A9E18038
