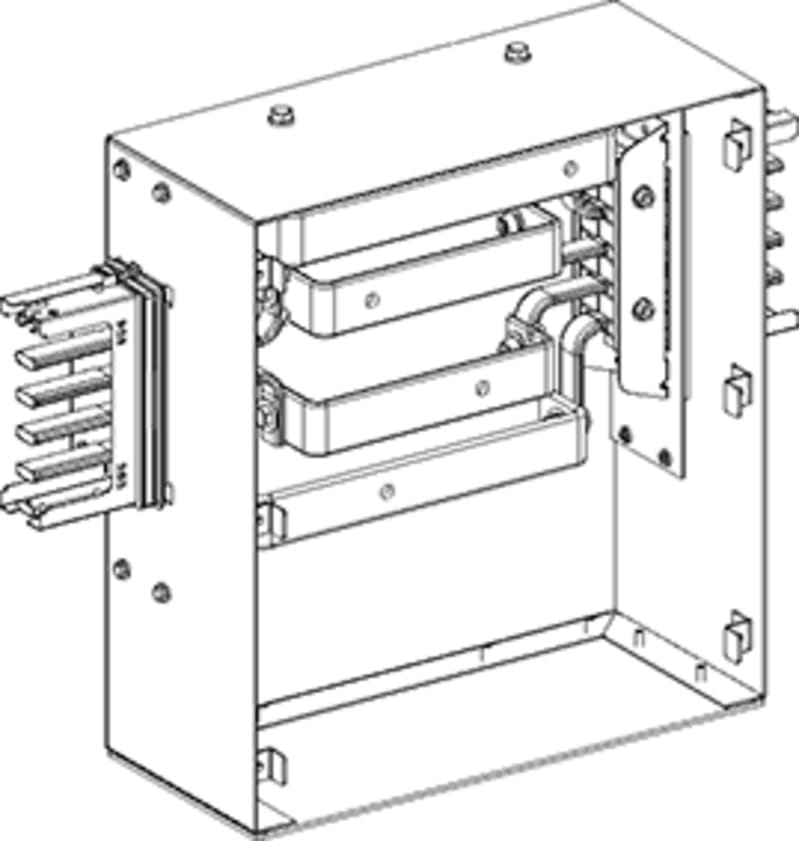

Center feed 100-250A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSA250ABT4 CENTER FEED 100-250A.
Technical Specifications
- Manufacturer part number (MPN)
- KSA250ABT4
- EAN / GTIN
- 3606480004032
- Sales unit
- pcs
- Range of product
- Canalis
- Product name
- KS
- Device short name
- KSA
- Product compatibility
- Canalis KSA busbar trunking 100…250 A
- Offer type
- Classic
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 250 A
- [Ue] rated operational voltage
- 230...690 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Central
- mounting mode
- By screws
- Mounting support
- Busbar
- Body material
- Metal
- Connections - terminals
- Lug for 240 mm² flexible; Lug for 240 mm² rigid
- Width
- 585 mm
- Depth
- 173.5 mm
- Height
- 436 mm
- Product weight
- 13 kg
- Standards
- IEC 61439-1; IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 20.500 cm
- Package 1 Width
- 48.000 cm
- Package 1 Length
- 63.300 cm
- Package 1 Weight
- 13.700 kg
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 5
- Package 2 Height
- 82.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 74.900 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 5
- Length
- 585 mm
- Degree of protection (IP)
- IP55
- Power supply position
- Centre
- Rated voltage AC 50 Hz
- 230–690 V
- Rated current AC 50 Hz
- 250 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480004032
- SAP 1000524090
- Code 8421013
Product Documentation
