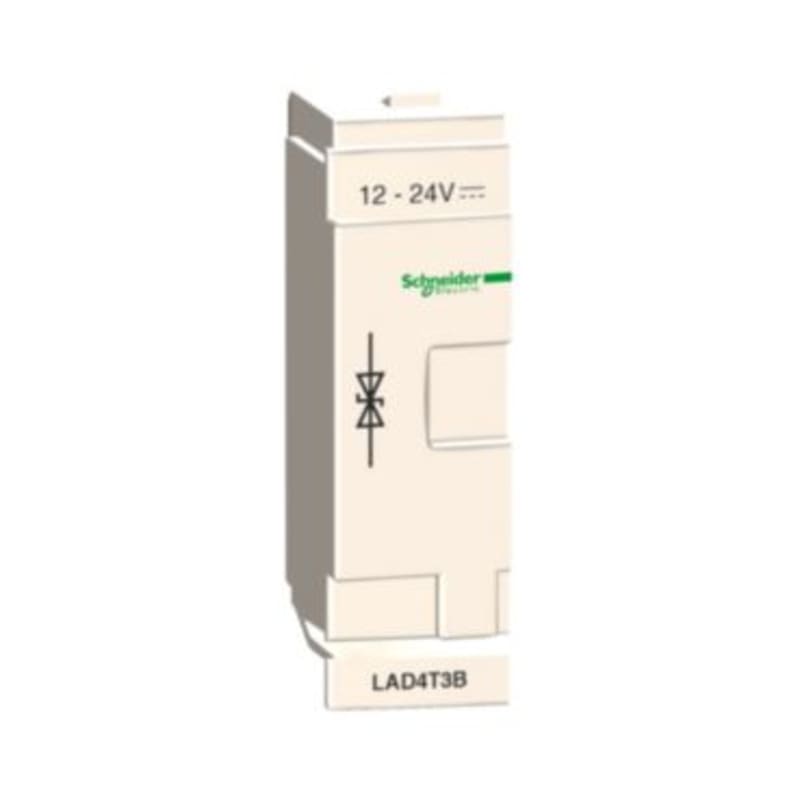

Schneider Electric TeSys D - suppressor module - bidirectional peak limiting diode - 24 V AC/DC LAD4T3B
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LAD4T3B D40-65A diode <24V AC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- LAD4T3B
- EAN / GTIN
- 3389119410243
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- TeSys; TeSys Deca
- Device short name
- LAD4
- Product or component type
- Suppressor module
- Product compatibility
- 3P LC1D40A...D80A; 4P LC1DT60A...DT80A
- Mounting location
- Front
- mounting mode
- By clips
- Suppressor technology
- Bidirectional peak limiting diode
- [Uc] control circuit voltage
- 12...24 V AC/DC; 50/60 Hz
- Maximum peak voltage
- 2 Uc
- Product weight
- 0.02 kg
- Colour
- Dark grey
- Standards
- IEC 60947-5-1; EN 60947-5-1; CSA C22.2 No 60947-5-1; UL 60947-5-1; GB/T 14048.5
- Product certifications
- UL; CSA
- IP degree of protection
- IP2X conforming to IEC 60529
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…80 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.500 cm
- Package 1 Width
- 5.500 cm
- Package 1 Length
- 8.000 cm
- Package 1 Weight
- 17.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 6.500 cm
- Package 2 Width
- 7.400 cm
- Package 2 Length
- 12.300 cm
- Package 2 Weight
- 188.000 g
- Unit Type of Package 3
- S01
- Number of Units in Package 3
- 100
- Package 3 Height
- 15.000 cm
- Package 3 Width
- 15.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 2.044 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Function
- Diode
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage AC 60 Hz
- 24 V
- Rated control supply voltage DC
- 12–24 V
- Voltage type (operating voltage)
- AC/DC
- With LED indication
- No
- Operating voltage AC 50 Hz
- 12–24 V
- Operating voltage AC 60 Hz
- 12–24 V
- Operating voltage DC
- 12–24 V
- Voltage type for actuating
- AC/DC
