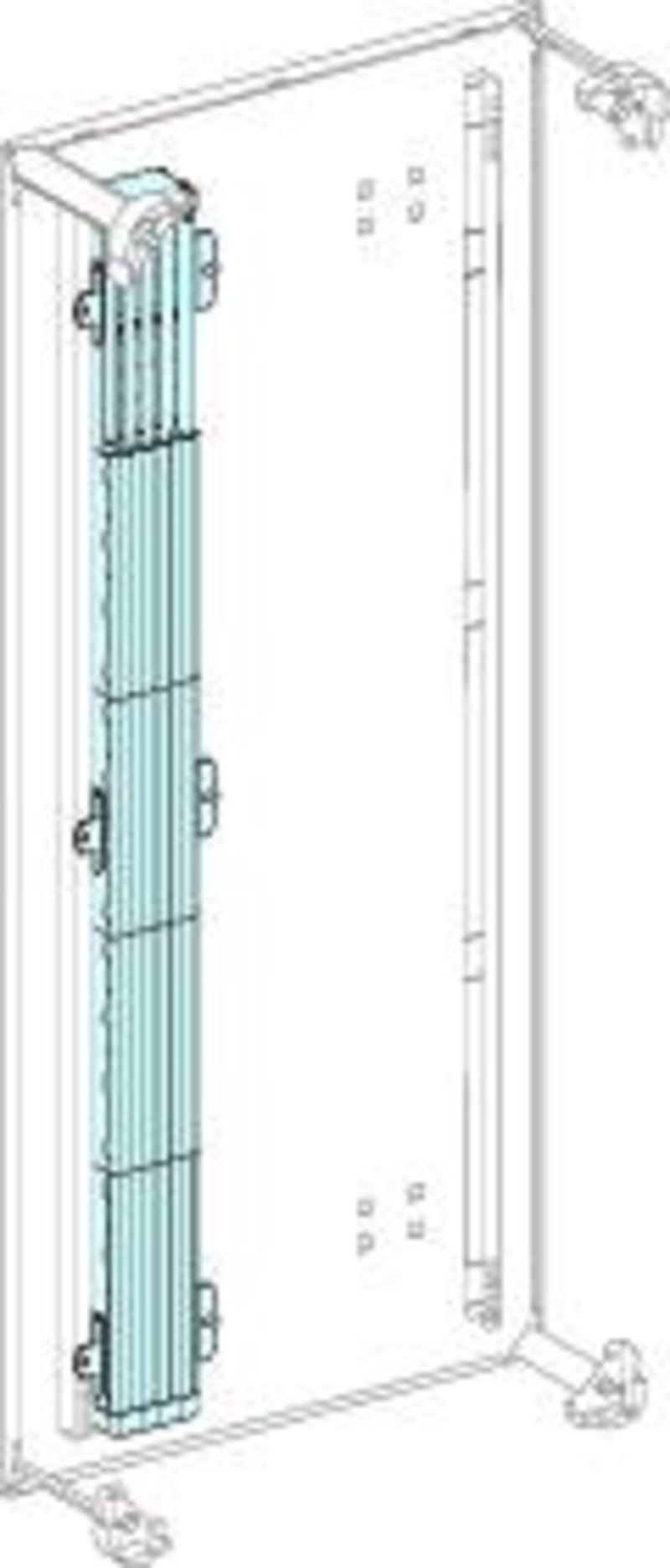

Busbar Linergy BW 400A 4P L1400 G/P

Schneider Electric LVS04128 Busbar Linergy BW (Powerclip)-insulated busbar package for PrismaSeT G/P 400A 4P length 1400mm.

Manufacturer part number (MPN)

LVS04128

EAN / GTIN

3606481870223

Sales unit

pcs

Rated current

400 A

Number of poles

4P

Range

Linergy

Range of product

Linergy

Product or component type

Busbar

Product name

Linergy BW

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure

IP degree of protection

IPxx B

Busbar description

Insulated bar

Quantity per set

Set of 1

Poles description

4P

Installation direction

Vertical, operating position: rear

installation description

Cubicle - width 650 mm; Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm

[Ui] rated insulation voltage

750 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ie] rated operational current

400 A

[Icw] rated short-time withstand current

20 kA (1 s)

[Ipk] rated peak withstand current

52.5 kA

I²t on activation

400000 kA².s

Permissible current

400 A

Length

1400 mm

Width

85 mm

Depth

45 mm

Product weight

8.94 kg

Type of busbar connection

M6 threaded hole

Connection pitch

Connection each 25 mm

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Mechanical robustness

Seismic tests structure reinforcement - 2.5G conforming to IEC 60068-2-57

Number of Units in Package 1

1

Number of Units in Package 2

27

Country of origin

FR

Warranty (in months)

18

Model

Flat

Flexible

No

Surface protection

Untreated

Rated current In

400 A

HS Code

8544.49

• EAN 3606481870223
• SAP 1200546592
• Code 82880750
