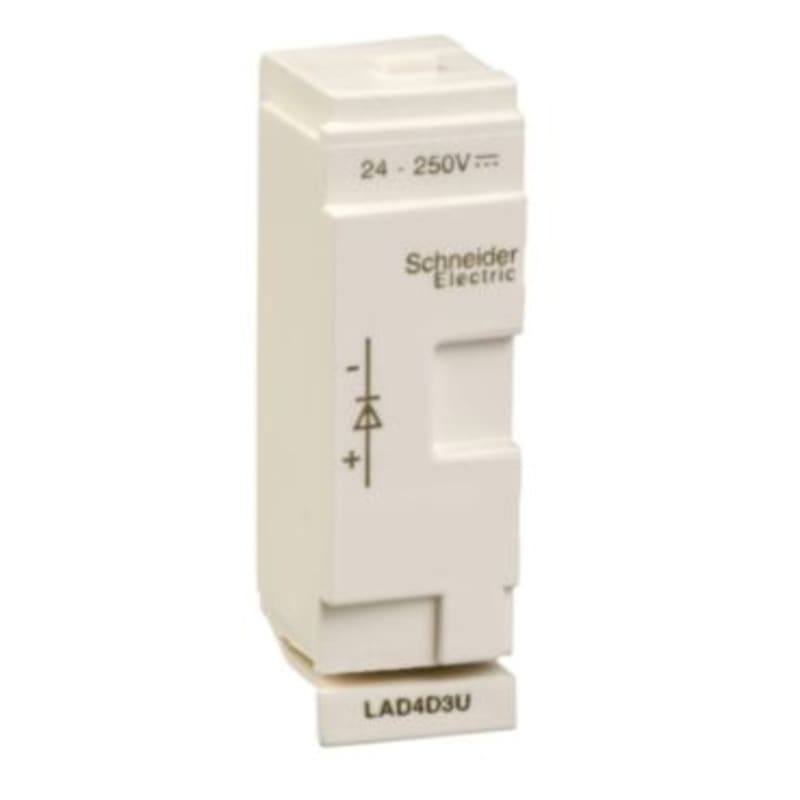

Schneider Electric D40A to D65A Diode 24-250VDC Suppressor LAD4D3U
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LAD4D3U D40-65A diode 24-250V DC.
Technical Specifications
- Manufacturer part number (MPN)
- LAD4D3U
- EAN / GTIN
- 3389119410236
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 24-250 V
- Range
- TeSys; TeSys Deca
- Device short name
- LAD4
- Product or component type
- Suppressor module
- Product compatibility
- 3P LC1D40A...D80A; 4P LC1DT60A...DT80A
- Mounting location
- Front
- mounting mode
- By clips
- Suppressor technology
- Flywheel diode
- [Uc] control circuit voltage
- 24...250 V DC
- Maximum peak voltage
- 1 Uc
- Product weight
- 0.02 kg
- Colour
- Dark grey
- Standards
- IEC 60947-5-1; EN 60947-5-1; CSA C22.2 No 60947-5-1; UL 60947-5-1; GB/T 14048.5
- Product certifications
- UL; CSA
- IP degree of protection
- IP2X conforming to IEC 60529
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 100
- Country of origin
- CZ
- Warranty (in months)
- 18
- Function
- Diode
- Rated control supply voltage DC
- 24–250 V
- Voltage type (operating voltage)
- DC
- With LED indication
- No
- Operating voltage DC
- 24–250 V
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3389119410236
- SAP 1000018280
- Code 8139435
Product Documentation
