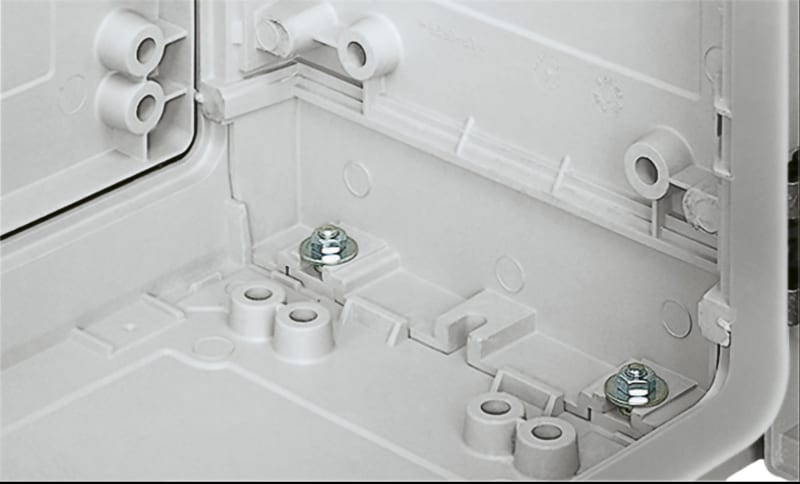

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1500X750X320 IP44 NSYPLAZT1573G
Pricing
Request a quote
We reply within 24 hours
Product Description
THLSA REGNT TO.SOK 7035 1500X750X320.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAZT1573G
- EAN / GTIN
- 3606480776175
- Sales unit
- pcs
- IP rating
- IP44
- Dimensions
- 1500×750×320
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAZT
- Nominal height
- 1500 mm
- Nominal width
- 750 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 1 rear panel; 1 door; 1 canopy; 1 plinth
- Body type
- Open top and bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 1 door(s)
- Door opening side
- Reversible (180 °)
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Accessibility for operation
- Top; Front; Bottom; Rear
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 3
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 750 mm
- Height
- 1500 mm
- Depth
- 320 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 1461 N
- Max. permitted load of the door(s) according to IEC 62208
- 324 N
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480776175
- SAP 1000752587
- Code 8489561
Product Documentation
More from Schneider Electric
Schneider Electric
Emergency stop head square with LED 120V
ZB5AS84W2G
Schneider Electric
Schneider Electric soft STARTER-ATS22-CONTROL110V-POWER 208V(20hp)/230V(25hp)/460V(50hp)/575V(60hp) ATS22D75S6U
Schneider Electric
Schneider Electric Miniature circuit-breaker, ACTI9 C120H, 3P, 100 A, B curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2) A9N18425
Schneider Electric
Schneider Electric controller M241 24 IO relay Ethernet CAN master TM241CEC24R
Schneider Electric
Schneider Electric Connection Horiz. LGYE MTZ2/NW 3200A 4P Prisma P LVS04498
Schneider Electric
Schneider Electric Pilot light, Harmony XB5, grey plastic, green, 22mm, universal LED, plain lens, 24V AC DC, compact push in terminals XB5AVB35
Schneider Electric
2 pcs Profalux lock, 1 key
42878
Schneider Electric

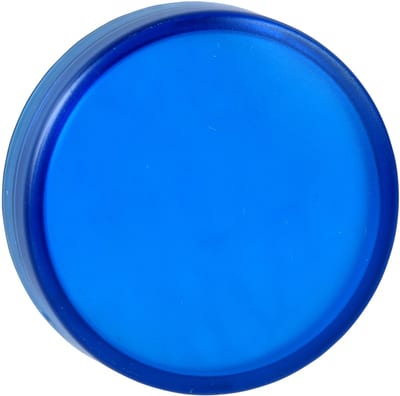

Pilot Light Cap Blue(diode)
