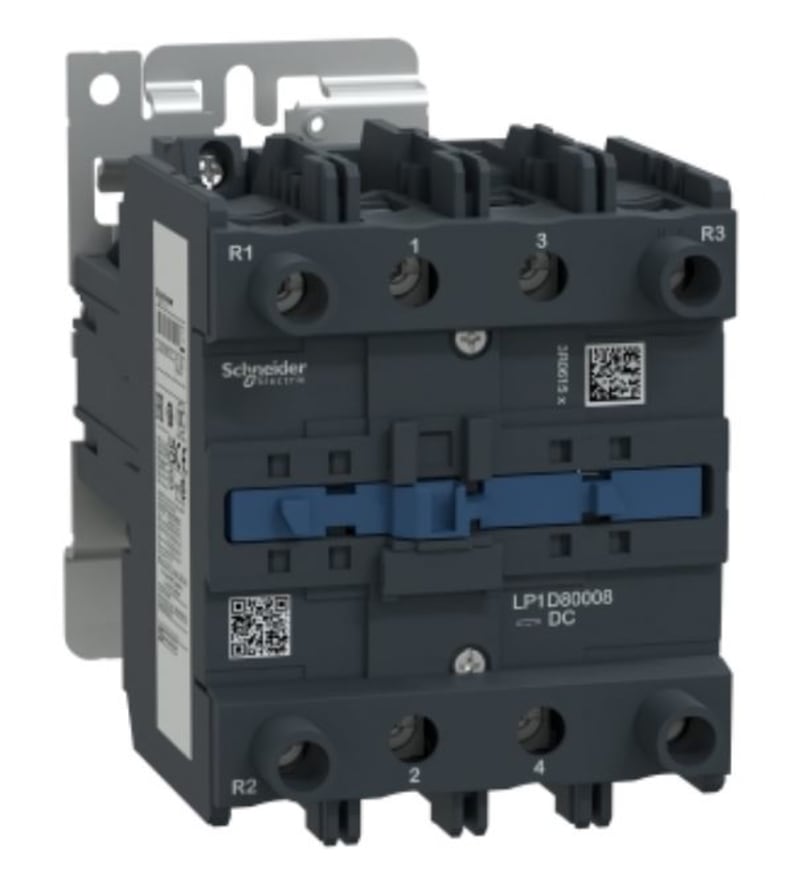

Schneider Electric TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 24 V DC coil LP1D80008BD

Schneider Electric LP1D80008BD Contactor 125AC1 2NO/2NC 24VDC.

Manufacturer part number (MPN)

LP1D80008BD

EAN / GTIN

3389110234329

HS code

8536.90

Sales unit

pcs

Voltage

24 V DC

Contact configuration

2 NO / 2 NC

Range

TeSys

Range of product

TeSys Deca

Product or component type

Contactor

Device short name

LP1D

Contactor application

Resistive load

Utilisation category

AC-1

Poles description

4P

[Ue] rated operational voltage

Power circuit: <= 690 V AC 25...400 Hz

[Ie] rated operational current

125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

[Uc] control circuit voltage

24 V DC

Compatibility code

LP1D

Pole contact composition

2 NO + 2 NC

Protective cover

With

[Ith] conventional free air thermal current

125 A (at 60 °C) for power circuit

Irms rated making capacity

1100 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

1100 A at 440 V for power circuit conforming to IEC 60947

[Icw] rated short-time withstand current

135 A 40 °C - 10 min for power circuit; 320 A 40 °C - 1 min for power circuit; 640 A 40 °C - 10 s for power circuit; 990 A 40 °C - 1 s for power circuit

Associated fuse rating

200 A gG at <= 690 V coordination type 1 for power circuit; 160 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

0.8 mOhm - Ith 125 A 50 Hz for power circuit

Power dissipation per pole

12.5 W AC-1

[Ui] rated insulation voltage

Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Power circuit: 1000 V conforming to IEC 60947-4-1

Overvoltage category

III

Pollution degree

3

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947

Safety reliability level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Mechanical durability

10 Mcycles

Electrical durability

0.8 Mcycles 125 A AC-1 at Ue <= 440 V

Control circuit type

DC DC standard

Coil technology

Without built-in suppressor module

Control circuit voltage limits

0.1...0.3 Uc (-40…55 °C):drop-out DC; 0.85...1.1 Uc (-40…55 °C):operational DC

Inrush power in W

22 W (at 20 °C)

Hold-in power consumption in W

22 W at 20 °C

Operating time

6...20 ms opening; 20...35 ms closing

Time constant

75 ms

Maximum operating rate

3600 cyc/h at 60 °C

Connections - terminals

Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid; Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end; Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end; Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end; Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end; Power circuit: connector 1 4…50 mm² - cable stiffness: solid; Power circuit: connector 2 4…25 mm² - cable stiffness: solid; Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end

Tightening torque

Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2; Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm; Power circuit: 12 N.m - on connector hexagonal screw head 4 mm; Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Mounting support

Plate; Rail

Standards

CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1; IEC 60947-5-1; UL 60947-4-1

Product certifications

UL; CSA; CCC; EAC; UKCA; CB; DNV-GL; RINA; BV; LROS (Lloyds register of shipping)

IP degree of protection

IP20 front face conforming to IEC 60529

Permissible ambient air temperature around the device

-40…60 °C; 60…70 °C with derating

Operating altitude

0...3000 m

Fire resistance

850 °C conforming to IEC 60695-2-1

Flame retardance

V1 conforming to UL 94

Mechanical robustness

Vibrations contactor open (2 Gn, 5...300 Hz) ; Vibrations contactor closed (3 Gn, 5...300 Hz) ; Shocks contactor open (8 Gn for 11 ms) ; Shocks contactor closed (10 Gn for 11 ms)

Height

127 mm

Width

96 mm

Depth

196 mm

Product weight

2.91 kg

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.90
