Connection.for Cablef. Horizontal NSX250 3P P
Pricing
Request a quote
We reply within 24 hours
Product Description

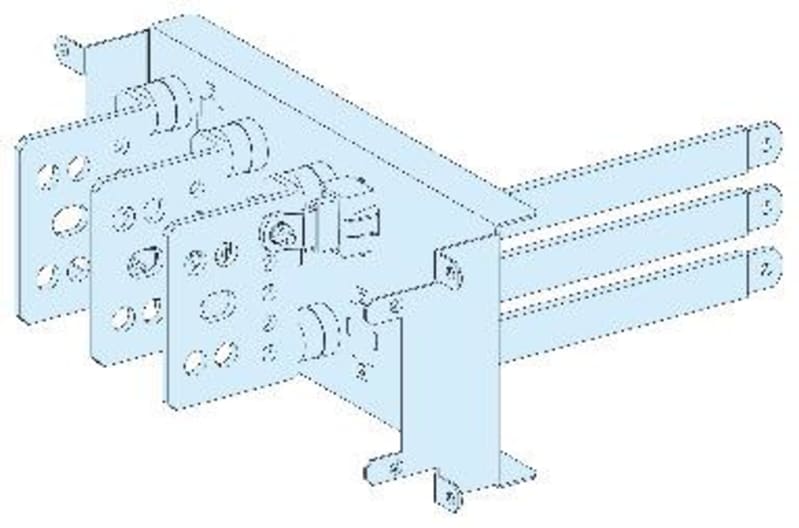

Schneider Electric LVS04425 Connection for cable compartment for fast-horizontal mounted NSX100-250 3P -PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04425
- EAN / GTIN
- 3606481867513
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection transfer assembly
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- connection transfer assembly
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Installed device
- ComPact: fixed NSX100...160 without earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX250 without earth leakage protection - control: toggle horizontal installation
- [Ie] rated operational current
- 250 A
- Busbar cross section
- 20 x 3 mm
- Height
- 150 mm
- Width
- 350 mm
- Product weight
- 4.04 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle horizontal 3P 1 direct 3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 27
- Warranty (in months)
- 18
- Depth
- 400 mm
- With cover
- No
- Max. rated current
- 250 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867513
- SAP 1200547110
- Code 82879243
